problem 4: For the retaining wall shown, Determine a. the active lateral earth pressure distribution b....

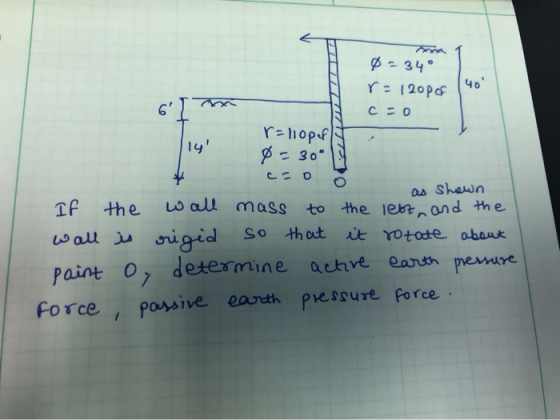

problem 4: For the retaining wall shown, Determine a. the active lateral earth pressure distribution b. the passive lateral earth pressure distribution c. the magnitude and location of the active lateral force on the wall d. the magnitude and location of the passive lateral force on the wall e. the depth of crack from the surface [use Rankine method] Ignore hydrostatic pressure. y 110 pcf p 12, C 420 psf 30' Y 110 pcf φ 100 C 500 psf Y...
1 Calculate the factor of safety against overturning and sliding for the concrete retaining wall ...
1 Calculate the factor of safety against overturning and sliding for the concrete retaining wall shown in the figure below, without taking into consideration the passive earth pressure. (50 Points) Assume that 115 lbs/cf unit weight of soil: unit weight of concrete: 150 lbs/cf angle of internal friction: 30 coefficient of friction: 0.350 0° B: 14 5' 2" Ha 14 2.5 Compaction (Soils engineering uses the symbol ys for dry density and uses the term dry unit weight. In the...
M,R a = 0 14. A body consisted of an uniform rod of mass m and length L, and a disk of mass M and radius R can rotate a...
M,R a = 0 14. A body consisted of an uniform rod of mass m and length L, and a disk of mass M and radius R can rotate about the axis z. At the beginning the body is in the horizontal position and rests. On the body acts only the gravity force. Determine the linear momentum P, and the angular momentum K relatively to point O when the body is in the vertical position, as shown. m. X P2=?...
Problem 2 (60 points) A gravity wall with granular backfill and inclined surface is shown in...
Problem 2 (60 points) A gravity wall with granular backfill and inclined surface is shown in Fig. 2. The friction angles between the backfill and the wall (8) -20°, and the soil and base of the wall (n) - 15'. The adhesion between the soil and the base of the wall (C)-110 psf. (B-5 ft) Je=50 2 ft inclination angle H 15 ft Gravity Wall Granular backfill 0=320 y = 115 pcf y = 150 pcf Base Soil Ca =...
mass weighing W pounds stretches a spring 7 foot and stretches a different spring foot. The two springs are attached in series and the mass is then attached to the double spring as shown in th...
mass weighing W pounds stretches a spring 7 foot and stretches a different spring foot. The two springs are attached in series and the mass is then attached to the double spring as shown in the figure below. (a) A rigid suppont that the motion is free and that there is no damping force present. Determine the equation of motion if the mass is initially released at a point 1 foot below the equlbrium postion with a downward velocity of...
Which solution is correct the question is same Practice Problem #3 For the retaining wall shown...
Which solution is correct the question is same

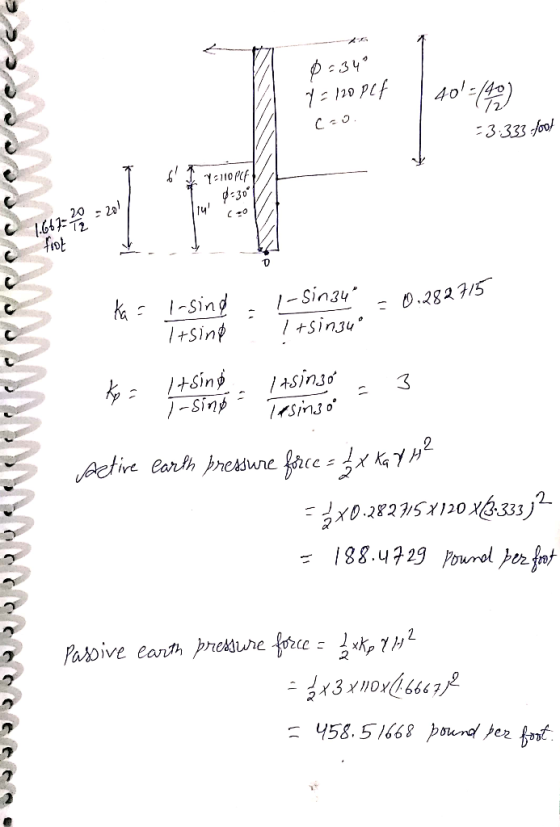

Practice Problem #3 For the retaining wall shown in Figure 13.19a, determine the force per unit length of the wall for Rankine's active state. Also find the location of the resultant. y = 16 kN/m = 30 d' = 0 Groundwater table Y = 18 kNm = 35° 0% = 7zK, -20'/K. 20 Ø 1:32 Answer 1 of 1 D + Ramkine ra' active Pressure y z k-2 - SKA Po or...
A yo-yo of mass m and radius R is placed on a horizontal surface as shown. A massless string is w...
A yo-yo of mass m and radius R is placed on a horizontal surface as shown. A massless string is wrapped around an axle of radius r. The string will be pulled horizontally to the right as shown with a force of constant magnitude F. There is sufficient friction (f) between the surface and the yo-yo for the yo-yo to roll without slipping. Assume that the moment of inertia of the yo-yo about its rotation axis is approximatelyI (1/2)mR2. Draw...
just follow the r which is 22 just follow thw w =4 this subject is fluids...
just follow the r which is 22
just follow thw w =4
this subject is fluids
pls answer both question
QUESTION 2 [20 MARKSI A quarter circular gate with radius R (in meter) and length L (in meter) holds water from a dam and is hinged at point B as shown in Figure 2. R is the right digit (in the ones' place) of your age in 2020. L is the left digit (in the tens' place) of your age...
MR A pulley of mass 3M and radius R is mounted on ftictionless bearings and supported...
MR A pulley of mass 3M and radius R is mounted on ftictionless bearings and supported by a stand of mass 4M at rest on a table as shown to the right. The rotational inertia of this pulley about its axis is (3/2)MR2. Passing over the pulley is a massless cord supporting a block of mass M on the left and a block of mass 2M on the right. The cord does not slip on the pulley, so after the...
7. a) A 10 m high retaining wall supports a fully drained clay soil with a...
7. a) A 10 m high retaining wall supports a fully drained clay soil with a horizontal surface. The soil properties are: y = 18 kN/m²: =25° and c=4 kN/m2. Sketch the distribution of lateral earth pressure acting on the back of the wall, showing all salient values and the depth of the tension zone. Use Rankine's formula as expressed in familiar symbols below Pa = Kath-2c'tan 45º - (10 marks) (b) Determine the horizontal active thrust on the 7.5...
problem 4: For the retaining wall shown, Determine a. the active lateral earth pressure distribution b. the passive lateral earth pressure distribution c. the magnitude and location of the active lateral force on the wall d. the magnitude and location of the passive lateral force on the wall e. the depth of crack from the surface [use Rankine method] Ignore hydrostatic pressure. y 110 pcf p 12, C 420 psf 30' Y 110 pcf φ 100 C 500 psf Y...
1 Calculate the factor of safety against overturning and sliding for the concrete retaining wall shown in the figure below, without taking into consideration the passive earth pressure. (50 Points) Assume that 115 lbs/cf unit weight of soil: unit weight of concrete: 150 lbs/cf angle of internal friction: 30 coefficient of friction: 0.350 0° B: 14 5' 2" Ha 14 2.5 Compaction (Soils engineering uses the symbol ys for dry density and uses the term dry unit weight. In the...
M,R a = 0 14. A body consisted of an uniform rod of mass m and length L, and a disk of mass M and radius R can rotate about the axis z. At the beginning the body is in the horizontal position and rests. On the body acts only the gravity force. Determine the linear momentum P, and the angular momentum K relatively to point O when the body is in the vertical position, as shown. m. X P2=?...
Problem 2 (60 points) A gravity wall with granular backfill and inclined surface is shown in Fig. 2. The friction angles between the backfill and the wall (8) -20°, and the soil and base of the wall (n) - 15'. The adhesion between the soil and the base of the wall (C)-110 psf. (B-5 ft) Je=50 2 ft inclination angle H 15 ft Gravity Wall Granular backfill 0=320 y = 115 pcf y = 150 pcf Base Soil Ca =...
mass weighing W pounds stretches a spring 7 foot and stretches a different spring foot. The two springs are attached in series and the mass is then attached to the double spring as shown in the figure below. (a) A rigid suppont that the motion is free and that there is no damping force present. Determine the equation of motion if the mass is initially released at a point 1 foot below the equlbrium postion with a downward velocity of...
Which solution is correct the question is same
Practice Problem #3 For the retaining wall shown in Figure 13.19a, determine the force per unit length of the wall for Rankine's active state. Also find the location of the resultant. y = 16 kN/m = 30 d' = 0 Groundwater table Y = 18 kNm = 35° 0% = 7zK, -20'/K. 20 Ø 1:32 Answer 1 of 1 D + Ramkine ra' active Pressure y z k-2 - SKA Po or...
A yo-yo of mass m and radius R is placed on a horizontal surface as shown. A massless string is wrapped around an axle of radius r. The string will be pulled horizontally to the right as shown with a force of constant magnitude F. There is sufficient friction (f) between the surface and the yo-yo for the yo-yo to roll without slipping. Assume that the moment of inertia of the yo-yo about its rotation axis is approximatelyI (1/2)mR2. Draw...
just follow the r which is 22
just follow thw w =4
this subject is fluids
pls answer both question
QUESTION 2 [20 MARKSI A quarter circular gate with radius R (in meter) and length L (in meter) holds water from a dam and is hinged at point B as shown in Figure 2. R is the right digit (in the ones' place) of your age in 2020. L is the left digit (in the tens' place) of your age...
MR A pulley of mass 3M and radius R is mounted on ftictionless bearings and supported by a stand of mass 4M at rest on a table as shown to the right. The rotational inertia of this pulley about its axis is (3/2)MR2. Passing over the pulley is a massless cord supporting a block of mass M on the left and a block of mass 2M on the right. The cord does not slip on the pulley, so after the...
7. a) A 10 m high retaining wall supports a fully drained clay soil with a horizontal surface. The soil properties are: y = 18 kN/m²: =25° and c=4 kN/m2. Sketch the distribution of lateral earth pressure acting on the back of the wall, showing all salient values and the depth of the tension zone. Use Rankine's formula as expressed in familiar symbols below Pa = Kath-2c'tan 45º - (10 marks) (b) Determine the horizontal active thrust on the 7.5...
