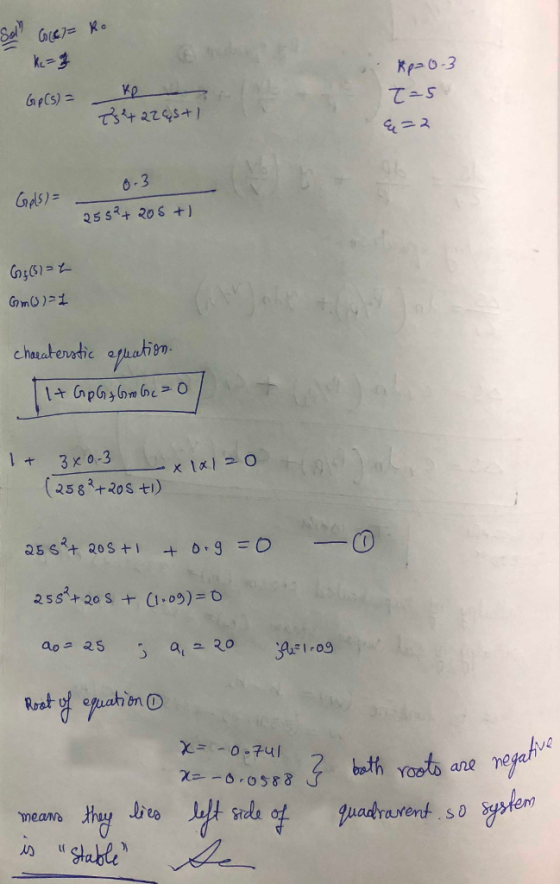

Using the characteristic equation, determine the dynamic behavious of a P-only controller with Kc equal to 3 applied to a second order process (Kp = 0.3, taun = 5, zeta =2). Assume Gs(s) and Ga(s) are equal to unity.
Using the characteristic equation, determine the dynamic behavious of a P-only controller with Kc equal to...
show steps please
10 A second-order open-loop system with transfer function G(s) = is to be $2+45+10 controlled with unity negative feedback. (a) Derive the error transfer functions E(s) of the closed-loop system subjected to a unit step input, when using a P controller and a PI controller, respectively, in terms P control gain kp, and PI control gains kp and ki, respectively. [7] (b) Determine the steady-state errors in (a). Briefly comment on the differences in control performance by...
I am stuck on how to create the transfer function to
be suitable for a bide plot, then actually plotting the Bode
diagram
Question 3 A third order process is to be controlled by a proportional controller (Kp) and is to havea unity feedback closed loop arrangement. The process consists of three first order lags that have the following parameters GP1-1s+1) GP2 8/(s+2) GP3 5(s+0.2) A) Draw the system closed block diagram 3 marks B) Using the Log-Linear graph paper...
6 and controller C(s), as shown in the Consider a unity-feedback control system with plant G(s)- following figure. Reference Error Controller Plant r(t) e(t) u(t) y(t) C(s) G(s) [5] (a) Determine the poles, zeros, order, type, relative degree, and de gain of the plant G(s) and show [5] (b) Can a P controller C(s)Kp stabilize the plant G(s)? If so, find the values of Kp that are [4] (c) Show using the Final Value Theorem that the system with the...
A second-order process is described by its transfer function G(s) = (s+1)(843) and a PI controller by Consider feedback control with unit feedback gain as shown in Figure 1 A disturbance D(s) exists, and to achieve zero steady-state error, a small integral component is applied. Technical limitations restrict the controller gain kp to values of 0.2 or less. The goal is to examine the influence of the controller parameter k on the dynamic response. D(s) Controller Process X(s) Y(s) Figure...
PROBLEM 4 Suppose that a system is shown in Figure 4. There are three controllers that might be incorporated into this system. 1. Ge (s)-K (proportional (P) controller) 2. GS)K/s (integral (I) controller) 3. G (s)K(1+1/s) (proportional, integral (PI) controller) The system requirements are T, < 10 seconds and P0 10% for a unit step response. (a) For the (P) controller, write a piece of MATLAB code to plot root locus for 0<K<,and find the K value so that the...
Using MATLAB. We want to control output(y) using PID control in Kds? +Kps+Ki C(s) S Input(r) is a magnitude1 step. Plant is given by 1 (s+1)(3+2)(s+5 ) controller plant + 14 y C(s) P(S) a) Calculate Closed Loop characteristics and steady-state error(unity feedback and Kp=1, Kd=1, Ki=0)) 2.Using automatic PID tuning function, reduce steady-state error=0 and report Kp=?, Kd=? And Ki=?
Lag Compensator Design Using Root-Locus 2. Consider the unity feedback system in Figure 1 for G(s)- s(s+3(s6) Design a lag compensation to meet the following specifications The step response settling time is to be less than 5 sec. . The step response overshoot is to be less than 17% . The steady-state error to a unit ramp input must not exceed 10%. Dynamic specifications (overshoot and settling time) can be met using proportional feedback, but a lag compensator is needed...
, The equilibrium constant, Kc, is calculated using molar concentrations. For gaseous reactions another form of the equilibrium constant, Kp, is calculated from partial pressures instead of concentrations. These two equilibrium constants are related by the equation Part A Kp = K.(RT)An For the reaction 3A(g) + 2B(g) = C(g) where R=0.08206 L.atm/(K·mol), T is the absolute temperature, and An is the change in the number of moles of gas (sum moles products - sum moles reactants). For example, consider...
Assignment 3: Frequency Domain Controller Design using Bode-plots 2 Augment the open loop plant G(s) = RS), with sim- ple feedback an a dynamic compensator to meet the following specifications: (a) a cross over frequency of we 3 [rad/sec] (b) a phase margin better than 45. (c) a steady state error when tracking a step input < 5%. in H(s) G(sRecall that Bode plots are applied to the loop gain. out
Assignment 3: Frequency Domain Controller Design using Bode-plots 10 2 Augment the open loop plant G() +27 with sim ple feedback an a dynamic compensator to meet the following specifications: (a) a cross over frequency of w 3 [rad/sec). (b) a phase margin better than 45o (c) a steady state error when tracking a step input < 5%. in H(s) G(s) Recall that Bode plots are applied to the loop gain. out
