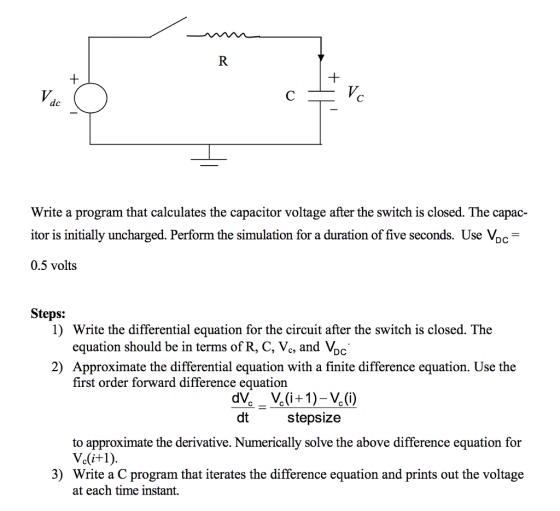

Write a program that calculates the capacitor voltage after the switch is closed. The capac- itor...

Question

Question

engineering Electrical-Engineering

Answer 1

Similar Homework Help Questions

5) For the RLC circuit, assume that the capacitor is initially charged and after the switch...

5) For the RLC circuit, assume that the capacitor is initially charged and after the switch is closed, show that the differential equation for the current is: d1 Rd 1 dt Ld LC (Hint: Start by writing voltages for each component VR, VL & Vc, and add them to zero (using Kirchhoff's voltage rule) then differentiate).
For the circuit shown, find the following: a) v(0+), the voltage across the capacitor right after...

For the circuit shown, find the following: a) v(0+), the voltage across the capacitor right after the switch closes. b) v), the voltage across the capacitor after the switch has been closed for a long time. c) v(T), the voltage across the capacitor after one time constant. 2. 3 S2 I(t) 12 V+ 6 Ω 0.5 F u(t) 3. For the circuit above, write the differential equation for t > 0.
Initially the capacitor is uncharged, but after the switch is closed, it quickly starts charging. (a)...

Initially the capacitor is uncharged, but after the switch is closed, it quickly starts charging. (a) UsingKirchhoff’sLaws,writedownadifferentialequationfor?(?). ______ / 20 (b) Using the method “separation of variables” to solve the differential equation of part (a), and show that the solution can be written as ?(?) = ?????1 − ???/?? (c) Determine an expression for time constant ? in terms of ?, ??, ??, and ?. (d) Determine an expression for ???? in terms of ?, ??, ??, and ?. (e)...
