A string of mass 100g and length 2m is under a tension of 200 N. Find...

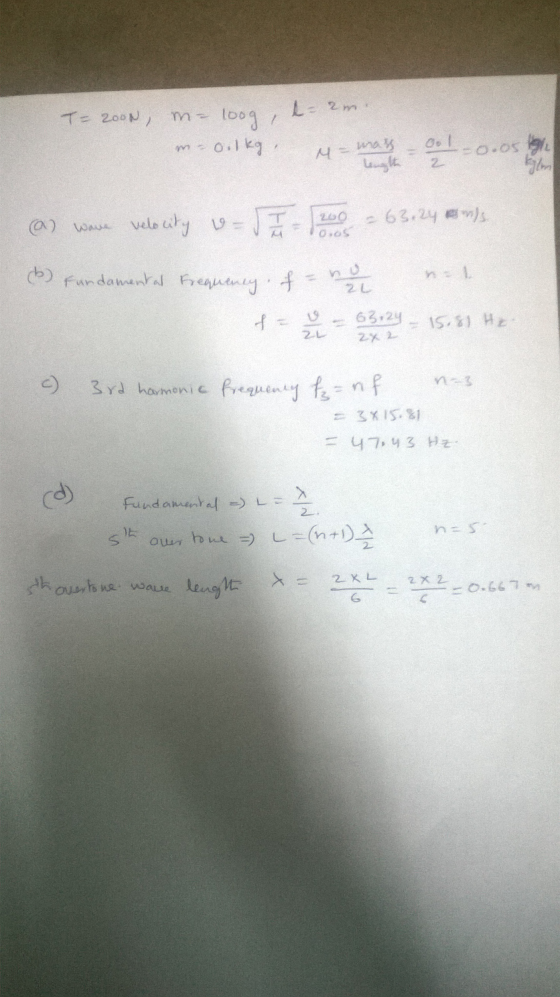

A string of mass 100g and length 2m is under a tension of 200 N. Find its (a) wave velocity, (b) fundamental frequency, (c) 3rd harmonic frequency, and (d) 5th overtone wavelength.
Homework Answers
Add Answer to:
A string of mass 100g and length 2m is under a tension of 200 N.
Find...
A string of mass 100 g and length 2 m is under a tension of 200...
A string of mass 100 g and length 2 m is under a tension of 200 N. Find its (a) wave velocity, (b) fundamental frequency, (c) 3rd harmonic frequency, and (d) 5th overtone wavelength.
8. A string with mass 1 g has a length of 0.5 m, and is held...
8. A string with mass 1 g has a length of 0.5 m, and is held fixed at either end under a tension of 200 N. a) What is the speed of a wave on the string? b) What is the fundamental wavelength of the string? c) What is the frequency of the third harmonic? d) What is the frequency of the second overtone?
Suppose on a string of length L=87 cm, tension T=115 N, and mass m the fundamental...
Suppose on a string of length L=87 cm, tension T=115 N, and mass m the fundamental (1st Harmonic) has a frequency of f1= 500.0 Hz. a) What is the wavelength of the fundamental? b) What is the speed of propagation of the wave in the string? c) What is the mass m of the string? d) In order to tune the string to a new fundamental frequency of 505 Hz, how much does the tension need to change? Will it...
A rope has a length of 5.00 m between its two fixed points and a mass per unit length (linear density) of 40.0 g / m. if the string vibrates at a fundamental frequency of 20 Hz. a) Calculate the tension of the string. b) Calculate the frequency and wavele
A rope has a length of 5.00 m between its two fixed points and a mass per unit length (linear density) of 40.0 g / m. if the string vibrates at a fundamental frequency of 20 Hz. a) Calculate the tension of the string. b) Calculate the frequency and wavelength of the second harmonic (n = 2). c) Calculate the frequency and wavelength of the third harmonic. d) the speed of propagation of the wave.
A string with a mass density ? = 4.50×10-3kg/m is under a tension of F =...
A string with a mass density ? =
4.50×10-3kg/m is under a tension of F
= 224 N and is fixed at both ends. One of its resonance
frequencies is 178.0 Hz. The next higher resonance
frequency is 222.5 Hz. a)What is the fundamental frequency
of this string?
D)Now, suppose the same string is detached at one end and
connected by a ring to a frictionless post, so that it can move
freely. Find the wavelength of the first (fundamental)...
In order to determine the mass per unit length of a string, the string was placed...
In order to determine the mass per unit length of a string, the string was placed under tension and a standing wave was excited. The items that were measured directly or were known were: A. The intermodal distance, the frequency and the tension B. The wavelength, the frequency and the velocity of wave C. The velocity of the wave, the tension and the length of the string D. The density of the string, the wavelength and tension
A taut string is under a tension of 40.0 N and a standing wave is generated...
A taut string is under a tension of 40.0 N and a standing wave is generated on it whose oscillation amplitude 5.0 cm with a frequency of 60 Hz. The liner mass density of the wire is 5.00 g. a) What is the velocity of propagation of the wave on the string? b) we observe the third harmonic, what is the length of the string? Draw the figure. c) What is angular fluency and wave number?
Name: - Harmonics Worksheet Wave on a String One end of a string with a linear...
Name: - Harmonics Worksheet Wave on a String One end of a string with a linear mass density of 1.45 . 10-2 kg/m is tied to a mechanical vibrator that can oscillate up and down. The other end hangs over a pulley 80 cm away. The mass hanging from the free end is 3 kg. The left end is oscillated up and down, which will create a standing wave pattern at certain frequencies. Draw the first five standing wave patterns...
You haw a uniform string with a mass of 0.0130 kg and length 1.75 m under...
You haw a uniform string with a mass of 0.0130 kg and length 1.75 m under a tension 10.0 N. The string is fixed at both ends, and is vibrating at its fourth resonant frequency (i.e. the fourth harmonic). What is the wavelength of the standing wave in the string? What is the frequency?
-. A metal wire is 0.400 m long and is under a Tension force of 75.0N....
-. A metal wire is 0.400 m long and is under a Tension force of 75.0N. a) What is the mass per unit length if it has a fundamental frequency of 440 Hz? b) How fast does a sound wave travel in the wire? c) What are the frequencies of the 2nd, 3rd, and 7th harmonics? d) What are the wavelengths for the 1st, 2nd, and 7th harmonics? e) What new tension must you exert on the string for the...
A string of mass 100 g and length 2 m is under a tension of 200 N. Find its (a) wave velocity, (b) fundamental frequency, (c) 3rd harmonic frequency, and (d) 5th overtone wavelength.
A string with a mass density ? =
4.50×10-3kg/m is under a tension of F
= 224 N and is fixed at both ends. One of its resonance
frequencies is 178.0 Hz. The next higher resonance
frequency is 222.5 Hz. a)What is the fundamental frequency
of this string?
D)Now, suppose the same string is detached at one end and
connected by a ring to a frictionless post, so that it can move
freely. Find the wavelength of the first (fundamental)...
A taut string is under a tension of 40.0 N and a standing wave is generated on it whose oscillation amplitude 5.0 cm with a frequency of 60 Hz. The liner mass density of the wire is 5.00 g. a) What is the velocity of propagation of the wave on the string? b) we observe the third harmonic, what is the length of the string? Draw the figure. c) What is angular fluency and wave number?
Name: - Harmonics Worksheet Wave on a String One end of a string with a linear mass density of 1.45 . 10-2 kg/m is tied to a mechanical vibrator that can oscillate up and down. The other end hangs over a pulley 80 cm away. The mass hanging from the free end is 3 kg. The left end is oscillated up and down, which will create a standing wave pattern at certain frequencies. Draw the first five standing wave patterns...
You haw a uniform string with a mass of 0.0130 kg and length 1.75 m under a tension 10.0 N. The string is fixed at both ends, and is vibrating at its fourth resonant frequency (i.e. the fourth harmonic). What is the wavelength of the standing wave in the string? What is the frequency?
-. A metal wire is 0.400 m long and is under a Tension force of 75.0N. a) What is the mass per unit length if it has a fundamental frequency of 440 Hz? b) How fast does a sound wave travel in the wire? c) What are the frequencies of the 2nd, 3rd, and 7th harmonics? d) What are the wavelengths for the 1st, 2nd, and 7th harmonics? e) What new tension must you exert on the string for the...
