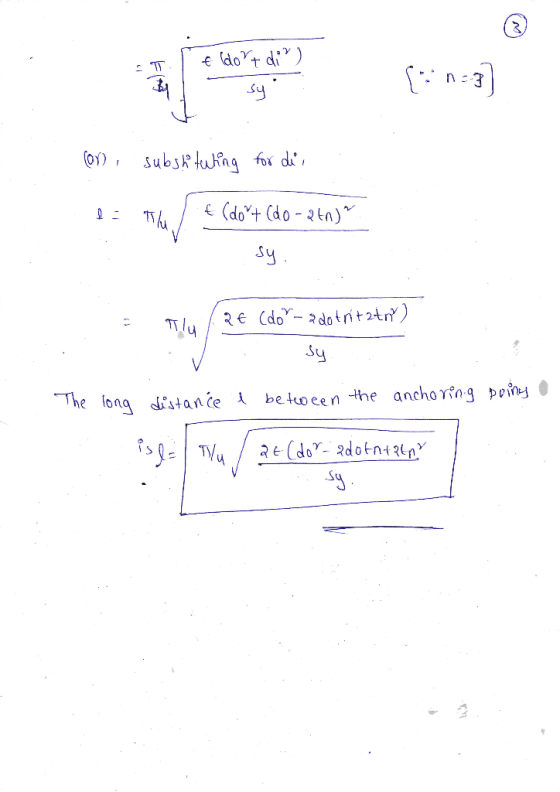

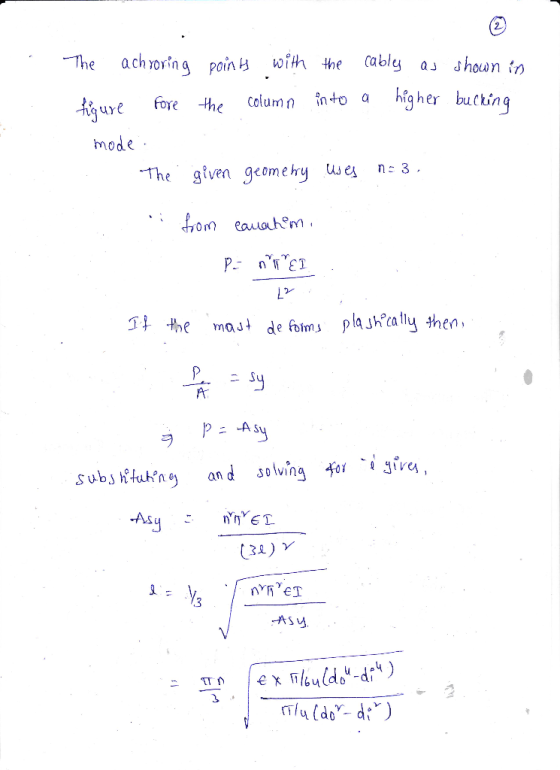

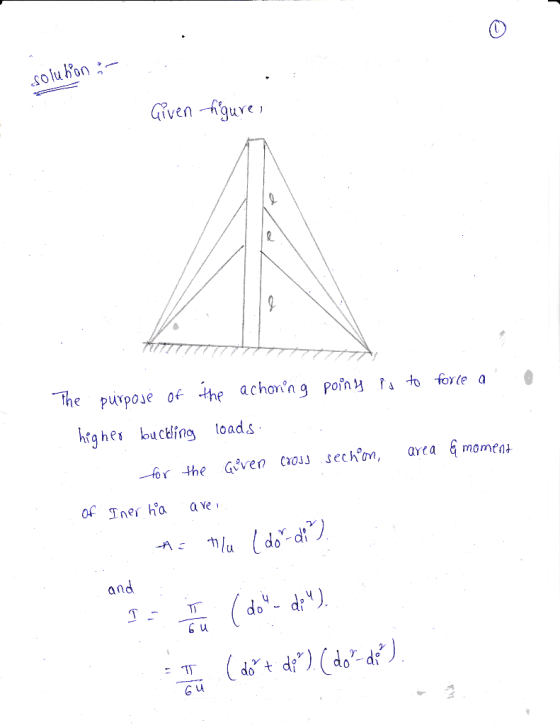

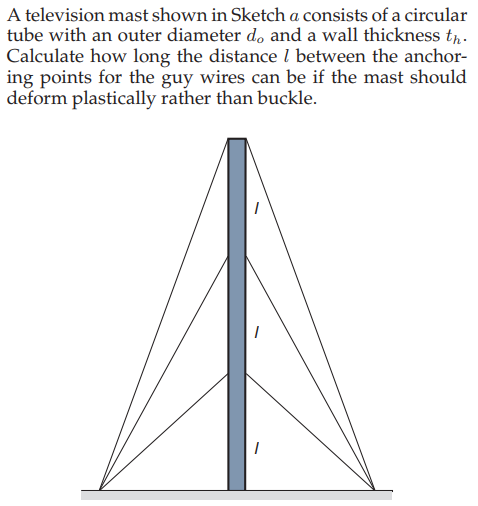

A television mast shown in Sketch a consists of a circular tube with an outer diameter...
The A-36 steel assembly consists of a tube having an outer radius of 1 in. and...
The A-36 steel assembly consists of a tube having an outer radius of 1 in. and a wall thickness of 0.125 in. Using a rigid plate at B, it is connected to the solid 1-in-diameter shaft AB. A torque of T = 220 lb. in. is applied to the tube at this end. The end A of the shaft is fixed supported. Part A Determine the rotation of the tube's end C (Figure 1) Express your answer with the appropriate...
A circular tube with an outside diameter of 3.750 in. and a wall thickness of 0.082...
A circular tube with an outside diameter of 3.750 in. and a wall
thickness of 0.082 in. is subjected to loads Px=1400 lb, Pz=970 lb,
and T=8400 lb⋅in. as shown in the figure. Using a=6.25 in.,
determine the normal and shear stresses that exist at (a) point H
and (b) point K.
Enter the normal and shear stresses and point H. Your answers
must be consistent with the sign conventions for stresses.
Enter the normal and shear stresses and point...
Steam in a heating system flows through a tube whose height (H), outer diameter (D), and...
Steam in a heating system flows through a tube whose height (H), outer diameter (D), and outer surface temperature (T) are 1m, 3m and 120°C respectively. Circular aluminium fins (k = 180 W/m.°C) of outer diameter D, = 6cm and constant thickness t=2mm are attached to the tube as shown in the figure. The space between the fins is 3 mm. Heat is transferred to the surrounding air at 25°C with a heat transfer coefficient of h = 60 W/m².°C....
A circular tube with an outside diameter of 4.375 in. and a wall thickness of 0.077...
A circular tube with an outside diameter of 4.375 in. and a wall thickness of 0.077 in. is subjected to loads P = 1330 lb, P = 980 lb, and T = 8500 lb - in. as shown in the figure. Using a = 5.75 in ., determine the normal and shear stresses that exist at (a) point H and (b) point K. (a) Enter the normal and shear stresses and point H. Your answers must be consistent with the...
Steam in a heating system flows through a 1-m long tube whose outer diameter is DI...
Steam in a heating system flows through a 1-m long tube whose outer diameter is DI = 4 cm and whose walls are maintained at a temperature of T, = 120 °C. Circular fins (k = 46 W/m. °C) of outer diameter D2 = 8 cm and constant thickness t= 3 mm are attached to the tube, as shown in the figure. The space between the fins is 7 mm. Heat is transferred to the surrounding air at T =...
A circular tube with an outside diameter of 3.875 in. and a wall thickness of 0.078 in. is subjected to loads Pr = 1300...
A circular tube with an outside diameter of 3.875 in. and a wall thickness of 0.078 in. is subjected to loads Pr = 1300 lb, P, = 1000 lb, and T = 8350 lb in. as shown in the figure. Using a 5.25 in . determine the normal and shear stresses that exist at (a) point H and (b) point K. (a) Enter the normal and shear stresses and point H. Your answers must be consistent with the sign conventions...
3. A beam with a hollow circular cross section of outer diameter D and inner diameter...
3. A beam with a hollow circular cross section of outer diameter D and inner diameter d. The length Lis fixed at a wall. Consider the following loading conditions, all applied to the beam at the midpoint of length L. For each loading scheme state determine the magnitude of that stress in terms of the variables given in the problem). (5 points) i. ii. iii. iv. V. Normal stress due to axial load F Shear stress due to torque T...
A circular tube with an outside diameter of 4.375 in. and a wall thickness of 0.081 in. is subjected to loads P determi...
A circular tube with an outside diameter of 4.375 in. and a wall thickness of 0.081 in. is subjected to loads P determine the normal and shear stresses that exist at (a) point H and (b) point K. 1320 lb, P 850 lb, and T 8330 lb in. as shown in the figure. Using a 6.50 in K (a) Enter the normal and shear stresses and point H. Your answers must be consistent with the sign conventions for stresses. psi...
A water heater consists of a copper tube that carries water through hot gas in a...
A water heater consists of a copper tube that carries water through hot gas in a furnace, as shown in Fig. 1. hot gas at T, = 500° th=0.033 inch h, = 25 W/m2K Poytube = 0.25 inch water at Tv = 30° h = 500 W/m2K kube= 300 W/m-K Figure 1: Copper tube in a water heater. The copper tube has an outer radius, ro,tube = 0.25 inch and a tube wall thickness of th=0.033 inch. The conductivity of...
circular tube with an outside diameter of 4.250 in. and a wall thickness of 0.089 in. is subjected to loads P in., dete...
circular tube with an outside diameter of 4.250 in. and a wall thickness of 0.089 in. is subjected to loads P in., determine the normal and shear stresses that exist at (a) point H and (b) point K. 1400 lb, P 980 lb, and T 8340 lb in. as shown the figure. Using a5.00 (a) Enter the normal and shear stresses and point H. Your answers must be consistent with the sign conventions for stresses. psi y= psi psi (b)...
The A-36 steel assembly consists of a tube having an outer radius of 1 in. and a wall thickness of 0.125 in. Using a rigid plate at B, it is connected to the solid 1-in-diameter shaft AB. A torque of T = 220 lb. in. is applied to the tube at this end. The end A of the shaft is fixed supported. Part A Determine the rotation of the tube's end C (Figure 1) Express your answer with the appropriate...
A circular tube with an outside diameter of 3.750 in. and a wall
thickness of 0.082 in. is subjected to loads Px=1400 lb, Pz=970 lb,
and T=8400 lb⋅in. as shown in the figure. Using a=6.25 in.,
determine the normal and shear stresses that exist at (a) point H
and (b) point K.
Enter the normal and shear stresses and point H. Your answers
must be consistent with the sign conventions for stresses.
Enter the normal and shear stresses and point...
Steam in a heating system flows through a tube whose height (H), outer diameter (D), and outer surface temperature (T) are 1m, 3m and 120°C respectively. Circular aluminium fins (k = 180 W/m.°C) of outer diameter D, = 6cm and constant thickness t=2mm are attached to the tube as shown in the figure. The space between the fins is 3 mm. Heat is transferred to the surrounding air at 25°C with a heat transfer coefficient of h = 60 W/m².°C....
A circular tube with an outside diameter of 4.375 in. and a wall thickness of 0.077 in. is subjected to loads P = 1330 lb, P = 980 lb, and T = 8500 lb - in. as shown in the figure. Using a = 5.75 in ., determine the normal and shear stresses that exist at (a) point H and (b) point K. (a) Enter the normal and shear stresses and point H. Your answers must be consistent with the...
A circular tube with an outside diameter of 3.875 in. and a wall thickness of 0.078 in. is subjected to loads Pr = 1300 lb, P, = 1000 lb, and T = 8350 lb in. as shown in the figure. Using a 5.25 in . determine the normal and shear stresses that exist at (a) point H and (b) point K. (a) Enter the normal and shear stresses and point H. Your answers must be consistent with the sign conventions...
3. A beam with a hollow circular cross section of outer diameter D and inner diameter d. The length Lis fixed at a wall. Consider the following loading conditions, all applied to the beam at the midpoint of length L. For each loading scheme state determine the magnitude of that stress in terms of the variables given in the problem). (5 points) i. ii. iii. iv. V. Normal stress due to axial load F Shear stress due to torque T...
A circular tube with an outside diameter of 4.375 in. and a wall thickness of 0.081 in. is subjected to loads P determine the normal and shear stresses that exist at (a) point H and (b) point K. 1320 lb, P 850 lb, and T 8330 lb in. as shown in the figure. Using a 6.50 in K (a) Enter the normal and shear stresses and point H. Your answers must be consistent with the sign conventions for stresses. psi...
A water heater consists of a copper tube that carries water through hot gas in a furnace, as shown in Fig. 1. hot gas at T, = 500° th=0.033 inch h, = 25 W/m2K Poytube = 0.25 inch water at Tv = 30° h = 500 W/m2K kube= 300 W/m-K Figure 1: Copper tube in a water heater. The copper tube has an outer radius, ro,tube = 0.25 inch and a tube wall thickness of th=0.033 inch. The conductivity of...
circular tube with an outside diameter of 4.250 in. and a wall thickness of 0.089 in. is subjected to loads P in., determine the normal and shear stresses that exist at (a) point H and (b) point K. 1400 lb, P 980 lb, and T 8340 lb in. as shown the figure. Using a5.00 (a) Enter the normal and shear stresses and point H. Your answers must be consistent with the sign conventions for stresses. psi y= psi psi (b)...
