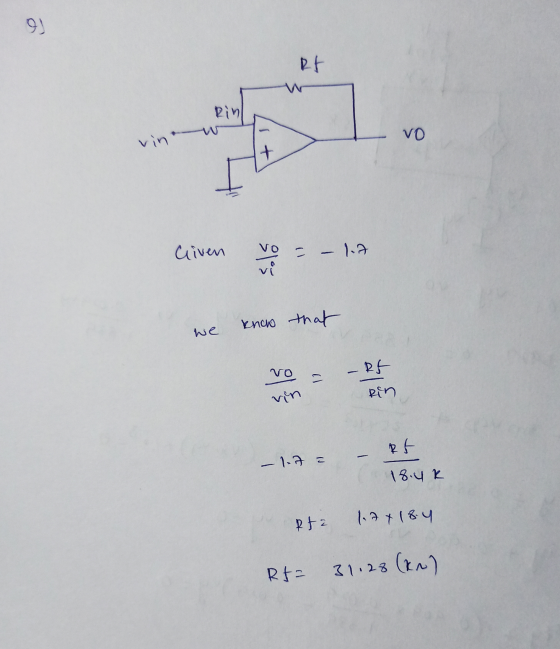

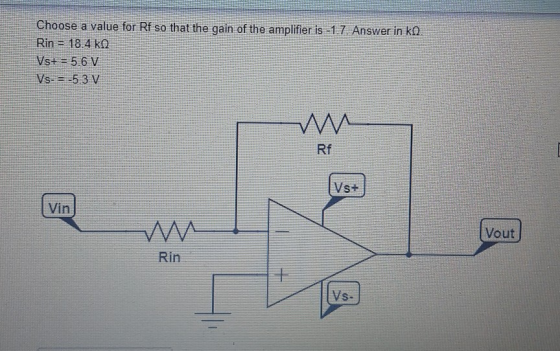

Choose a value for Rf so that the gain of the amplifier is -1.7 Answer in...
For the following circuits, find out the type of the amplifier, the voltage gain, Av, and its related input resistance, rin and output resistance rout- M1 B1 M1 M2 M1 IN B1 rout rout VOUT VOUT VOUT r...
For the following circuits, find out the type of the amplifier, the voltage gain, Av, and its related input resistance, rin and output resistance rout- M1 B1 M1 M2 M1 IN B1 rout rout VOUT VOUT VOUT rout Q3 Q2 B1 VIN VIN M1 Vai B1 M1 B1 M2 VOUT rin VOUT Q2 VIN Q3
For the following circuits, find out the type of the amplifier, the voltage gain, Av, and its related input resistance, rin and output resistance rout-...
Given V1 = 1 Vpp, V2 = 4 Vpp, Vout = 0.82 Vpp and Rf =...
Given V1 = 1 Vpp, V2 = 4 Vpp, Vout = 0.82 Vpp and Rf = 2 kq and that R1, R2 and R3 are all equal, find the value of R1 Input resistor R1 = R2 = R3 = ko. (Round your answer to 2 decimal places) RF Vout OA1 R1 Sm R2 + TL081 L 1 : v2 3 R3 Use phasor techniques to determine the current supplied by the source given that V = 12 <0° v,...
Consider that in the inverting amplifier of the figure, Rin= 2kΩ and that the gain in...
Consider that in the inverting amplifier of the figure, Rin= 2kΩ
and that the gain in closed loop is G=-40
What is the value of Rf?
Rin in 0 out
Blackboard X A wOVIny T0anoer queauoTWaaveUnT0aUrie Question 24 Calculate the power gain (Ap) for the loaded Common...
Blackboard X A wOVIny T0anoer queauoTWaaveUnT0aUrie Question 24 Calculate the power gain (Ap) for the loaded Common Emitter Amplifier below Assume BAC200, Assume re' 16 0 Vcc 15 V R1 66.4 KQ, R2 25.8 KO Rc 3.9 KQ RE1 3300, RE2 1.8 KO, RL 3.54 KO Enter your results. No units. SR1 RC C3 Vcc Vout Vin HH Beta RL Vs R2 RE1 RE2 C2 AMoving to another question will save this response. ww
Blackboard X A wOVIny T0anoer queauoTWaaveUnT0aUrie...
VDD RD RG1 out Vin G2 Figure 3 Design your own common source amplifier based on...
VDD RD RG1 out Vin G2 Figure 3 Design your own common source amplifier based on Figure 3. You need an input resistance Rin 1M2. Make VD 2Voo/3, Vs Voo/3. Use VG 5 [V]. VoD 10 [V] a. Draw the small signal equivalent circuit b. Find RG1, and RG2, and lo c. Choose values of Ro, and Rs d. Find gm, and Av-Vout/Vin
5) Consider the Cascode amplifier shown below. For the NMOS transistors, kn 0.2 mA/V2, Vr,-0.5 V,...
5) Consider the Cascode amplifier shown below. For the NMOS transistors, kn 0.2 mA/V2, Vr,-0.5 V, (W/L)-(W/L)2-5. VDD-GV and IBIAs= 1.0 mA. a) Assuming λ-0 for all transistors, find the required DC gate- source voltages of M1 and M2 (VGsı and VGs2, respectively) BIAS VD out b) Again assuming 0 M2 for all transistors, what is the minimum DC value of VouT for which the amplifier works in high-gain regime? (W/L)2 in M1 For parts c)-f), Assume -0.01 for all...
please help with 1&2 Problem i. Common-Gate Amplifier: Assume kp = 2 mA/V, VTp = -1...
please help with 1&2
Problem i. Common-Gate Amplifier: Assume kp = 2 mA/V, VTp = -1 V.=y=0. Determine the following: (5 pt) 1) Vos and VDS (5 pt) 2) The small-signal parameters, go andro (7.5 pt) 3) Draw small-signal equivalent circuit (7.5 pt) 4) Input Resistance, Rin (7.5 pt) 5) Output Resistance, Rout (15 pt) 6) Small-signal Voltage Gain; A, = Yout +15 V -15 V ima 0 1 ko 50 kn Rout (50 pt) Problem 2. Common-Source Amplifier: Assume...
Calculate the voltage gain (Av) for the loaded Common Emitter Amplifier below: BAC 200 for all...
Calculate the voltage gain (Av) for the loaded Common Emitter Amplifier below: BAC 200 for all transistors. Assume re 15 Q for the CE Amplifier. Ignore re' for the DP Amplifier Vcc 12 V, R1 56 K, R2 10 KQ, R4 22 KQ R3 5.6 KQ, RL 8 RE(CE) 628 0, RE(CC) 330 Rc 3.5 KQ, Enter your results. No units. SR3 R1 RC C3 Vcc C1 Beta Q2a HH Vin Beta Q1 Beta Q2b C4 R4 Vs R2 C2...
11. (5 marks total) A common-emitter amplifier has values of R = 68 k 2, R2...
11. (5 marks total) A common-emitter amplifier has values of R = 68 k 2, R2 = 56 k 2, Rinbase) = 2.1 k 2. The source voltage V, = 35 mV and the source resistance R = 450 22. Determine: Base R, w Base W- Rinas) Riiton = (a) (b) a) (3 marks) the total input resistance Rin(tot) = b) (2 marks) the voltage at the base (V=Vin) V = 9 12. (5 marks total) For the common-emitter amplifier...
1) Explain briefly about the differential amplifier with a neat diagram. (2Marks) ii) Consider the summing...
1) Explain briefly about the differential amplifier with a neat diagram. (2Marks) ii) Consider the summing operational amplifier shown below. The resistances on the inputs are both 50 k12, and the feedback resistance is also 50 k12. If the input signal voltages are 66 mV and -85 mV, determine the output voltage, (2 Marks) R = 502 Roy - 50 kn R250 kn O V-66 m peak V-85 mV peak V. Output voltage ii) The input resistance of an inverting...
For the following circuits, find out the type of the amplifier, the voltage gain, Av, and its related input resistance, rin and output resistance rout- M1 B1 M1 M2 M1 IN B1 rout rout VOUT VOUT VOUT rout Q3 Q2 B1 VIN VIN M1 Vai B1 M1 B1 M2 VOUT rin VOUT Q2 VIN Q3
For the following circuits, find out the type of the amplifier, the voltage gain, Av, and its related input resistance, rin and output resistance rout-...
Given V1 = 1 Vpp, V2 = 4 Vpp, Vout = 0.82 Vpp and Rf = 2 kq and that R1, R2 and R3 are all equal, find the value of R1 Input resistor R1 = R2 = R3 = ko. (Round your answer to 2 decimal places) RF Vout OA1 R1 Sm R2 + TL081 L 1 : v2 3 R3 Use phasor techniques to determine the current supplied by the source given that V = 12 <0° v,...
Consider that in the inverting amplifier of the figure, Rin= 2kΩ
and that the gain in closed loop is G=-40
What is the value of Rf?
Rin in 0 out
Blackboard X A wOVIny T0anoer queauoTWaaveUnT0aUrie Question 24 Calculate the power gain (Ap) for the loaded Common Emitter Amplifier below Assume BAC200, Assume re' 16 0 Vcc 15 V R1 66.4 KQ, R2 25.8 KO Rc 3.9 KQ RE1 3300, RE2 1.8 KO, RL 3.54 KO Enter your results. No units. SR1 RC C3 Vcc Vout Vin HH Beta RL Vs R2 RE1 RE2 C2 AMoving to another question will save this response. ww
Blackboard X A wOVIny T0anoer queauoTWaaveUnT0aUrie...
VDD RD RG1 out Vin G2 Figure 3 Design your own common source amplifier based on Figure 3. You need an input resistance Rin 1M2. Make VD 2Voo/3, Vs Voo/3. Use VG 5 [V]. VoD 10 [V] a. Draw the small signal equivalent circuit b. Find RG1, and RG2, and lo c. Choose values of Ro, and Rs d. Find gm, and Av-Vout/Vin
5) Consider the Cascode amplifier shown below. For the NMOS transistors, kn 0.2 mA/V2, Vr,-0.5 V, (W/L)-(W/L)2-5. VDD-GV and IBIAs= 1.0 mA. a) Assuming λ-0 for all transistors, find the required DC gate- source voltages of M1 and M2 (VGsı and VGs2, respectively) BIAS VD out b) Again assuming 0 M2 for all transistors, what is the minimum DC value of VouT for which the amplifier works in high-gain regime? (W/L)2 in M1 For parts c)-f), Assume -0.01 for all...
please help with 1&2
Problem i. Common-Gate Amplifier: Assume kp = 2 mA/V, VTp = -1 V.=y=0. Determine the following: (5 pt) 1) Vos and VDS (5 pt) 2) The small-signal parameters, go andro (7.5 pt) 3) Draw small-signal equivalent circuit (7.5 pt) 4) Input Resistance, Rin (7.5 pt) 5) Output Resistance, Rout (15 pt) 6) Small-signal Voltage Gain; A, = Yout +15 V -15 V ima 0 1 ko 50 kn Rout (50 pt) Problem 2. Common-Source Amplifier: Assume...
Calculate the voltage gain (Av) for the loaded Common Emitter Amplifier below: BAC 200 for all transistors. Assume re 15 Q for the CE Amplifier. Ignore re' for the DP Amplifier Vcc 12 V, R1 56 K, R2 10 KQ, R4 22 KQ R3 5.6 KQ, RL 8 RE(CE) 628 0, RE(CC) 330 Rc 3.5 KQ, Enter your results. No units. SR3 R1 RC C3 Vcc C1 Beta Q2a HH Vin Beta Q1 Beta Q2b C4 R4 Vs R2 C2...
11. (5 marks total) A common-emitter amplifier has values of R = 68 k 2, R2 = 56 k 2, Rinbase) = 2.1 k 2. The source voltage V, = 35 mV and the source resistance R = 450 22. Determine: Base R, w Base W- Rinas) Riiton = (a) (b) a) (3 marks) the total input resistance Rin(tot) = b) (2 marks) the voltage at the base (V=Vin) V = 9 12. (5 marks total) For the common-emitter amplifier...
1) Explain briefly about the differential amplifier with a neat diagram. (2Marks) ii) Consider the summing operational amplifier shown below. The resistances on the inputs are both 50 k12, and the feedback resistance is also 50 k12. If the input signal voltages are 66 mV and -85 mV, determine the output voltage, (2 Marks) R = 502 Roy - 50 kn R250 kn O V-66 m peak V-85 mV peak V. Output voltage ii) The input resistance of an inverting...
