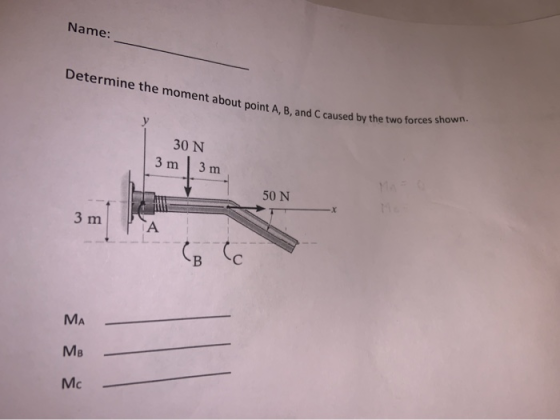

Name: Determine the moment about point A, B, and C caused by the caused by the...

Question

Question

engineering Mechanical-Engineering

Answer 1

Answer #1

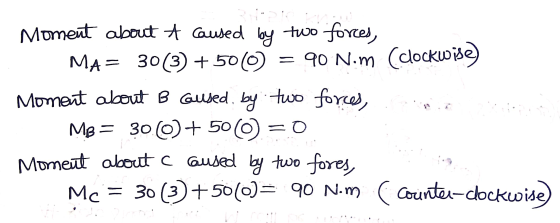

Moment about t caused by two forces, MA= 30(3) +500) = 90 N.m (clockwise Moment about B caused. by two forces, MB = 30 + 500=

Answer 2

Similar Homework Help Questions

(5 pt.) Determine the moment about point A caused by the forces at B and C....

(5 pt.) Determine the moment about point A caused by the forces at B and C. Be sure to indicate the direction of the rotation as clockwise or counterclockwise. (Hint: Break the 2.5kN force into its x & y components first. Which component creates a moment about point A? Which component does not?). 10,kN 2.5 kN +A C45 7.5 m7.5 m 2. (5 pt.) Determine the magnitude and location of the resultant of the parallel force system. Locate the resultant...
Calculate the moment about a point C caused by the forces acting at the points A&B...

Calculate the moment about a point C caused by the forces acting at the points A&B respectively (engineering)? Can somebody please help me with these 2 problems? Thanks so much!! Calculate the moment about a point CC – 4, 5, 7) ft caused by the forces F1 = – 4i + 4% – 8k lb and F, = – 3i – 7j + 7k lb acting at the points AC – 2, – 4, – 1) ft and B(2, 2,...
Calculate the moment about a point C( – 5,5,6) ft caused by the forces F1 =...

Calculate the moment about a point C( – 5,5,6) ft caused by the forces F1 = 3i + 4j – 8k lb and F2 = 0i – 4j + 7k lb acting at the points A6, – 8,1) ft and B(6, 0, 4) ft, respectively. Mc = -81 xi + 4 x 3 + -39 x k) lb · ft

Determine the moment of each individual force about (a) point A and (b) point B. 3.1F...

Determine the moment of each individual force about (a) point A and (b) point B. 3.1F 1.4b y- 2.1F . 2.5b 1.9b Answers: 2.17: MA=( i k) Fb k) Fb MB = 1 i 3.17: MA=1 i k) Fb MB=( k) Fb
Calculate the moment about a point C( – 5, 6, 3) ft caused by the forces...

Calculate the moment about a point C( – 5, 6, 3) ft caused by the forces F1 4i + 4j – 5k lb and F2 = - 4i – 4; + 7k lb acting at the points A(1, 1,6) ft and B( – 2, - 4, -1) ft, respectively. Mc =( i + j+ k) lb. ft Submit Question
For the figure, what is the moment caused by the two forces F, and FAB about...

For the figure, what is the moment caused by the two forces F, and FAB about a line starting at point P and extending to point Q? Use a Cartesian vector approach to solve this problem Hint: it would be easier to find the resultant vector first, but it is not necessary Given: - F = (334i + 540; -838 k) lb • FAB = 3.1 kip - Point Q has coordinates of (-0.167,3.500,0.417) ft Note In the US Customary...

For the figure, what is the moment caused by the two forces F1 and Fall about...

For the figure, what is the moment caused by the two forces F1 and Fall about a line starting at point P and extending to point Q? Use a Cartesian vector approach to solve this problem. Hint: It would be easier to find the resultant vector first, but it is not necessary Given: F1 F1= (2881 +691j -759 k) lb FAB = 2.7 kip • Point Q has coordinates of: (-0.250,3.750,-1.583) ft. A 4'-2" Note: In the US Customary (also...
Determine the moment of each of the three forces about point A. Fi 250 N 30...

Determine the moment of each of the three forces about point A. Fi 250 N 30 2 300 N 60° 4 m F 500 N
Determine ( a ) The moment F = 300 N نقطتان about point o 500 N...

Determine ( a ) The moment F = 300 N نقطتان about point o 500 N 300N (45 25m -2 m- 600N إجابتك نقطتان b) The moment F=500 N about) point o إجابتك abä с) The moment F=600 N about point) O إجابتك d) the resultant moment produced) .by the forces about point o إجابتك

Q4) Find the moment produced by force Fi about point B Find the moment produced by...

Q4) Find the moment produced by force Fi about point B Find the moment produced by force Fs about point A Find the resultant moment about point A (The sum of all moments produced by all forces about point A) F2 = 300 N F, = 250 N 3 4 m Fs 500 N
