A carpenter's square has the shape of an L as shown in the figure below. Locate...

Question

Question

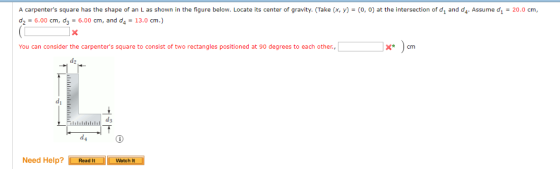

A carpenters square has the shape of an L as shown in the figure below. Locate its center of gravity. (Take (x, y)-(o, ) at

science physics

Answer 1

Answer #1

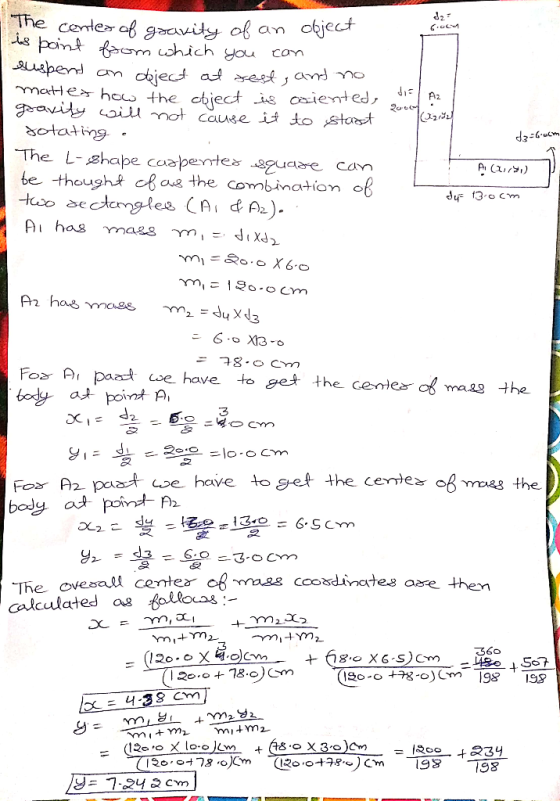

The center o gaavidy of an ckject point hich you com The L-shape coapete guare cavm be theught co the combination o 2 we have

Answer 2

Similar Homework Help Questions

A carpenter's square has the shape of an L as shown in the figure below. Locate...

A carpenter's square has the shape of an L as shown in the figure below. Locate its center of gravity. (Take (x, y) = (0, 0) at the intersection of d1 and d4. Assume d1 = 20.0 cm, d2 = 3.00 cm, d3 = 3.00 cm, and d4 = 9.0 cm. ) x = ? cm y = ? cm
A carpenter's square has the shape of an L as shown in the figure below. Locate...

A carpenter's square has the shape of an L as shown in the figure below. Locate its center of gravity. (Take (x, y) = (0, 0) at the intersection of d1 and d4. Assume d1 = 17.0 cm, d2 = 2.00 cm, d3 2.00 cm, and da 15.0 cm.) )cm dz di ds
A carpenter's square has the shape of an L as shown in the figure below. Locate...

A carpenter's square has the shape of an L as shown in the figure below. Locate its center of gravity. (Take (x, y) = (0,0) at the intersection of d, and de. Assume d = 20.0 cm, d2 = 2.00 cm, dz = 2.00 cm, and d4 = 11.0 cm.) cm

Assignment Scoring Your last submission is used for your score. 1. 0/6 points Previous Answers SerPSE10...

Assignment Scoring Your last submission is used for your score. 1. 0/6 points Previous Answers SerPSE10 12.2.P.003. My Notes Ask Your Teacher A carpenter's square has the shape of an L as shown in the figure below. Locate its center of gravity. (Take (x, y) = (0,0) at the intersection of d, and d . Assume dy = 17.0 cm, d2 = 6.00 cm, dz = 6.00 cm, and d4 = 13.0 cm.) (6.63 You can consider the carpenter's square...
I do not understand what is wrong, I have tried to 3.58 and 2.30 for my...

I do not understand what is wrong, I have tried to 3.58 and 2.30 for my x value and it keeps saying it is wrong... 6. + 1/2 points Previous Answers SerPSET9 12.P.003. My Notes + Ask Your Teacher A carpenter's square has the shape of an Las shown in the figure below. Locate its center of gravity. (Take (x, y) = (0,0) at the intersection of dy and d4. Assume di = 17.0 cm, d2 = 3.00 cm, d3...
Please show all steps and formula Thanks 2. -0 points SerPSE9 12.P003.WI. My Notes Ask Your...

Please show all steps and formula Thanks 2. -0 points SerPSE9 12.P003.WI. My Notes Ask Your Teach A carpenter's square has the shape of an L as shown in the figure below. Locate its center of gravity. (Take (x, y) (o, o) at the intersection of di and da. Assume d1 = 20.0 cm, d2 = 5.00 cm, d3 5.00 cm, and d 15.0 cm.) ) cm ds 下 Need Help? Watch It

003 (part 1 of 2) 10.0 points A carpenter's square of uniform density has the shape...

003 (part 1 of 2) 10.0 points A carpenter's square of uniform density has the shape of an L, as shown in the figure. Assume: A (x, y) coordinate frame with the origin at the lower left corner of the car- penter's square. The x-axis is horizontal and to the right. The y-axis is vertically upward. Given: In the figure, B = 14 cm, C = 3.5 cm, D = 4.1 cm, E= 18 cm. Because the square is uniform...
