What is the angle of rotation on a corresponding element in physical space if the angle...

What is the angle of rotation on a corresponding element in physical space if the angle of rotation on the Mohrs Circle is 0

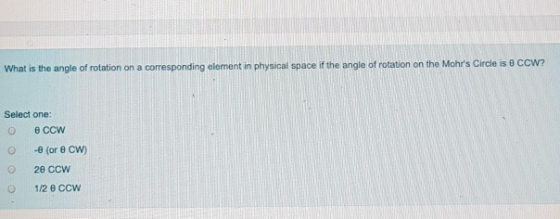

What is the angle of rotation on a corresponding element in physical space if the angle of rotation on the Mohr's Circle is 0 CCW? Select one: O CCW - (or e CW 28 CCW 112 CCW
0 0
Add a comment
Answer #1

Solution:

Answer: 1/2 Theta CCW

Explanation:

For an angle 'x' in the space in counterclockwise direction, the same angle is represented as 2x in Mohr Circle. So if the angle in the Mohr Circle will be x then the angle in the space will be (1/2 x).

So, for angle theta in Mohr Circle in CCW direction , the angle of rotation on the corresponding element in physical space will be (1/2 theta) CCW.

So , last option is correct.
