The following parameters for the Current Generator circuit are given

Question

Question

engineering Electrical-Engineering

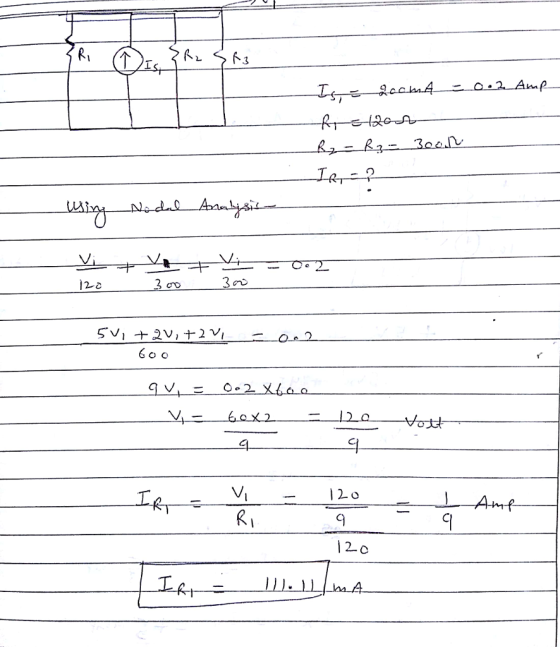

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

Question 16 0 11 pts wered The following parameters for the Current Generator circuit are given:...

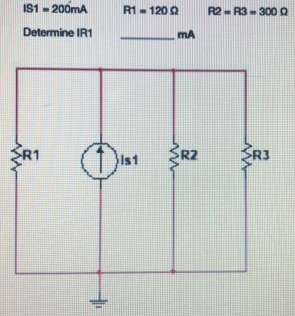

Question 16 0 11 pts wered The following parameters for the Current Generator circuit are given: isi 250 mA RT#120 Ω R3-300 Ω Determine IR1 Ri R3 Is1
A circuit is constructed with an AC generator, a resistor, capacitor and inductor as shown. The...

A circuit is constructed with an AC generator, a resistor, capacitor and inductor as shown. The generator voltage varies in time as ? =Va - Vb = ?msin?t, where ?m = 120 V and ? = 221 radians/second. The inductance L = 352 mH. The values for the capacitance C and the resistance R are unkown. What is known is that the current in the circuit leads the voltage across the generator by ? = 58 degrees and the average...
4. Synchronous generator DC test, open circuit test and short circuit test are done to a...

4. Synchronous generator DC test, open circuit test and short circuit test are done to a 240V, 60Hz, Wye-connected, 12-pole synchronous generator. The test results are shown below: DC test: Line-to-line voltage: 15V Line current: 45A OC test: Field current (W): 5A Line-to-line voltage: 240V SC test: Field current (l): 5A Line current: 68.514A Per-phase Reactance Xs: 22 a. Determine the per-phase model resistance R for the synchronous generator and draw the 3- phase model of this generator labeled with...

Find the natural frequency for Vc for the following circuit given the following parameters C =...

Find the natural frequency for Vc for the following circuit given the following parameters C = 2mF, L = 3mH, R1 = 6 , R2 = 2 and R3 = 4 too 12v (*)
The voltage across and the current through a single circuit element connected to an ac generator...

The voltage across and the current through a single circuit element connected to an ac generator are shown in the graph. Which one of the following statements concerning this circuit element is true? -the element could be a resistor or a capacitor. -the element is a resistor. -the element is a capacitor. -the element could be a resistor or an inductor. -the element is an inductor. At what frequency do charges oscillate in this circuit?
4.4 Voltage regulating transformer. Consider the following circuit in which the generator real and reactive power...

4.4 Voltage regulating transformer. Consider the following circuit in which the generator real and reactive power output is 100.0 MW and -50 MVAr respec- tively: the generator voltage is 1.02 pu; the transformer impedance is Zt = 0.01 + 0.15 pu on a base of 180 MVA; and the transformer off-nominal tap setting is t-1.05 pu. Calculate the voltage magnitude at the network terminals. til P+jQ ZE Network Figure 3: Problem 4.4 - Circuit calculation with transformer off-nominal taps. 4.5...

analyze the circuit in alternating current and find the parameters AV, Z1, Z0

analyze the circuit in alternating current and find the parameters AV, Z1, Z0
A DC shunt generator delivers a load current of 50 A at 300 V with its...

A DC shunt generator delivers a load current of 50 A at 300 V with its field circuit resistance being 50 ohms. The armature circuit resistance of the generator is 2 ohms The generator has a linear excitation with a constant rotor speed. The brush voltage drop is negligible. Aiding with a drawing of equivalent circuit, estimate: i) The field current, armature current and generated voltage of the generator when it delivers the 100 A at 300V; and (ii) The...
AC Circuit in Resonance: A circuit is constructed with an AC generator, a resistor, capacitor and...

AC Circuit in Resonance: A circuit is constructed with an AC generator, a resistor, capacitor and inductor as The generator voltage varies in time as E Va vb Emsinut, where sm 24 v and w 100 At this frequency, the circuit is in resonance with the maximum value of the current Imax resistance R and the inductance L are unknown. 1) What is L, the value of the inductance of the circuit? mH Submit sin(at) d WW

Q3. Consider an ideal solar cell with following parameters: Short circuit current - A and open circuit voltage 0.6V. current LOAD (a) Find the diode saturation current (lo) of the solar cell. (1...

Q3. Consider an ideal solar cell with following parameters: Short circuit current - A and open circuit voltage 0.6V. current LOAD (a) Find the diode saturation current (lo) of the solar cell. (10 points) (b) Estimate the power delivered by the solar cell to a load of RL -0.1. Justify any approximation in your calculation (10 points) (e) After few years of field operation, the solar cell developed series resistance of R, ohms and shunt resistance of Rsh ohms. Draw...
