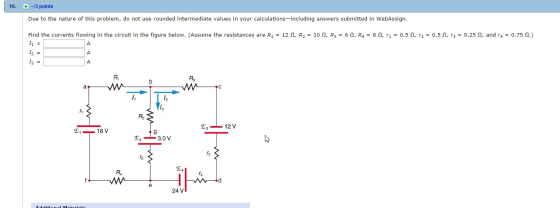

Please show explanation. I am really struggling with this part of circuits. I will give great...

Question

Question

Please show explanation. I am really struggling with this part of circuits. I will give great review and rating.

science physics

Answer 1

Answer #1

Applying Kirchoffs Law

Here, As I1 = I2 + I3

=> 18 + 3 = (I2 + I3) * 20.5 + 10.5 * I3

Also, 18 + 12 - 24 = (I2 + I3) * 20.5 + 7 * I2

=> Solving for I1 , I2 , I3

=> I2 = - 0.5656 A

=> I3 = 1.0514 A

=> I1 = 1.0514 - 0.5656

= 0.4858 A
