Question
Don't understand how both are CCW.

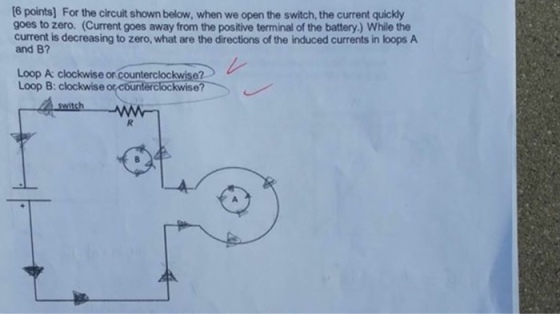

For the circuit shown below, when we open the swit
0 0
Add a comment Improve this question Transcribed image text
Answer #1

initially outer loop have current in counter clock wise direction and both loop have magnetic flux in direction out of the page. when switch is opened and current decrease flux coming out of both loop decrease so induced current will be in a direction so that induced flux will be out of page in both loop so in both loop induced current is counterclockwise.
