Homework Answers
final answers

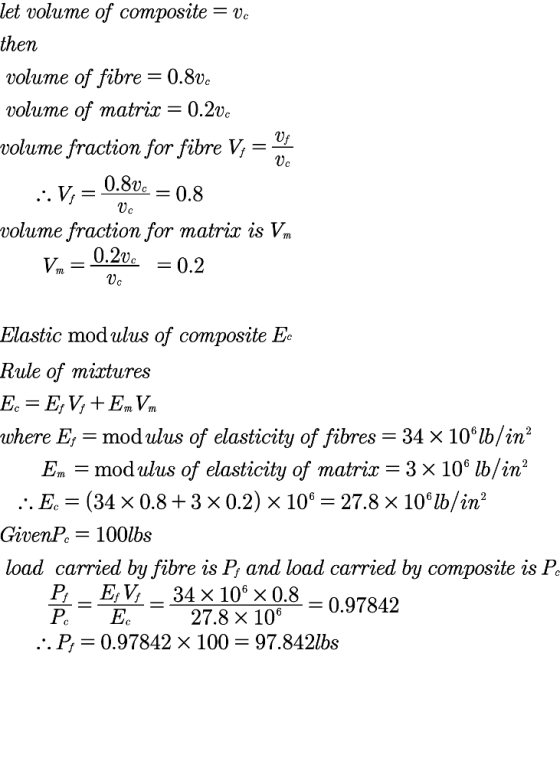

a ) Volume fraction for fibre =0.8 and for matrix =0.2
b) Elastic modulus of composite =34*10^6 lb/in^2
c) load shared by fibre = 97.842lbs
Add Answer to:

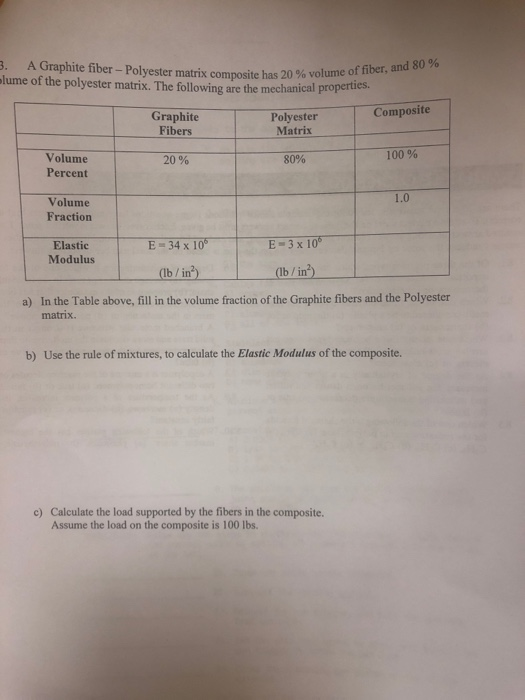

A Graphite fiber-Polyester matrix composite has 20 % volume。 lume of the polyester matrix. The followi...
A composite composed of graphite fibers in an epoxy matrix has a cross sectional area of...
A composite composed of graphite fibers in an epoxy matrix has a cross sectional area of 1.61 cm2, of which 63 percent is graphite fibers. The composite supports a total load of 15 402 kg in the direction of fiber alignment. Calculate the portion of the load in kg supported by the graphite fibers. For graphite fibers, E=400 GPa; For epoxy matrix, E=4.14 GPa.
Q4 Acomposite consists of 65% polyester resin is reinforced by continuous and aligned glass fibers. The modulus elasticity of hardened resin is 4 0 GPa and the modulus elasticity of the ibers la...
Q4
Acomposite consists of 65% polyester resin is reinforced by continuous and aligned glass fibers. The modulus elasticity of hardened resin is 4 0 GPa and the modulus elasticity of the ibers la 52.0 GPa. Compute: a. The overall modulus elasticity of composite in the longitudinal direction parallel 04. to fiber direction b. The load carried by each matrix and iber phase, If uniaxial srss of 50 MPa is applied in longitudinal direction on the 250 mm2 cross-sectional area. c....
An E-glass fiber-thermoset polyester composite tube is carefully constructed with the objective o...
An E-glass fiber-thermoset polyester composite tube is carefully constructed with the objective of achieving maximum axial tensile modulus. The glass fibers are continuous and highly aligned parallel to the tube axis. The tube contains 70% by volume glass, and has dimensions: length lm, diameter 50 mm, and wall thickness Predict the following deformations: a) The changes in length and diameter when the tube carries an axial tensile load of 10kN. The change in diameter when the tube is internally pressurized...
Find the longitudinal tensile strength of resulting composite. Given: Ti-aluminum metal matrix composite- Fiber volume f...
Find the longitudinal tensile strength of resulting
composite.
Given: Ti-aluminum metal matrix composite- Fiber volume
fraction: 27%,Ti matrix: at 427°C, Em = 87.5 GPa, νm = 0.3. Alumina
fibers: at 427°C, Ef = 379 GPa, νf = 0.27
Ti-aluminum metal matrix composite Fiber volume fraction: 27% Ti matrix: at 427°C, Em 87.5 GPa, v 0.3 . Alumina fibers: at 427"C, E,-379 GPa, v,-0.27 o Find the longiiudinal tnsile sirengih of resuling cormpositc
Ti-aluminum metal matrix composite Fiber volume fraction: 27%...
Question 6: A new generation of fiber-matrix composite is designed for the manufacturing of a med...
Question 6: A new generation of fiber-matrix composite is designed for the manufacturing of a medical examination table. It is desired to produce an aligned carbon fiber-epoxy matrix composite having a longitudinal tensile strength of 550 MPa. Calculate the volume fraction of fibers necessary if the average fiber diameter and length are 0.02 mm and 0.6 mm, respectively, the fiber fracture strength is 4.5 GPa, the fiber-matrix bond strength is 27 MPa, and the matrix stress at composite failure is...
It is desired to produce an aligned carbon fiber-epoxy matrix composite having a 0.16 volume fraction...
It is desired to produce an aligned carbon fiber-epoxy matrix composite having a 0.16 volume fraction of fibers. Calculate (a) the critical fiber length, and (b) the longitudinal strength of the composite (in MPa), assuming the following: (1) the average fiber diameter is 0.018 mm, (2) the average fiber length is 5.7 mm, (3) the fiber fracture strength is 2.0 GPa, (4) the fiber-matrix bond strength is 84 MPa, (5) the matrix stress at fiber failure is 27.1 MPa, (6)...
In an aligned and continuous carbon fiber-reinforced nylon 6,6 composite, the fibers are to carry 94...
In an aligned and continuous carbon fiber-reinforced nylon 6,6 composite, the fibers are to carry 94 % of a load applied in the longitudinal direction. Modulus of Elasticity [GPa(psi)] Tensile Strength [MPa(psi)] Carbon fiber 260 (37 ×106) 4000 (5.8 ×105) Nylon 6,6 2.8 (4.0 ×105) 76 (11,000) (a) Using the data provided, determine the volume fraction of fibers that will be required. (b) What will be the tensile strength of this composite? Assume that the matrix stress at fiber failure...
A continuous and aligned fiber-reinforced composite is to be produced consisting of 41 vol% aramid fibers...
A continuous and aligned fiber-reinforced composite is to be produced consisting of 41 vol% aramid fibers and 59 vol% of a polycarbonate matrix; mechanical characteristics of these two materials are as follows: Modulus of Elasticity [GPa (psi)] Tensile Strength [MPa (psi)] Aramid fiber 131 (19 × 106) 3600 (520,000) Polycarbonate 2.4 (3.5 × 105) 65 (9425) Assume that this composite has a cross-sectional area of 320 mm2 (0.50 in.2) and is subjected to a longitudinal load of 49700 N (11200...
1. A fishing rod is made of fiberglass/epoxy composites with a circular cross R. The volume...
1. A fishing rod is made of fiberglass/epoxy composites with a circular cross R. The volume fraction of the continuous filaments in the composite is os continuous filaments in the composite is 0.5 and each fiber the elastic modulus of the fiber is 10 Msi and the matrix has a radius r. Suppose R = 1000r, the elastic modulus of the fiber is 10 is 0.5 Msi. The ultimate strength of the fiber is 50 ksi. (a) Calculate the number...
Chapter 16, Problem 16.17 Compute the longitudinal tensile strength of an aligned glass fiber-epoxy matrix composite...
Chapter 16, Problem 16.17 Compute the longitudinal tensile strength of an aligned glass fiber-epoxy matrix composite in which the average fiber diameter and length are 0.0135 mm (0.53 x 10-4 in.) and 1.58 mm (0.062 in.), respectively, and the volume fraction of fibers is 0.33. Assume that (1) the fiber-matrix bond strength is 100 MPa (14,500 psi), (2) the fracture strength of the fibers is 3500 MPa (5 x 105 psi), and (3) the matrix stress at composite failure is...
Q4
Acomposite consists of 65% polyester resin is reinforced by continuous and aligned glass fibers. The modulus elasticity of hardened resin is 4 0 GPa and the modulus elasticity of the ibers la 52.0 GPa. Compute: a. The overall modulus elasticity of composite in the longitudinal direction parallel 04. to fiber direction b. The load carried by each matrix and iber phase, If uniaxial srss of 50 MPa is applied in longitudinal direction on the 250 mm2 cross-sectional area. c....
An E-glass fiber-thermoset polyester composite tube is carefully constructed with the objective of achieving maximum axial tensile modulus. The glass fibers are continuous and highly aligned parallel to the tube axis. The tube contains 70% by volume glass, and has dimensions: length lm, diameter 50 mm, and wall thickness Predict the following deformations: a) The changes in length and diameter when the tube carries an axial tensile load of 10kN. The change in diameter when the tube is internally pressurized...
Find the longitudinal tensile strength of resulting
composite.
Given: Ti-aluminum metal matrix composite- Fiber volume
fraction: 27%,Ti matrix: at 427°C, Em = 87.5 GPa, νm = 0.3. Alumina
fibers: at 427°C, Ef = 379 GPa, νf = 0.27
Ti-aluminum metal matrix composite Fiber volume fraction: 27% Ti matrix: at 427°C, Em 87.5 GPa, v 0.3 . Alumina fibers: at 427"C, E,-379 GPa, v,-0.27 o Find the longiiudinal tnsile sirengih of resuling cormpositc
Ti-aluminum metal matrix composite Fiber volume fraction: 27%...
Question 6: A new generation of fiber-matrix composite is designed for the manufacturing of a medical examination table. It is desired to produce an aligned carbon fiber-epoxy matrix composite having a longitudinal tensile strength of 550 MPa. Calculate the volume fraction of fibers necessary if the average fiber diameter and length are 0.02 mm and 0.6 mm, respectively, the fiber fracture strength is 4.5 GPa, the fiber-matrix bond strength is 27 MPa, and the matrix stress at composite failure is...
It is desired to produce an aligned carbon fiber-epoxy matrix composite having a 0.16 volume fraction of fibers. Calculate (a) the critical fiber length, and (b) the longitudinal strength of the composite (in MPa), assuming the following: (1) the average fiber diameter is 0.018 mm, (2) the average fiber length is 5.7 mm, (3) the fiber fracture strength is 2.0 GPa, (4) the fiber-matrix bond strength is 84 MPa, (5) the matrix stress at fiber failure is 27.1 MPa, (6)...
1. A fishing rod is made of fiberglass/epoxy composites with a circular cross R. The volume fraction of the continuous filaments in the composite is os continuous filaments in the composite is 0.5 and each fiber the elastic modulus of the fiber is 10 Msi and the matrix has a radius r. Suppose R = 1000r, the elastic modulus of the fiber is 10 is 0.5 Msi. The ultimate strength of the fiber is 50 ksi. (a) Calculate the number...
Chapter 16, Problem 16.17 Compute the longitudinal tensile strength of an aligned glass fiber-epoxy matrix composite in which the average fiber diameter and length are 0.0135 mm (0.53 x 10-4 in.) and 1.58 mm (0.062 in.), respectively, and the volume fraction of fibers is 0.33. Assume that (1) the fiber-matrix bond strength is 100 MPa (14,500 psi), (2) the fracture strength of the fibers is 3500 MPa (5 x 105 psi), and (3) the matrix stress at composite failure is...
