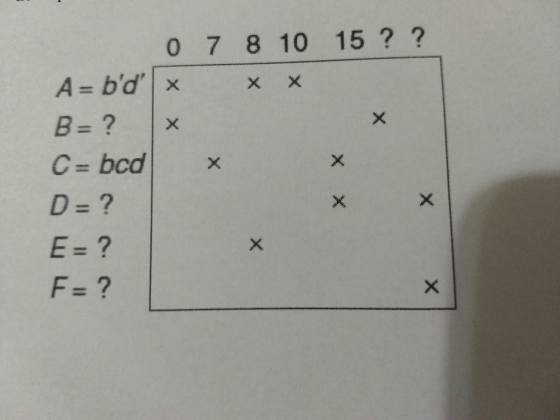

the frame of prime implicants below was obtained after the
simplification of a truth table by the method of Quine_McCluskey.
This table represents the prime implicants for f (a, b, c, d) in
which some items in the rows and columns are unknown (?). However,
it is known that the frame has one line for each prime implicant of
f and one column for each minterm for which f has a value of
1.

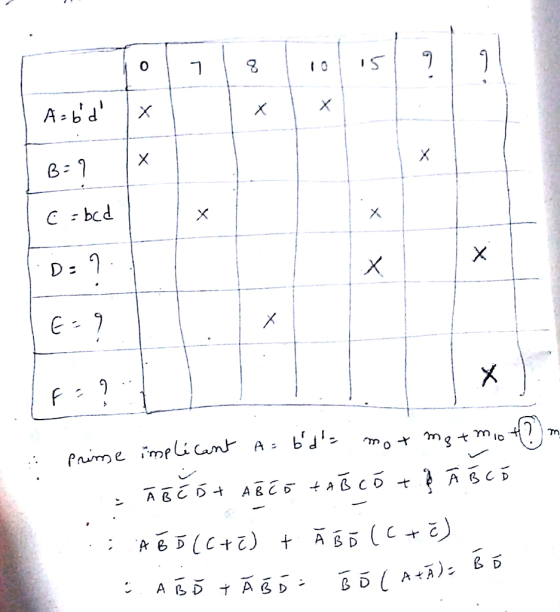

a) Find, with the help of the table below, all the minterms and
prime implicants that correspond, respectively, to unknown rows and
columns.

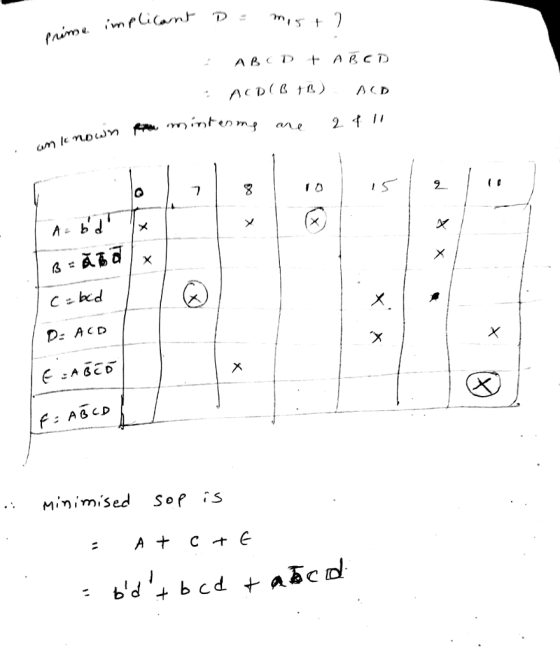

b) Find the minimum product sum or sums for f
Homework Answers
