Question

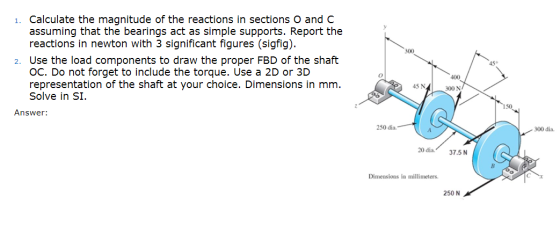

A countershaft carrying two V-belt pulleys is shown in the figure

calculate the magnitude of the reactions in sections O and C assuming that the bearings act as simple supports. Report the reactions in newton with 3 significant figures (sigfigs).

Use the load components to draw the proper FBD of the shaft OC. Do not forget to include the torque. Use a 2D or 3D representation of the shaft at your choice. Dimensions in mm. Solve in SI.
