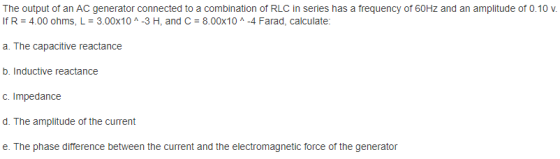

The output of an AC generator connected to a combination of RLC in series has a frequency of 60Hz and an amplitude of 0.10 V. If R 4.00 ohms, L 3.00x10 A -3 H, and C 8.00x10 -4 Farad, calculate: a. The capacitive reactance b. Inductive reactance C. Impedance d. The amplitude of the current e. The phase difference between the current and the electromagnetic force of the generator

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

Given frequency – 60Hz

Amplitude = 0.10V

R = 4.00 ohms

L = 3.0 x 10-3H

C = 8.00 x 10-4 Farad

3.316.2 ( Inductive oealance 1) (113-3.3) )

0 0
Add a comment
Know the answer?
Add Answer to:
The output of an AC generator connected to a combination of RLC in series has a...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • The output of an AC generator connected to a combination of RLC in series has a...

    The output of an AC generator connected to a combination of RLC in series has a frequency of 200 Hz and a amplitude of 0.100 V. If R = 4.00 Ω, L = 3.00 × 10-3 H, and C = 8.00 × 10-4 F, calculate: The capacitive ballast, the inductive ballast, the impedance, the amplitude of the current, and the phase difference between the current and the fem of the generator.

  • AC with emf 0.1V and f = 60Hz is connected to RLC combination R=8ohm L=6mH C=0.08...

    AC with emf 0.1V and f = 60Hz is connected to RLC combination R=8ohm L=6mH C=0.08 microF Find the inductive reactance,capacitive reactance and inpedance of the curcuit Find the current amp and phase different berween the current and emf of the generator Draw the diagram if RLCcircuit find resonance frequency

  • A series RLC circuit has R=4250, L=1.25H and C=3.50uF. It is connected to an AC source...

    A series RLC circuit has R=4250, L=1.25H and C=3.50uF. It is connected to an AC source with f=60.0 Hz and Vmax=150V. a. Determine the inductive reactance, the capacitive reactance and the impedance of the circuit. b. Find the Maximum current in the circuit. C. Find the phase angle between the current and voltage.

  • 4. A series RLC circuit has R=42512, L=1.25H and C=3.50 F. It is connected to an...

    4. A series RLC circuit has R=42512, L=1.25H and C=3.50 F. It is connected to an AC source with f=60.0Hz and AVmax=150V. a. Determine the inductive reactance, the capacitive reactance and the impedance of the circuit. b. Find the Maximum current in the circuit. C. Find the phase angle between the current and voltage.

  • Please use the values from the example below To solve this problem shown below. Also please...

    Please use the values from the example below To solve this problem shown below. Also please show derivations for the problem below since they’re not given in the book. The answers for the values is: 2.00 V; 10.01 V; and 8.01 V. Example 15.2 An RLC Series Circuit The ouput of an ac generator connected to an RLC series combination has a frequency of 200 Hz and an amplitude of 0.100 V. If R-4.00 Ω, L= 3.00x10-3 H, and C=...

  • An RLC circuit consists of a resistor, a inductor, and a capacitor connected in series to an AC v...

    An RLC circuit consists of a resistor, a inductor, and a capacitor connected in series to an AC voltage source with an RMS voltage of 74 volts. At half the resonant frequency, the phase angle is -25 degrees and the inductive reactance is 47 Ohms. What is the average dissipated power at twice the resonant frequency in Watts?

  • A circuit consists of a resistor, capacitor, and inductor connected in series to an AC source....

    A circuit consists of a resistor, capacitor, and inductor connected in series to an AC source. As the source frequency increases, the current in the circuit decreases. Which statement about the circuit is NOT correct as the source frequency increases? a) The inductive reactance increases. b) The circuit is said to become more capacitive than inductive.     c) The total power from the source decreases. d) The impedance of the circuit increases. e) The phase angle for the circuit becomes more...

  • A resistor and capacitor are connected in series across an ac generator. The voltage of the...

    A resistor and capacitor are connected in series across an ac generator. The voltage of the generator is given by V() = Vocos(wt), where Vo = 120V,w = 120x rad/s, R = 55082, and C = 7.54F. (a) What is the magnitude of the impedance of the RC circuit? (b) What is the amplitude of the current through the resistor? (e) What is the phase difference between the voltage and current? The magnitude of the impedance is The amplitude of...

  • An RLC circuit consists of a resistor, a inductor, and a capacitor connected in series to...

    An RLC circuit consists of a resistor, a inductor, and a capacitor connected in series to an AC voltage source with an RMS voltage of 75 volts. At half the resonant frequency, the phase angle is -37 degrees and the inductive reactance is 49 Ohms. What is the average dissipated power at twice the resonant frequency in Watts?

  • A generator connected to an RLC circuit has an rms voltage of 160 V and an...

    A generator connected to an RLC circuit has an rms voltage of 160 V and an rms current of 39 mA. if the resistance in the circuit is 3.1 kΩ and the capacitive reactance is 6.7 kΩ What is the inductive reactance of the circuit? A generator connected to an RLC circut has an voltage of 160 V and an is current of 30 mA. Part A If the resistance in the court is 31 and the capacitive reactance is...
