You have a double barrier structure where Barrier 1 that is to the left is 1...

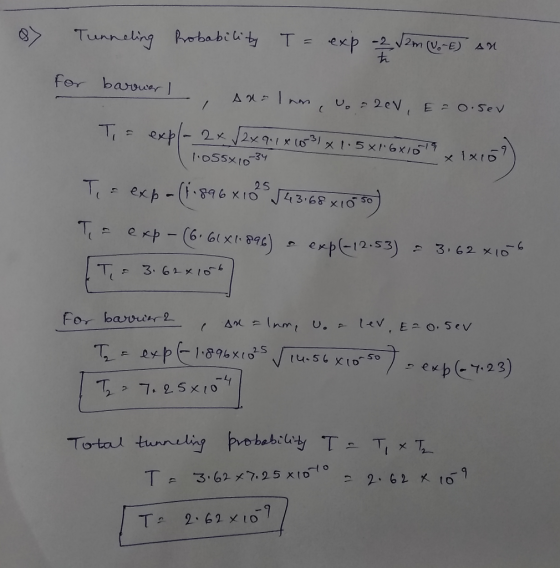

You have a double barrier structure where Barrier 1 that is to the left is 1 nm thick, and 2 eV high. Attached to it is barrier 2 that is to the right, which is also 1 nm thick, but 1 eV high. An electron is incident from the left with energy 0.5 eV. Calculate the tunneling probability.
Homework Answers
Please like. Thank youAdd Answer to:
You have a double barrier structure where Barrier 1 that is to
the left is 1...
plz hlp Tunneling An electron of energy E = 2 eV is incident on a barrier...
plz hlp
Tunneling An electron of energy E = 2 eV is incident on a barrier of width L = 0.61 nm and height Vo-3 eV as shown in the figure below. (The figure is not drawn to scale.) 1) What is the probability that the electron will pass through the barrier? The transmission probability is 0 SubmitHelp 2) Lets understand the influence of the exponential dependence. If the barrier height were decreased to 2.8 eV (this corresponds to only...
4. An electron having total energy E 4.50 eV approaches a rectangular Energy energy barrier with...
4. An electron having total energy E 4.50 eV approaches a rectangular Energy energy barrier with U= 5.00 eV and L = 950 pm as shown. Classically, the electron cannot pass through the barrier because E < U. However, quantum mechanically the probability of tunneling is not zero. a) Calculate this probability, which is the transmission coefficient. b) By how much would the width L of the potential barrier have to change for the chance of an incident 4.50-eV electron...
(III) Quantum Tunneling Consider an electron in 1D in presence of a potential barrier of width...
(III) Quantum Tunneling Consider an electron in 1D in presence of a potential barrier of width L represented by a step function ſo I<0 or 1>L V U. r>0 and 2<L The total wavefunction is subject to the time-independent Schrödinger equation = EV (2) 2m ar2 +V where E is the energy of the quantum particle in question and m is the mass of the quantum particle. A The total wavefunction of a free particle that enters the barrier from...
0.91 nm 2.7 nm D | Question 25 4 pts A 2.0 eV electron is incident on a o.20-nm barrier that is 5.67 eV high. What is the probability that this electron will tunnel through the barrier? (1 ev 1.6...
0.91 nm 2.7 nm D | Question 25 4 pts A 2.0 eV electron is incident on a o.20-nm barrier that is 5.67 eV high. What is the probability that this electron will tunnel through the barrier? (1 ev 1.60 10-19 J, m 9.11 10-31 kg. h- 1.055 x 1034 J s, h 6.626 x 1034 j .s) 2.0 x 10-2 1.5 x 10-3 9.0 10-4 1.2 10-3 1.0 x 10-3
0.91 nm 2.7 nm D | Question 25 4...
mechani mie The potential energy barrier shown below is a simplified model of thec electrons in...
mechani mie The potential energy barrier shown below is a simplified model of thec electrons in metals. The metal workfunction (Ew), the minimum energy required to remove an electron from the metal, is given by Ew-,-E where 1s the height of the potential energy barrier and E is the energy of the electrons near the surface of the metal. The potential energy barrier is = 5 eV V(x) V=0 (a) The wavefunction of an electron on the surface (x< 0)...
Problem 40.24 - Enhanced - with Feedback An electron approaches a 1.6-nm-wide potential energy barrier of...
Problem 40.24 - Enhanced - with Feedback An electron approaches a 1.6-nm-wide potential energy barrier of height 6.8 eV You may want to review (Pages 1169 - 1172) Part A What energy electron has a tunneling probability of 10%? Express your answer to three significant figures and include the appropriate units. Value Units Submit Request Answer - Part B What energy electron has a tunneling probability of 1.0%? Express your answer to three significant figures and include the appropriate units....
5. A free electron has a wave function ?(?) = ????(2.0 × 1010?) Find the electron’s...
5. A free electron has a wave function ?(?) = ????(2.0 × 1010?) Find the electron’s (a) wavelength (b) momentum (c) speed (d) kinetic energy 6. An electron with energy 8.0 eV is incident on a potential barrier which is 9.2 eV high and 0.25 nm wide. (a) What is the probability that the electron will pass through the barrier? (b) What is the probability that electron will be deflected?
which option? thanks! A 3.50-eV electron is incident on a 0.40-nm barrier that is 5.67 eV...
which option? thanks!
A 3.50-eV electron is incident on a 0.40-nm barrier that is 5.67 eV high. What is the probability that this electron will tunnel through the barrier? (1 ev 1.60 x 10-19 J, m el 9.11 x 103 kg, h-1.055 x 1034 J,h 6626x 10-34J s) 1.5 x 10-3 9.0 x 10-4 1.2 x 10-3 1.0 x 10-3 2.4 x 10-3 MacBook Pro
Consider an electron with energy E in region I confined by a barrier with potential energy...
Consider an electron with energy E in region I confined by a barrier with potential energy Vo and width W. Plot the probability that the electron “tunnels” through the barrier and ends up in Region III as a function of the barrier width for Vo = 1 eV and E = 0.1, 0.25, 0.5, 0.75 and 0.9 eV. Also show the code for the plots.
Electrons with energies 1 eV and 2 eV are incident on a barrier of height 5...
Electrons with energies 1 eV and 2 eV are incident on a barrier of height 5 eV and 0.5 nm wide. Find their respective transmission probabilities. How are these affected if the barrier is doubled in width?
plz hlp
Tunneling An electron of energy E = 2 eV is incident on a barrier of width L = 0.61 nm and height Vo-3 eV as shown in the figure below. (The figure is not drawn to scale.) 1) What is the probability that the electron will pass through the barrier? The transmission probability is 0 SubmitHelp 2) Lets understand the influence of the exponential dependence. If the barrier height were decreased to 2.8 eV (this corresponds to only...
4. An electron having total energy E 4.50 eV approaches a rectangular Energy energy barrier with U= 5.00 eV and L = 950 pm as shown. Classically, the electron cannot pass through the barrier because E < U. However, quantum mechanically the probability of tunneling is not zero. a) Calculate this probability, which is the transmission coefficient. b) By how much would the width L of the potential barrier have to change for the chance of an incident 4.50-eV electron...
(III) Quantum Tunneling Consider an electron in 1D in presence of a potential barrier of width L represented by a step function ſo I<0 or 1>L V U. r>0 and 2<L The total wavefunction is subject to the time-independent Schrödinger equation = EV (2) 2m ar2 +V where E is the energy of the quantum particle in question and m is the mass of the quantum particle. A The total wavefunction of a free particle that enters the barrier from...
0.91 nm 2.7 nm D | Question 25 4 pts A 2.0 eV electron is incident on a o.20-nm barrier that is 5.67 eV high. What is the probability that this electron will tunnel through the barrier? (1 ev 1.60 10-19 J, m 9.11 10-31 kg. h- 1.055 x 1034 J s, h 6.626 x 1034 j .s) 2.0 x 10-2 1.5 x 10-3 9.0 10-4 1.2 10-3 1.0 x 10-3
0.91 nm 2.7 nm D | Question 25 4...
mechani mie The potential energy barrier shown below is a simplified model of thec electrons in metals. The metal workfunction (Ew), the minimum energy required to remove an electron from the metal, is given by Ew-,-E where 1s the height of the potential energy barrier and E is the energy of the electrons near the surface of the metal. The potential energy barrier is = 5 eV V(x) V=0 (a) The wavefunction of an electron on the surface (x< 0)...
Problem 40.24 - Enhanced - with Feedback An electron approaches a 1.6-nm-wide potential energy barrier of height 6.8 eV You may want to review (Pages 1169 - 1172) Part A What energy electron has a tunneling probability of 10%? Express your answer to three significant figures and include the appropriate units. Value Units Submit Request Answer - Part B What energy electron has a tunneling probability of 1.0%? Express your answer to three significant figures and include the appropriate units....
which option? thanks!
A 3.50-eV electron is incident on a 0.40-nm barrier that is 5.67 eV high. What is the probability that this electron will tunnel through the barrier? (1 ev 1.60 x 10-19 J, m el 9.11 x 103 kg, h-1.055 x 1034 J,h 6626x 10-34J s) 1.5 x 10-3 9.0 x 10-4 1.2 x 10-3 1.0 x 10-3 2.4 x 10-3 MacBook Pro
