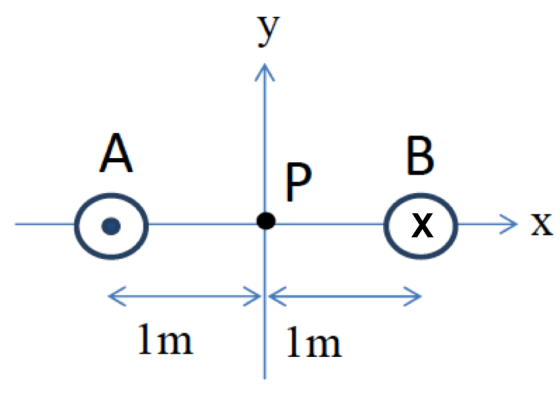

If the current through wire A is 1 A out of the page and the current flowing through wire B is 1 A into the page, what is the magnitude of the magnetic field at point P?
Group of answer choices
0.318 x 10-7 T
2 x10-7 T
3.14 x 10-7 T
4 x 10-7 T
1 x 10-7 T
Homework Answers
Using right hand thumb rule The magnetic force due to A is upward (+y direction ).
The magnetic force due to B is upward (+y direction).
So resultant field at point P
Here
, IA=IB=1.0 A , R=1.0 M
So
Answer
Add Answer to:
If the current through wire A is 1 A out of the page and the
current...
Wire 1 has a large current i flowing out of the page, as shown in the...
Wire 1 has a large current i flowing out of the page, as shown in the diagram. Wire 2 has a large current i flowing into the page. In what direction does the magnetic field point at position P? Р (X) Tout in Toward the top of the page. To the left. To the right. Toward the bottom of the page. O None of the above.
In the diagram, wire 1 has a current 210 coming out of the page, wire 2...
In the diagram, wire 1 has a current 210 coming out of the page, wire 2 has a current 310 going into the page, wire 3 also has a current 31, into the page, and wire 4 has a current 410 out of the page. Find the magnitude of the magnetic field at the point P, in terms of Ho, Io, and d. Also indicate the direction, as an angle counterclockwise from the +x axis. 1 $21. al 2031.
3. Where a single straight long current carrying wire perpendicular to the plane of the page...
3. Where a single straight long current carrying wire
perpendicular to the plane of the page carries a current out of the
page as shown, passing through the origin. The value of the current
is I=30A.
The magnitude of the magnetic field at point (3,-4)m is equal
to
A 10.0 x 10−7 T.
b 12.0 x 10−7 T.
c 15.0 x 10−7 T.
d 20.0 x 10−7 T.
e 60.0 x 10−7 T.
X
A long straight conductor has a constant current flowing to the right. A wire rectangle is situated above the wire, and also has a constant current flowing through it (as shown in the figure)
A long straight conductor has a constant current flowing to the right. A wire rectangle is situated above the wire, and also has a constant current flowing through it (as shown in the figure). It what direction is the net force on the wire rectangle? A) out of page B) up C) down D) force is zero E) left 8) A solid cylinder of radius R = 5.0 mm caries a uniform current density of 1.50 x 106 A/m2. What is the magnitude of the magnetic...
A wire carrying a 31.0 A current bends through a right angle.
Exercise 28.13 - Enhanced - with Solution A wire carrying a 31.0 A current bends through a right angle. Consider two 2.00 mm segments of wire, each 3.00 cm from the bend (Figure 1). Part A Find the magnitude of the magnetic field these two segments produce at point P, which is midway between them. Express your answer with the appropriate units. Part B Find the direction of the magnetic field at point P. out of the page into the page
(out of page) Figure 1 The long, straight wire shown in Figure 1 above is in...
(out of page) Figure 1 The long, straight wire shown in Figure 1 above is in the plane of the page and carries a current I. Point P is also in the plane of the page and is a perpendicular distance d from the wire. Gravitational effects are negligible. 1. With reference to the coordinate system in Figure 1, what is the direction of the magnetic field at point P due to the current in the wire? Justify your answer....
A 2mm long wire carries a current of 0.5A directed out of the page. The magnetic...
A 2mm long wire carries a current of 0.5A directed out of the
page. The magnetic field due to this bit of wire at a point P which
is 3 meters to the right of and 3 meters lower than the wire (see
the figure below) is
a)5.56 x 10^-12 T pointing upwards 45 degrees to the right
b)5.56 x 10^-12 T pointing downwards 45 degrees to the left
c)3.93 x 10^-12 T pointing upwards 60 degrees to the right...
a) Two long straight wires are carrying current out of the page and into the page...
a) Two long straight wires are carrying current out of the page and into the page as shown Draw the direction of the force exerted on wire 2. X 1 b) A rectangular loop of wire with current flowing through it is sitting in an external magnetic field as shown below (the magnetic field in the dashed region is caused by magnets that are not shown in the diagram). What direction will the loop rotate? Answer by saying which side...
13. In each of the following situations current-carrying wire is placed in a magnetic field as...
13. In each of the following situations current-carrying wire is placed in a magnetic field as shown. Determine the direction of the requested quantity. (a) (1 pt) In diagram (a), the wire has a current flowing to the left and the magnetic field is represented by the circles. What is the direction of the force on the wire due to the magnetic field? No direction Value is Zero (b) (1 pt) In diagram (b), the wire has a current flowing...
a) Two long straight wires are carrying current out of the page and into the page...
a) Two long straight wires are carrying current out of the page and into the page as shown Draw the direction of the force exerted on wire 2. X 12 11 b) A rectangular loop of wire with current flowing through it is sitting in an external magnetic field as shown below (the magnetic field in the dashed region is caused by magnets that are not shown in the diagram). IB - L What direction will the loop rotate? Answer...
Wire 1 has a large current i flowing out of the page, as shown in the diagram. Wire 2 has a large current i flowing into the page. In what direction does the magnetic field point at position P? Р (X) Tout in Toward the top of the page. To the left. To the right. Toward the bottom of the page. O None of the above.
In the diagram, wire 1 has a current 210 coming out of the page, wire 2 has a current 310 going into the page, wire 3 also has a current 31, into the page, and wire 4 has a current 410 out of the page. Find the magnitude of the magnetic field at the point P, in terms of Ho, Io, and d. Also indicate the direction, as an angle counterclockwise from the +x axis. 1 $21. al 2031.
3. Where a single straight long current carrying wire
perpendicular to the plane of the page carries a current out of the
page as shown, passing through the origin. The value of the current
is I=30A.
The magnitude of the magnetic field at point (3,-4)m is equal
to
A 10.0 x 10−7 T.
b 12.0 x 10−7 T.
c 15.0 x 10−7 T.
d 20.0 x 10−7 T.
e 60.0 x 10−7 T.
X
(out of page) Figure 1 The long, straight wire shown in Figure 1 above is in the plane of the page and carries a current I. Point P is also in the plane of the page and is a perpendicular distance d from the wire. Gravitational effects are negligible. 1. With reference to the coordinate system in Figure 1, what is the direction of the magnetic field at point P due to the current in the wire? Justify your answer....
A 2mm long wire carries a current of 0.5A directed out of the
page. The magnetic field due to this bit of wire at a point P which
is 3 meters to the right of and 3 meters lower than the wire (see
the figure below) is
a)5.56 x 10^-12 T pointing upwards 45 degrees to the right
b)5.56 x 10^-12 T pointing downwards 45 degrees to the left
c)3.93 x 10^-12 T pointing upwards 60 degrees to the right...
a) Two long straight wires are carrying current out of the page and into the page as shown Draw the direction of the force exerted on wire 2. X 1 b) A rectangular loop of wire with current flowing through it is sitting in an external magnetic field as shown below (the magnetic field in the dashed region is caused by magnets that are not shown in the diagram). What direction will the loop rotate? Answer by saying which side...
13. In each of the following situations current-carrying wire is placed in a magnetic field as shown. Determine the direction of the requested quantity. (a) (1 pt) In diagram (a), the wire has a current flowing to the left and the magnetic field is represented by the circles. What is the direction of the force on the wire due to the magnetic field? No direction Value is Zero (b) (1 pt) In diagram (b), the wire has a current flowing...
a) Two long straight wires are carrying current out of the page and into the page as shown Draw the direction of the force exerted on wire 2. X 12 11 b) A rectangular loop of wire with current flowing through it is sitting in an external magnetic field as shown below (the magnetic field in the dashed region is caused by magnets that are not shown in the diagram). IB - L What direction will the loop rotate? Answer...
