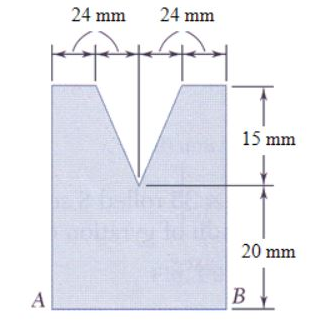

Determine the moments of inertia of the area shown with respect to the x & y axes respectively parallel and perpendicular to 6 (of 10) side AB.
Determine the moments of inertia of the area shown with respect to the x & y axes respectively parallel and perpendicular to 6 (of 10) side AB. Consider the origin to be at A.

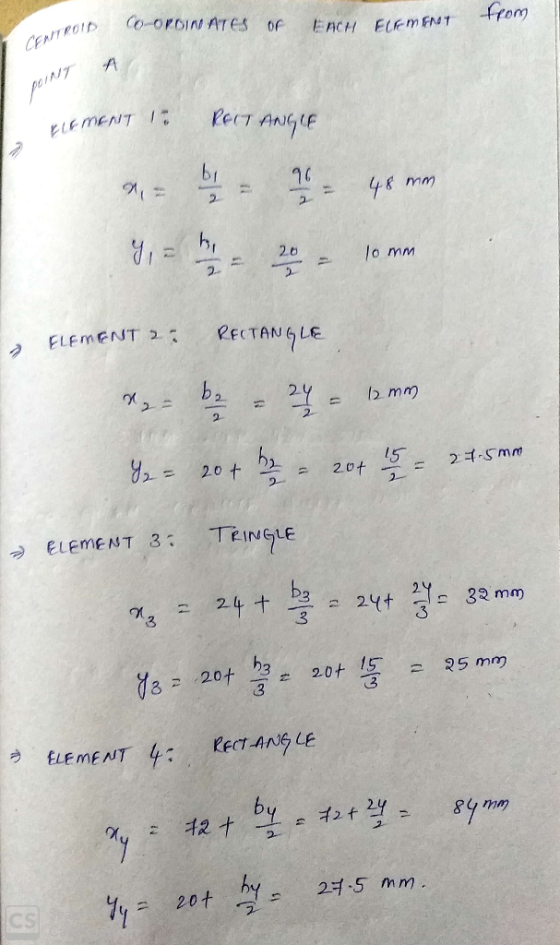

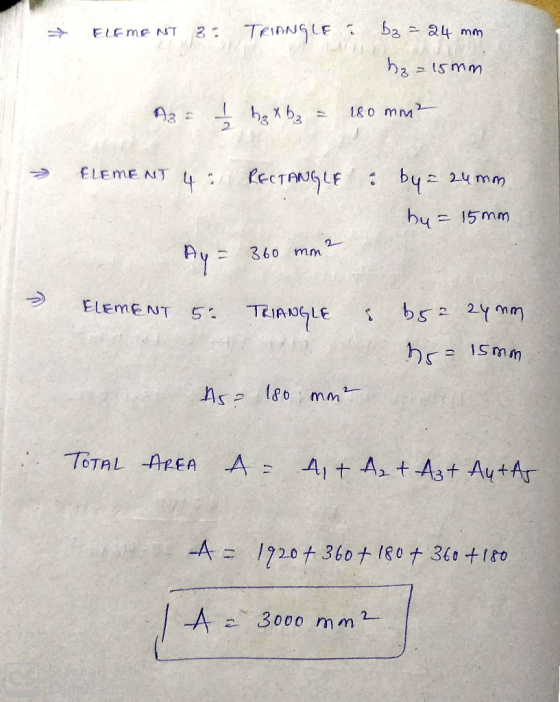

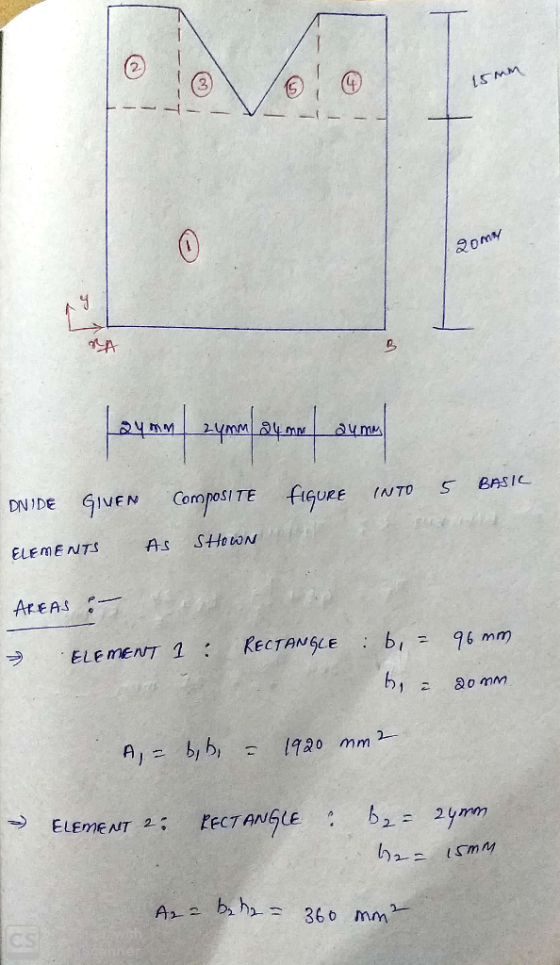

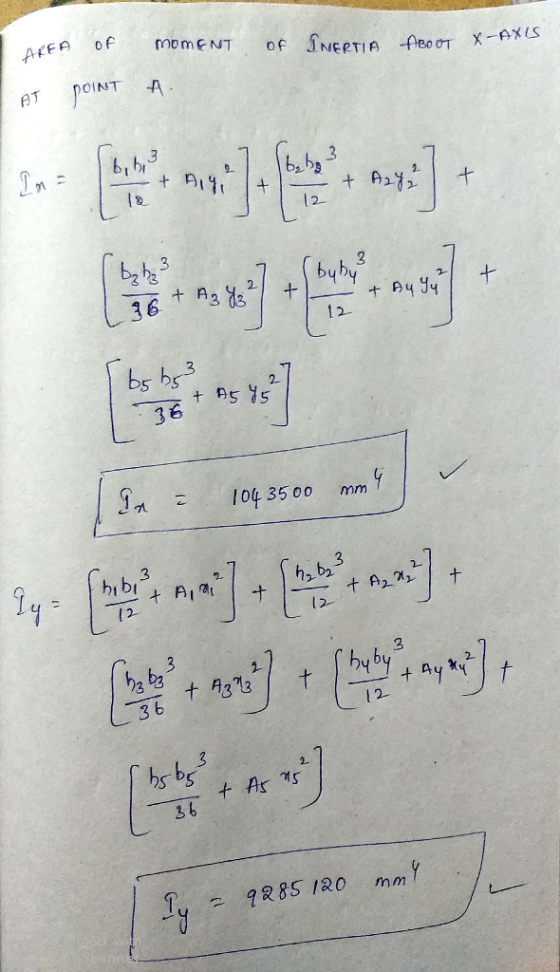

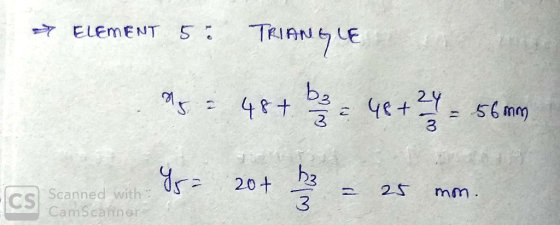

Homework Answers
Add Answer to:
Determine the moments of inertia of the area shown with respect to the x & y axes respectively parallel and perpendicular to 6 (of 10) side AB.
Determine the moments of inertia of the area shown with respect to the x & y...
Determine the moments of inertia of the area shown with respect
to the x & y axes respectively parallel and perpendicular to
side AB. Consider the origin to be at A.
12 mm 12 mm 20 mm 45 mm
Determine the moments of inertia Ix and Iy of the area with respect to the centroidal axes parallel and perpendicular to side AB respectively, if a = 66 mm.
Determine the moments of inertia Ix and Iy of the area with respect to the centroidal axes parallel and perpendicular to side AB respectively, if a = 66 mm. (Round the final answers to two decimal places.)
Determine the moments of inertia of the area shown with respect tot he x and y...
Determine the moments of inertia of the area shown
with respect tot he x and y axes respectively.
File Edit View Help Problem: 10 of 10) Do not round intermediate answers. Give your final answer(s) to three decimal places. Check your units Determine the moments of inertia of the area shown with respect to the x & y axes respectively Ix- (1767 28 mm 28 mm 1 06m 106 mm^4 10^6 mm"4 7 mm X 14 mm 7 mm eck...
Determine the moments of inertia of the shaded area shown with respect to the x and...
Determine the moments of inertia of the shaded area shown with respect to the x and y axes. O. --- נכון 0 ערב
Determine the moments of Inertia of the shaded area shown with respect to the x and...
Determine the moments of Inertia of the shaded area shown with respect to the x and y-axes. Given a = 82 mm. 125 mm - 250 mm 125 mm The moment of inertia with respect to the x-axis is 106 mm The moment of inertia with respect to the y-axis is 106 mm4
Determine the moments of inertia of the shaded area shown with respect to the x and...
Determine the moments of inertia of the shaded area shown with respect to the x and y axes. O. We were unable to transcribe this image
Using the parallel-axis theorem, determine the product of inertia of the area shown with respect to the centroidal x and y axes.
Using the parallel-axis theorem, determine the product of inertia of the area shown with respect to the centroidal x and y axes.
24 2a ? 2a Determine the moments of inertia of the shaded area shown with respect...
24 2a ? 2a Determine the moments of inertia of the shaded area shown with respect to the x and y axes when a-20 mm.
be thorough pls PROBLEM 2 Determine the moments of inertial of the area shown with respect...
be thorough pls
PROBLEM 2 Determine the moments of inertial of the area shown with respect to centroidal axes parallel to side AB.
how to solve 9.32 For the shaded are showo, determine the polar moment of inertia with...
how to solve 9.32
For the shaded are showo, determine the polar moment of inertia with respect to point D. knowing that the polar moments of inertia with respect to points A and B are, respectively, J. = 4000 in and ), = 6240 in, and that dy = 8 in. and d, = in. 9.31 and 9.32 Determine the moments of inertia 7, and ī, of the area shown with respect to centroidal axes respectively parallel and perpendicular to...
Determine the moments of inertia of the area shown with respect
to the x & y axes respectively parallel and perpendicular to
side AB. Consider the origin to be at A.
12 mm 12 mm 20 mm 45 mm
Determine the moments of inertia of the area shown
with respect tot he x and y axes respectively.
File Edit View Help Problem: 10 of 10) Do not round intermediate answers. Give your final answer(s) to three decimal places. Check your units Determine the moments of inertia of the area shown with respect to the x & y axes respectively Ix- (1767 28 mm 28 mm 1 06m 106 mm^4 10^6 mm"4 7 mm X 14 mm 7 mm eck...
Determine the moments of inertia of the shaded area shown with respect to the x and y axes. O. --- נכון 0 ערב
Determine the moments of Inertia of the shaded area shown with respect to the x and y-axes. Given a = 82 mm. 125 mm - 250 mm 125 mm The moment of inertia with respect to the x-axis is 106 mm The moment of inertia with respect to the y-axis is 106 mm4
Determine the moments of inertia of the shaded area shown with respect to the x and y axes. O. We were unable to transcribe this image
24 2a ? 2a Determine the moments of inertia of the shaded area shown with respect to the x and y axes when a-20 mm.
be thorough pls
PROBLEM 2 Determine the moments of inertial of the area shown with respect to centroidal axes parallel to side AB.
how to solve 9.32
For the shaded are showo, determine the polar moment of inertia with respect to point D. knowing that the polar moments of inertia with respect to points A and B are, respectively, J. = 4000 in and ), = 6240 in, and that dy = 8 in. and d, = in. 9.31 and 9.32 Determine the moments of inertia 7, and ī, of the area shown with respect to centroidal axes respectively parallel and perpendicular to...
