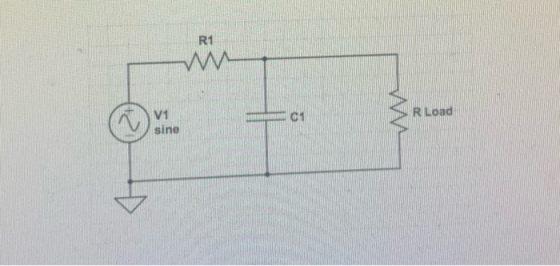

1. Calculate the cutoff frequency of the filter in question if the value of R1 is...
QUESTION 1 Design a second order passive low-pass filter that has a cutoff frequency of 6 KHz by: a. Choosing an appropriate R and C value. (HINT: R1=R2=10K and C1=C2=C) A= C/S V=J/C V=AN 1 H2 = 1/5 F = CN Final Solution: C1=

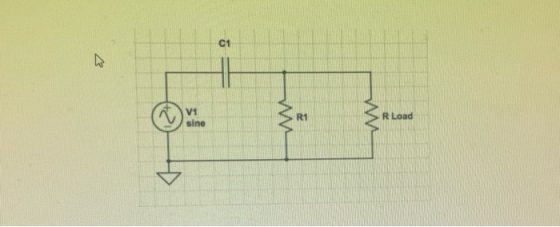

Example 2: For the high pass filter below calculate the cutoff frequency and draw the Bode plot showing the decibel output at fe and 0.1f C1 Vout 0.1uF R1 V1 1Vpk 1KHZ 3.3kQ 0°
Example 2: For the high pass filter below calculate the cutoff frequency and draw the Bode plot showing the decibel output at fe and 0.1f C1 Vout 0.1uF R1 V1 1Vpk 1KHZ 3.3kQ 0°
Design a low pass filter with a cutoff frequency of 1 kHz +/- 100 Hz and a gain of 16.0 dB +/- 1.0 dB in the passband. The R2 and C components of the filter control the cutoff frequency, and are inversely proportional to the cutoff frequency. So decreasing the resistance or capacitance will increase the cutoff frequency. The R1 and Rf components determine the gain of the amplifier. Increasing the value of Rf will increase the gain. Increasing the...
Find The values, C1, C2, L1, L2, R1, R2, R3. The tweeter speaker can reproduce frequencies greater than 6kHz, and the woofer can reproduce frequencies less than 200Hz. For proper sound, the midrange should reproduce all frequencies not produced by the subwoofer or tweeter. C2 C1 L2 V1 L1 R1 R3 R2 Midrange Tweeter Woofer Fig. 2. Equivalent model. The values of Ri, R2, R3, L1, L2, G. and C, are selected so that the filters have the same cutoff...
The op-amp circuit shown in the given figure is used as a
high-pass filter. Assume:
C = 0.2 μF
Ro = 222 ohm
R1 = 2.6 kohm
R2 = 5.5 kohm
Determine the cutoff frequency.
The cutoff frequency is _______ rad/s. (Round the final answer
to two decimal places.)
The op-amp circuit shown in the given figure is used as a high-pass filter. Assume: Ro 222 ohm R1 2.6 kohm R2 5.5 kohm C R References eBook & Resources Section...
Question 1 Design a lowpass filter, with cutoff frequency wc. The maximum gain of the fitler should be A dB, and the filter gain at angular frequency ws should be no more than As dB. Use as few circuit elements as possible. wc 1552(rad/s) A 22,48 (dB) ws 3776 (rad/s) As -17,98 (dB)
Show all work
At what frequency does an 7th order Butterworth filter with cutoff 819 Hz fall to the value of 0.19? State your answer in Hz to two decimal places. You Answered Correct Answr1035.57 margin of error+-3
TE Question 5 (20 marks) An active filter circuit is shown in Fig. 4. The cut-off frequency of this active filter is 1590Hz. The Input impedance and voltage gain of this filter are 10k0 and -5VN respectively Vout R1 vin R2 C1 Fig. 4 By assuming the operational amplifier, A is ideal, answer the following questions: (a) () State the type of this active fiter. (i) Explain the characteristic of this active filter. [2 marks] 3 marks] (b) 0) Calculate...
1. Design a parallel RLC bandpass filter, derive the transfer function H(s). Compute the center frequency, Wo. Calculate the cutoff frequencies Wej and Wc2, the bandwidth ß, and quality factor, Q. Compute values for R and L to yield a bandpass filter with a center frequency of 5kHz and a bandwidth of 200Hz, using a 10nF capacitor. (25 points)
1. Design a parallel RLC bandpass filter, derive the transfer function H(s). Compute the center frequency, Wo. Calculate the cutoff frequencies...
Scale the bandpass filter in (Figure 1) so that the center frequency is 180 kHz and the quality factor is 8, using a 2.5 nF capacitor. Figure < 1 of 1 > 8k 310 mH 10 nF Part A Determine the value of the resistor of the scaled filter Express your answer to three significant figures and include the appropriate units. R = Value Units Submit Request Answer Part B Determine the value of the inductor of the scaled filter...
