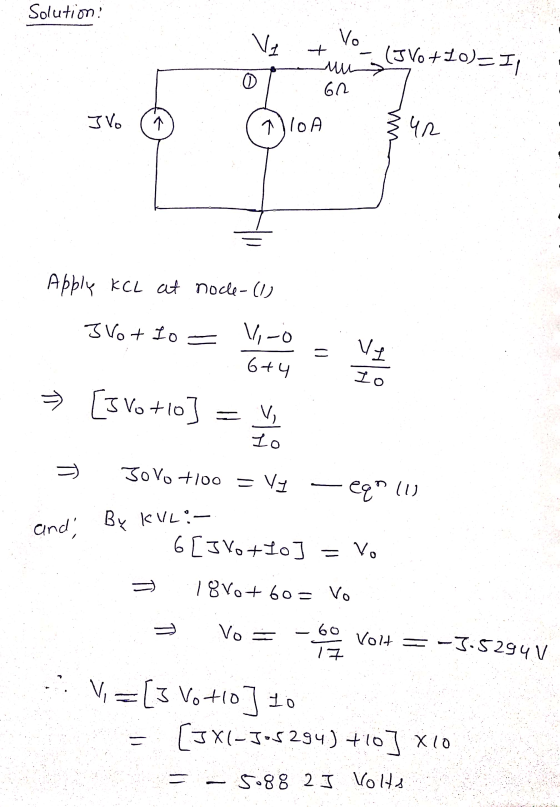

![Solution: Ve + Vo temu O720)=I, 0 IVO 2 601 GIOA Eur Apply KCL at nocle-(1) 3 Votto - o V- 6+4 » [s Vo+lo] = V 3 Jovo +100 =](http://img.homeworklib.com/questions/78668160-1b44-11ec-84d9-3f6393c5c68c.png?x-oss-process=image/resize,w_560)
Add Answer to:

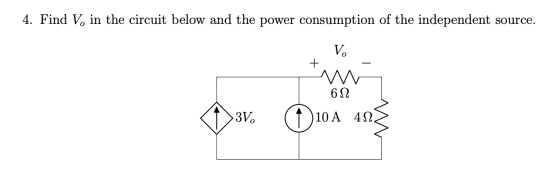

4. Find V. in the circuit below and the power consumption of the independent source. V....
P7. Use Thévenin's theorem to find the power supplied by the 12-V source in circuit below:...
P7. Use Thévenin's theorem to find the power supplied by the 12-V source in circuit below: 2 mA 32 1 kS2 12 V
In the circuit below, the voltage supplied by the power source is 10 V and the...
In the circuit below, the voltage supplied by the power source
is 10 V and the current flowing through the circuit is 0.12
A.
KE3 Prelaboratory Questions E3 - Question 1: Resistance in a Circuit 1 of 5 Review 1 Constants i Periodic Table Part A In the circuit below, the voltage supplied by the power source is 10 V and the current flowing through the circuit is 0.12 A What is the resistance R2? 35 S2 33.75 Submit Previous...
Problem 4: Find the complex power S delivered by the voltage source and the power factor...
Problem 4: Find the complex power S delivered by the voltage source and the power factor seen by the voltage source for the circuit of Figure 4 below. 01 12 4 10 cos 2t v (+ Figure 4
4. Find in the circuit below if V = 4/0° VAMS- Note: use KVL, KCL, and...
4. Find in the circuit below if V = 4/0° VAMS- Note: use KVL, KCL, and Ohm's Law to solve. {0.52 WM 5. Determine the average power and complex power supplied by the source, V , in problem 4.
(9) Determine the amount of power the 4 A current source delivers to the circuit below....
(9) Determine the amount of power the 4 A current source delivers to the circuit below. (Solve using the mesh-current method only, but reflect on the complexity of using node-voltage (Source: Nilsson and Reidel, 9th edition.) 4Ω 120 V 20 Ω 80 V 702 1Ω 4 A
Find Vo in the circuit in fig.286 and the power absorbed by the depent source Find...
Find Vo in the circuit in fig.286 and the power absorbed by the
depent source
Find Vo in the circuit in Fig. 2.86 and the power absorbed by the dependent source. Figure 2.86 1022 - V. + 102 2510 27
In the circuit below, find (a) i, and v (b) O power absorbed by the 6-Ohm...
In the circuit below, find (a) i, and v (b) O power absorbed by the 6-Ohm resistor power delivered by the current source 6Ω 20n3, 24At i,, 90 Ω 10Ω 10Ω
In the following circuit: Vg=24V,ix=2A,β=1.5,V1=12V,V3=3V,V4=4V Find V: Find Vx: Find the power consumed in element 1:...
In the following circuit:
Vg=24V,ix=2A,β=1.5,V1=12V,V3=3V,V4=4V
Find V:
Find Vx:
Find the power consumed in element 1:
Find the power consumed in element 2:
Find the power consumed in element 3:
Find the power consumed in element 4:
Find the power consumed in the independent voltage source:
Find the power consumed in the not independent current
source:
1 + 1 V4 + . + I + L V1 1
Problem 1: Find the power delivered by the 4-A current source in the following circuit. Use...
Problem 1: Find the power delivered by the 4-A current source in the following circuit. Use mesh analysis. 4A 32 422 M w + 128 V 62 301, 222 52
Find Vo and the power absorbed by the dependent source in the given circuit. Assume l...
Find Vo and the power absorbed by the dependent source in the given circuit. Assume l = 26 A. 10 22 + V- 21092 1 42v. The value of Vo is v. The power absorbed by the dependent source is
P7. Use Thévenin's theorem to find the power supplied by the 12-V source in circuit below: 2 mA 32 1 kS2 12 V
In the circuit below, the voltage supplied by the power source
is 10 V and the current flowing through the circuit is 0.12
A.
KE3 Prelaboratory Questions E3 - Question 1: Resistance in a Circuit 1 of 5 Review 1 Constants i Periodic Table Part A In the circuit below, the voltage supplied by the power source is 10 V and the current flowing through the circuit is 0.12 A What is the resistance R2? 35 S2 33.75 Submit Previous...
Problem 4: Find the complex power S delivered by the voltage source and the power factor seen by the voltage source for the circuit of Figure 4 below. 01 12 4 10 cos 2t v (+ Figure 4
4. Find in the circuit below if V = 4/0° VAMS- Note: use KVL, KCL, and Ohm's Law to solve. {0.52 WM 5. Determine the average power and complex power supplied by the source, V , in problem 4.
(9) Determine the amount of power the 4 A current source delivers to the circuit below. (Solve using the mesh-current method only, but reflect on the complexity of using node-voltage (Source: Nilsson and Reidel, 9th edition.) 4Ω 120 V 20 Ω 80 V 702 1Ω 4 A
Find Vo in the circuit in fig.286 and the power absorbed by the
depent source
Find Vo in the circuit in Fig. 2.86 and the power absorbed by the dependent source. Figure 2.86 1022 - V. + 102 2510 27
In the circuit below, find (a) i, and v (b) O power absorbed by the 6-Ohm resistor power delivered by the current source 6Ω 20n3, 24At i,, 90 Ω 10Ω 10Ω
In the following circuit:
Vg=24V,ix=2A,β=1.5,V1=12V,V3=3V,V4=4V
Find V:
Find Vx:
Find the power consumed in element 1:
Find the power consumed in element 2:
Find the power consumed in element 3:
Find the power consumed in element 4:
Find the power consumed in the independent voltage source:
Find the power consumed in the not independent current
source:
1 + 1 V4 + . + I + L V1 1
Problem 1: Find the power delivered by the 4-A current source in the following circuit. Use mesh analysis. 4A 32 422 M w + 128 V 62 301, 222 52
Find Vo and the power absorbed by the dependent source in the given circuit. Assume l = 26 A. 10 22 + V- 21092 1 42v. The value of Vo is v. The power absorbed by the dependent source is
