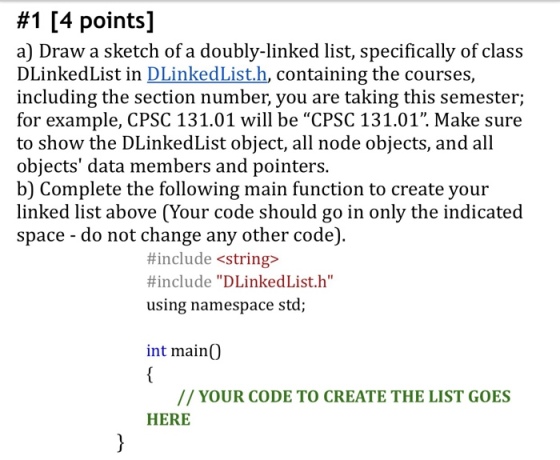

![#1 [4 points] a) Draw a sketch of a doubly-linked list, specifically of class DLinkedList in DLinkedList.h, containing the courses, including the section number, you are taking this semester; for example, CPSC 131.01 will be CPSC 131.01. Make sure to show the DLinkedList object, all node objects, and all objects data members and pointers. b) Complete the following main function to create your linked list above (Your code should go in only the indicated space - do not change any other code). #include <string> #include DLinkedList.h using namespace std; int mainO // YOUR CODE TO CREATE THE LIST GOES HERE](http://img.homeworklib.com/questions/60dcb500-1b5b-11ec-9b02-598399d56814.png?x-oss-process=image/resize,w_560)
Homework Answers
#include <iostream>
#include <string>
#include "DLinkedList.h"
using namespace std;
class Student {
private:
string name;
string course;
int section_number;
public:
void display()
{
cout << "Student Name:" << name << "\t Course Name: " << course << "\t Section Number: " << section_number << endl;
}
void setName(string n)
{
name = n;
}
void setCourse(string c)
{
course = c;
}
void setSection(int sn)
{
section_number = sn;
}
};
int main()
{
DLinkedList<Student> stud;
Student s;
int i;
for (i = 0; i < 5; i++)
{
s.setName("Student" + to_string(i+10));
s.setCourse("CSE");
s.setSection(4);
stud.add_Front(s);
}
for (i = 0; i < 5; i++)
{
s.setName("Student" + to_string(i + 20));
s.setCourse("ME");
s.setSection(5);
stud.add_Back(s); // can also insert at the end
}
while (!stud.check_empty())
{
stud.back_element().display();
stud.remove_Back();
}
}
DLinkedList.h
#include <iostream>
using namespace std;
template <typename T> class DLinkedList; // forward declaration
template <typename T>
// doubly linked list
class Double_Node
{
private:
T element; // node element
Double_Node<T> *prev; // previous node in list
Double_Node<T> *nxt; // next node in list
friend class DLinkedList<T>; // provide SingleLinkedList access
};
template <typename T>
// a doubly linked list
class DLinkedList
{
public:
DLinkedList(); // constructor
~DLinkedList(); // destructor
bool check_empty() const; // check list is empty
T& front_element(); // to get front element
T& back_element(); // to get back element
void add_Front(const T& tt); // add to in front
void add_Back(const T& tt); // add to back
void remove_Front(); // remove from front
void remove_Back(); // remove from back
int size() const; // size of list
private: // local type definitions
int n; // number of items in list
Double_Node<T>* head; // header sentinel
Double_Node<T>* trail; // trailer sentinel
protected:
void insert(Double_Node<T>* v, const T& tt); // insert new node before v
void remove(Double_Node<T>* v); // remove node v
};
template <typename T>
DLinkedList<T>::DLinkedList()
{
// initially list is empty
n = 0;
// create sentinels
head = new Double_Node<T>;
trail = new Double_Node<T>;
head->nxt = trail;
trail->prev = head;
}
template <typename T>
bool DLinkedList<T>::check_empty() const
{
return (head->nxt == trail);
}
template <typename T>
T& DLinkedList<T>::front_element()
{
if (check_empty()) throw length_error("ERROR: List is empty!!!");
return head->nxt->element;
}
template <typename T>
T& DLinkedList<T>::back_element()
{
if (check_empty()) throw length_error("ERROR: List is Empty!!!");
return trail->prev->element;
}
template <typename T>
DLinkedList<T>::~DLinkedList()
{
// remove the sentinels
while (!check_empty()) remove_Front();
delete head;
delete trail;
}
template <typename T>
void DLinkedList<T>::insert(Double_Node<T>* v, const T& tt)
{
Double_Node<T>* u = new Double_Node<T>; // create a new node
u->element = tt;
u->nxt = v;
u->prev = v->prev;
v->prev->nxt = u;
v->prev = u;
n++;
}
template <typename T>
void DLinkedList<T>::add_Front(const T& tt)
{
insert(head->nxt, tt);
}
template <typename T>
void DLinkedList<T>::add_Back(const T& tt)
{
insert(trail, tt);
}
template <typename T>
// remove node v
void DLinkedList<T>::remove(Double_Node<T>* v)
{
Double_Node<T>* u = v->prev; // predecessor
Double_Node<T>* w = v->nxt; // successor
u->nxt = w;
w->prev = u;
delete v;
n--;
}
template <typename T>
void DLinkedList<T>::remove_Front()
{
if (check_empty()) throw length_error("ERROR: List is empty!!!");
remove(head->nxt);
}
template <typename T>
void DLinkedList<T>::remove_Back()
{
if (check_empty()) throw length_error("ERROR: List is empty!!!");
remove(trail->prev);
}
template <typename T>
int DLinkedList<T>::size() const
{
return n;
}
