Homework Answers
Add Answer to:

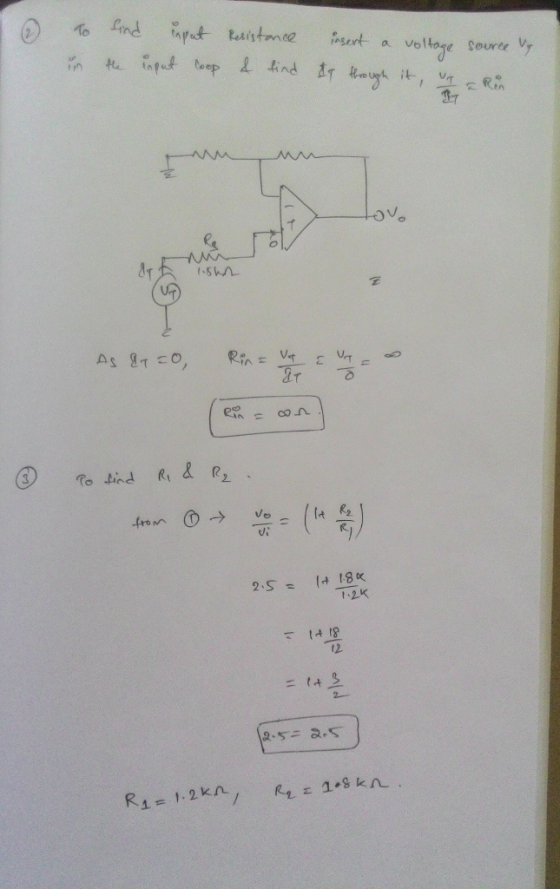

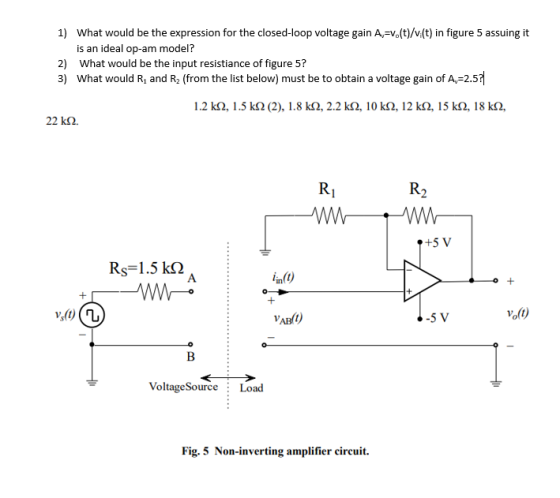

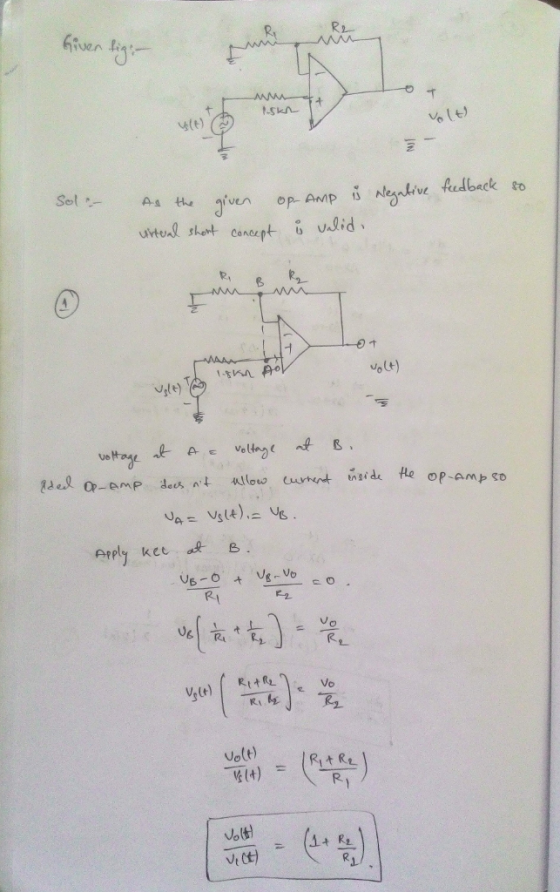

What would be the expression for the closed-loop voltage gain A-Vo(t)/v(t) in figure 5 assuing it...
a The operational amplifier in Figure 3.a has a slew rate of 0.5V/us and a unity gain bandwid of 5 MHz. Determine () the voltage gain, and (ii) the maximum input frequency such that the output wa...
a The operational amplifier in Figure 3.a has a slew rate of 0.5V/us and a unity gain bandwid of 5 MHz. Determine () the voltage gain, and (ii) the maximum input frequency such that the output waveform is undistorted. with Vpeak 1V and frequency f. () Determine the cutoff frequency, (ii) plot, to scale, the you use this integrator if the input frequency is 30 KHz? Explain your answer. that any feedback resistance is fixed to 5k2. b. In the...
Good morning, I need help with the following, they all relate to OP Amps. Thanks in advance. 2 value 10.00 points Problem 05.010 An op amp voltage divider Find the voltage gain vo/vs of the circ...
Good morning, I need help with the following, they all relate to
OP Amps. Thanks in advance.
2 value 10.00 points Problem 05.010 An op amp voltage divider Find the voltage gain vo/vs of the circuit given below, where R1-18 kΩ and R2-14 k 2. 20 kΩ R1 1% R2 The voltage gain vo/vs of the circuit is Hints Referene eBook & Resources Hint#1 Check my work 3. 1000 points value Problem 05.025-Voltage follower Calculate the output voltage vo in...
For the Op Amp circuit in Fig. 2.1. Infer the expression of Yout () / vin...
For the Op Amp circuit in Fig. 2.1. Infer the expression of Yout () / vin (s). (5) R2 R w 200 K2 RS R www + Vina(s) 40 KR 40 ΚΩ R4 w 50 KS2 50 ΚΩ R + V out in out 1 Fig. 2.1. Fig. 2.2 *For the Op Amp in Fig. 2.2. Evaluate the Av. (5) *Recommend a generalized Op Amp amplifier which processes sin wave into a cosine wave (1-5), a square wave into a...
Problem 4 : The op amp is ideal, if the closed - loop gain of the...
Problem 4
:
The
op amp is ideal, if the closed
-
loop gain of the
following circuit is G=v
0
/v
s
=
-
5
0
, calculate
the value of the unknown resistor R
x
.
Figure 4
Problem 4: The op amp is ideal, if the closed-loop gain of the following circuit is G-Vo/vis 50, calculate e value of the unknown resistor Rx 5 ΚΩ 50 KS2 2 ΚΩ Figure 4
c) In estimating DC imperfections (input offset voltage, input offset current and the inverting amplifier with...
c) In estimating DC imperfections (input offset voltage, input offset current and the inverting amplifier with nominal gain of -100 using 1 current) of an op-map, an and 10MQ resistors is implemented using the op-amp as shown in Fig 2(a) below R2 10MQ R 100k Vi Vo Figure 2(a): Inverting amplifier Measurements are conducted on the output voltage of the inverting amplifier under the following conditions: (i) the input (V) is open circuited and the output voltage is found to...
please show steps, and solve asap BEE 433 Electronic Circuit Design Problem Set #1 Due date:...
please show steps, and solve asap
BEE 433 Electronic Circuit Design Problem Set #1 Due date: Answer the following problems and Circle the answers. 1.1 (Fig. 1.1 from the textbook) In the voltage amplifier circuit of Fig. 1.1, let vs = 100 mV, Rs = 100 k 52, Vi = 75 mV, RL = 10 S2, and vo = 2 V. If connecting a 30-S2 resistance in parallel with RL drops vo to 1.8 V, find Ri, A., and R....
56 kO io The following op amp is ideal Calculate the closed-loop gain, vo , vi...
56 kO io The following op amp is ideal Calculate the closed-loop gain, vo , vi At what value of vi does the amplifier saturate? Find vo and 'o for vi = 0.5 V and Vi = 2 V 22 kΩ Vo Vi 100 Ω
Find closed loop gain and i0 he circuit 8.28. For Fig. 8.58, using ideal op-amp model,...
Find closed loop gain and i0
he circuit 8.28. For Fig. 8.58, using ideal op-amp model, cal- at choice Vinl to culate the closed-loop gain . Also find io when us 1.2V. 12 0 V2 + io 20 kQ + 2.5 k2 Vo 10 k Figure 8.58
he circuit 8.28. For Fig. 8.58, using ideal op-amp model, cal- at choice Vinl to culate the closed-loop gain . Also find io when us 1.2V. 12 0 V2 + io 20 kQ...
Assuming an ideal op-amp in the following circuit, find output voltage, Vo if R1= 2 K2,...
Assuming an ideal op-amp in the following circuit, find output voltage, Vo if R1= 2 K2, R2=8 K12, R3=3.8 KS2, R4=6 KI2, R5=15 KS2, R6=3.8 KN, RL=9.8 K12, V1=1V, 12=0.5 mA and V3=2.2 V. } R6 R1 w R5 w + Vo + } RL 12 R2 V1 R3 R4 + +1 V3 Using the above circuit, but consider the following component values: R1= 2 KN R2=8 K2, R3=4.1 K12, R4=6 KI2, R5=17.0 K12, R6=15 KI, RL=10 KI, V1=1V, 12=0.5mA...
12. The open-loop voltage gain ("A') of an ideal operational amplifier is 1. infinite 2. unity...
12. The open-loop voltage gain ("A') of an ideal operational amplifier is 1. infinite 2. unity 3. zero 4. inverting 5. non-invertinsg 2 13. If(Vii-Vo)-0 then the output of an ideal operational amplifier is 1. inverting 2. unity 3. infinite 4. zero 5. non-inverting 2
a The operational amplifier in Figure 3.a has a slew rate of 0.5V/us and a unity gain bandwid of 5 MHz. Determine () the voltage gain, and (ii) the maximum input frequency such that the output waveform is undistorted. with Vpeak 1V and frequency f. () Determine the cutoff frequency, (ii) plot, to scale, the you use this integrator if the input frequency is 30 KHz? Explain your answer. that any feedback resistance is fixed to 5k2. b. In the...
Good morning, I need help with the following, they all relate to
OP Amps. Thanks in advance.
2 value 10.00 points Problem 05.010 An op amp voltage divider Find the voltage gain vo/vs of the circuit given below, where R1-18 kΩ and R2-14 k 2. 20 kΩ R1 1% R2 The voltage gain vo/vs of the circuit is Hints Referene eBook & Resources Hint#1 Check my work 3. 1000 points value Problem 05.025-Voltage follower Calculate the output voltage vo in...
For the Op Amp circuit in Fig. 2.1. Infer the expression of Yout () / vin (s). (5) R2 R w 200 K2 RS R www + Vina(s) 40 KR 40 ΚΩ R4 w 50 KS2 50 ΚΩ R + V out in out 1 Fig. 2.1. Fig. 2.2 *For the Op Amp in Fig. 2.2. Evaluate the Av. (5) *Recommend a generalized Op Amp amplifier which processes sin wave into a cosine wave (1-5), a square wave into a...
Problem 4
:
The
op amp is ideal, if the closed
-
loop gain of the
following circuit is G=v
0
/v
s
=
-
5
0
, calculate
the value of the unknown resistor R
x
.
Figure 4
Problem 4: The op amp is ideal, if the closed-loop gain of the following circuit is G-Vo/vis 50, calculate e value of the unknown resistor Rx 5 ΚΩ 50 KS2 2 ΚΩ Figure 4
c) In estimating DC imperfections (input offset voltage, input offset current and the inverting amplifier with nominal gain of -100 using 1 current) of an op-map, an and 10MQ resistors is implemented using the op-amp as shown in Fig 2(a) below R2 10MQ R 100k Vi Vo Figure 2(a): Inverting amplifier Measurements are conducted on the output voltage of the inverting amplifier under the following conditions: (i) the input (V) is open circuited and the output voltage is found to...
please show steps, and solve asap
BEE 433 Electronic Circuit Design Problem Set #1 Due date: Answer the following problems and Circle the answers. 1.1 (Fig. 1.1 from the textbook) In the voltage amplifier circuit of Fig. 1.1, let vs = 100 mV, Rs = 100 k 52, Vi = 75 mV, RL = 10 S2, and vo = 2 V. If connecting a 30-S2 resistance in parallel with RL drops vo to 1.8 V, find Ri, A., and R....
56 kO io The following op amp is ideal Calculate the closed-loop gain, vo , vi At what value of vi does the amplifier saturate? Find vo and 'o for vi = 0.5 V and Vi = 2 V 22 kΩ Vo Vi 100 Ω
Find closed loop gain and i0
he circuit 8.28. For Fig. 8.58, using ideal op-amp model, cal- at choice Vinl to culate the closed-loop gain . Also find io when us 1.2V. 12 0 V2 + io 20 kQ + 2.5 k2 Vo 10 k Figure 8.58
he circuit 8.28. For Fig. 8.58, using ideal op-amp model, cal- at choice Vinl to culate the closed-loop gain . Also find io when us 1.2V. 12 0 V2 + io 20 kQ...
Assuming an ideal op-amp in the following circuit, find output voltage, Vo if R1= 2 K2, R2=8 K12, R3=3.8 KS2, R4=6 KI2, R5=15 KS2, R6=3.8 KN, RL=9.8 K12, V1=1V, 12=0.5 mA and V3=2.2 V. } R6 R1 w R5 w + Vo + } RL 12 R2 V1 R3 R4 + +1 V3 Using the above circuit, but consider the following component values: R1= 2 KN R2=8 K2, R3=4.1 K12, R4=6 KI2, R5=17.0 K12, R6=15 KI, RL=10 KI, V1=1V, 12=0.5mA...
12. The open-loop voltage gain ("A') of an ideal operational amplifier is 1. infinite 2. unity 3. zero 4. inverting 5. non-invertinsg 2 13. If(Vii-Vo)-0 then the output of an ideal operational amplifier is 1. inverting 2. unity 3. infinite 4. zero 5. non-inverting 2
