Reference Book: CONTROL SYSTEMS ENGINEERING By Nise N.S
Add Answer to:

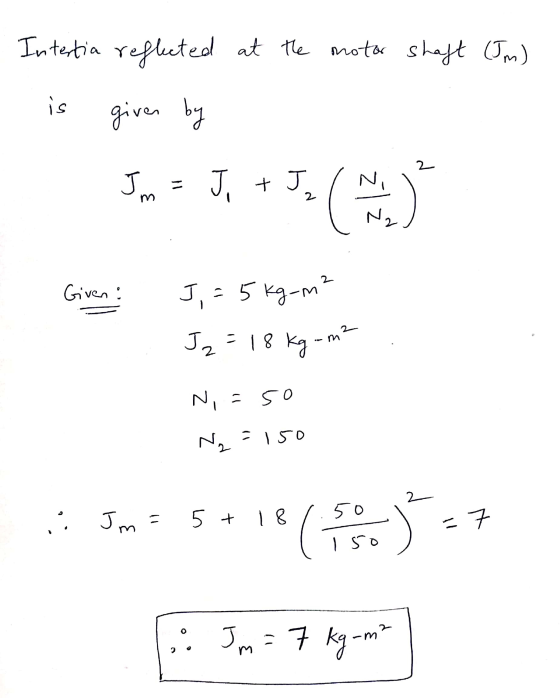

Question 3 (5 points) For the electro-mechanical system below, what is the inertia reflected at the...
Draw the diagram for the unity feedback control system, that is, the electro-mechanical system wi...
Draw the diagram for the unity feedback control system, that is, the electro-mechanical system with controller and feedback using general parameters. 3) 4) Calculate K and K using the Torque-Speed curve (Figure 2), and information from Table 1 the translational link. The robot has an torque motor for a joint in Flgure1 ropresents a Single Joint robot model wnh Figure 1: Singla Joint Robot Model TONm) 恭.east Figure 2: Torque-Speed Qurve J Ikgm21-Armature Inertia DArmature Damping Coefficient R, [ohm]-Armature Resistance...
u(t) ta(t) e(t) A DC motor is a electro-mechanical system, where mechanical motor is coupled with...
u(t) ta(t) e(t) A DC motor is a electro-mechanical system, where mechanical motor is coupled with an electrical circuit. The motor shows up in the circuit equation as a voltage loss proportional to the motor speed, and the electrical system shows up as the input torque proportional to the armatura current DC motor equations are given by dw(t) dialt) where J is the mass moment of inertia in kg-m2, b is the damping coefficient in N-m-s, K is the motor...
θ2(s)/T(s) for the following rotational mechanical system Problem 4: Find the transfer function G(s) TO) N1...
θ2(s)/T(s) for the following rotational mechanical system Problem 4: Find the transfer function G(s) TO) N1 = 4 Di 1 N-m-s/rad N2 121 kg-m2 N3-4 D2-2 N-m-s/rad K 64 N-m/rad- N4 16 D3 32 N-m-s/rad -16 kg-m2 000
2. A motor with armature moment of inertia,Ja 0.02 kg-m2, is directly coupled to a m ass Jı = 0.0...
2. A motor with armature moment of inertia,Ja 0.02 kg-m2, is directly coupled to a m ass Jı = 0.06 kg-m2. The motor is also con nected to a massless gearbox with N1-15 teeth on the input side and N2 75 teeth on the output side. Coupled to the gearbox output shaft is a load, J 1 kg m2. Refer to the figure, below It is desired to rotate the load three revolutions in 0.7 seconds using a trapezoidal velocity...
2. A motor with armature moment of inertia,Ja 0.02 kg-m2, is directly coupled to a m ass Jı = 0.0...
2. A motor with armature moment of inertia,Ja 0.02 kg-m2, is directly coupled to a m ass Jı = 0.06 kg-m2. The motor is also con nected to a massless gearbox with N1-15 teeth on the input side and N2 75 teeth on the output side. Coupled to the gearbox output shaft is a load, J 1 kg m2. Refer to the figure, below It is desired to rotate the load three revolutions in 0.7 seconds using a trapezoidal velocity...
Question 1 Figure Q1 shows a mechanical system. The system input is T) and output is supposed to ...
Please write down the steps by steps solution, thank
you!
Question 1 Figure Q1 shows a mechanical system. The system input is T) and output is supposed to be 0. Please find the transfer function from T to θ 3, and discuss the stability of the system if the input is a unit impulse signal. (30 marks) To 01(t) 01t) I kg-m2 N 10 030) N2 100 100 kg-m2 100 N-m/rad 100 N-m-s/rad Figure Q1
Question 1 Figure Q1 shows...
Question 3 Find the transfer function, G(s) s) / T(s), for the rotational mechanical system in...
Question 3 Find the transfer function, G(s) s) / T(s), for the rotational mechanical system in Fig. Q3 below. The gears have inertia and bearing friction as shown. (20 marks) 3 Nm/rad 2 Nms/rad + 1 kg/m? N3 = 100 N2 = 100 T(t) N4 = 20 N = 20 0.04 Nms/rad Fig. Q3
6. For the following mechanical system: a) Find a mathematical model b) Find the transfer functio...
6. For the following mechanical system: a) Find a mathematical model b) Find the transfer function, G(s) = c Find impulse, step and ramp response by using MATLAB functions d) Find harmonic response by using MATLAB SIMULINK T(s) 2 N-m-s/rad 2 N-m/rad N2-20 T0) l kg-m2 N3-40 010 N1-5 N4-10 0.02 N-m-s/radl
6. For the following mechanical system: a) Find a mathematical model b) Find the transfer function, G(s) = c Find impulse, step and ramp response by using MATLAB...
Control Systems For the motor, load, and torque-speed curve shown below, find the transfer function Ra...
Control Systems
For the motor, load, and torque-speed curve shown below, find the transfer function Ra N50 ealt) JI = 5 kg-m- Di= 8 N-m-s/rad θ1(1) N2 150 D2- 36 N-m-s/rad T (N-m) 100 50 V ω (rad/s) 150
em 2 (20 Points Total): The figure below shows a motor (characterized by an inertia J,...
em 2 (20 Points Total): The figure below shows a motor (characterized by an inertia J, and a rotational ping Orl) driving a flywheel with a bearing (characterized by a second inertia J; and a rotational damping bra through a set of gears with radii R. and R. The input is a motor torque M.0), and the coordinates are defined as shown in the figure. Assume the shafts are rigid. 02,6 flywheel bile J byl motor M.,,, Complete the following....
Draw the diagram for the unity feedback control system, that is, the electro-mechanical system with controller and feedback using general parameters. 3) 4) Calculate K and K using the Torque-Speed curve (Figure 2), and information from Table 1 the translational link. The robot has an torque motor for a joint in Flgure1 ropresents a Single Joint robot model wnh Figure 1: Singla Joint Robot Model TONm) 恭.east Figure 2: Torque-Speed Qurve J Ikgm21-Armature Inertia DArmature Damping Coefficient R, [ohm]-Armature Resistance...
u(t) ta(t) e(t) A DC motor is a electro-mechanical system, where mechanical motor is coupled with an electrical circuit. The motor shows up in the circuit equation as a voltage loss proportional to the motor speed, and the electrical system shows up as the input torque proportional to the armatura current DC motor equations are given by dw(t) dialt) where J is the mass moment of inertia in kg-m2, b is the damping coefficient in N-m-s, K is the motor...
θ2(s)/T(s) for the following rotational mechanical system Problem 4: Find the transfer function G(s) TO) N1 = 4 Di 1 N-m-s/rad N2 121 kg-m2 N3-4 D2-2 N-m-s/rad K 64 N-m/rad- N4 16 D3 32 N-m-s/rad -16 kg-m2 000
2. A motor with armature moment of inertia,Ja 0.02 kg-m2, is directly coupled to a m ass Jı = 0.06 kg-m2. The motor is also con nected to a massless gearbox with N1-15 teeth on the input side and N2 75 teeth on the output side. Coupled to the gearbox output shaft is a load, J 1 kg m2. Refer to the figure, below It is desired to rotate the load three revolutions in 0.7 seconds using a trapezoidal velocity...
2. A motor with armature moment of inertia,Ja 0.02 kg-m2, is directly coupled to a m ass Jı = 0.06 kg-m2. The motor is also con nected to a massless gearbox with N1-15 teeth on the input side and N2 75 teeth on the output side. Coupled to the gearbox output shaft is a load, J 1 kg m2. Refer to the figure, below It is desired to rotate the load three revolutions in 0.7 seconds using a trapezoidal velocity...
Please write down the steps by steps solution, thank
you!
Question 1 Figure Q1 shows a mechanical system. The system input is T) and output is supposed to be 0. Please find the transfer function from T to θ 3, and discuss the stability of the system if the input is a unit impulse signal. (30 marks) To 01(t) 01t) I kg-m2 N 10 030) N2 100 100 kg-m2 100 N-m/rad 100 N-m-s/rad Figure Q1
Question 1 Figure Q1 shows...
Question 3 Find the transfer function, G(s) s) / T(s), for the rotational mechanical system in Fig. Q3 below. The gears have inertia and bearing friction as shown. (20 marks) 3 Nm/rad 2 Nms/rad + 1 kg/m? N3 = 100 N2 = 100 T(t) N4 = 20 N = 20 0.04 Nms/rad Fig. Q3
6. For the following mechanical system: a) Find a mathematical model b) Find the transfer function, G(s) = c Find impulse, step and ramp response by using MATLAB functions d) Find harmonic response by using MATLAB SIMULINK T(s) 2 N-m-s/rad 2 N-m/rad N2-20 T0) l kg-m2 N3-40 010 N1-5 N4-10 0.02 N-m-s/radl
6. For the following mechanical system: a) Find a mathematical model b) Find the transfer function, G(s) = c Find impulse, step and ramp response by using MATLAB...
Control Systems
For the motor, load, and torque-speed curve shown below, find the transfer function Ra N50 ealt) JI = 5 kg-m- Di= 8 N-m-s/rad θ1(1) N2 150 D2- 36 N-m-s/rad T (N-m) 100 50 V ω (rad/s) 150
em 2 (20 Points Total): The figure below shows a motor (characterized by an inertia J, and a rotational ping Orl) driving a flywheel with a bearing (characterized by a second inertia J; and a rotational damping bra through a set of gears with radii R. and R. The input is a motor torque M.0), and the coordinates are defined as shown in the figure. Assume the shafts are rigid. 02,6 flywheel bile J byl motor M.,,, Complete the following....
