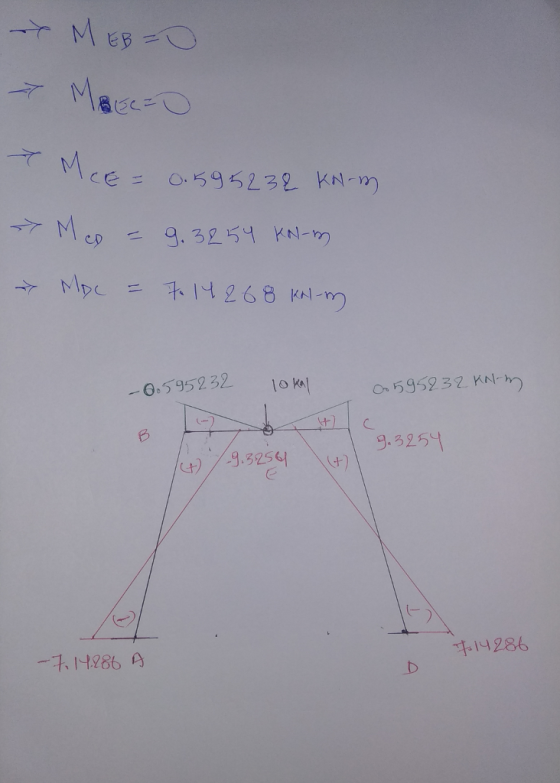

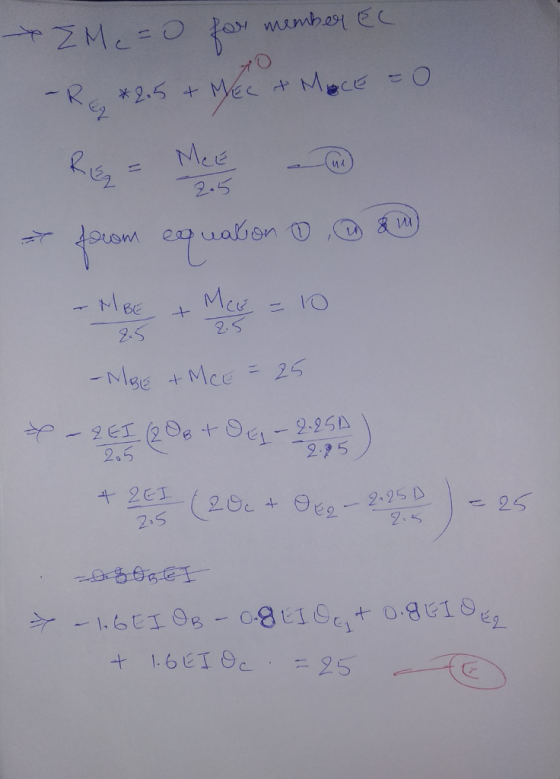

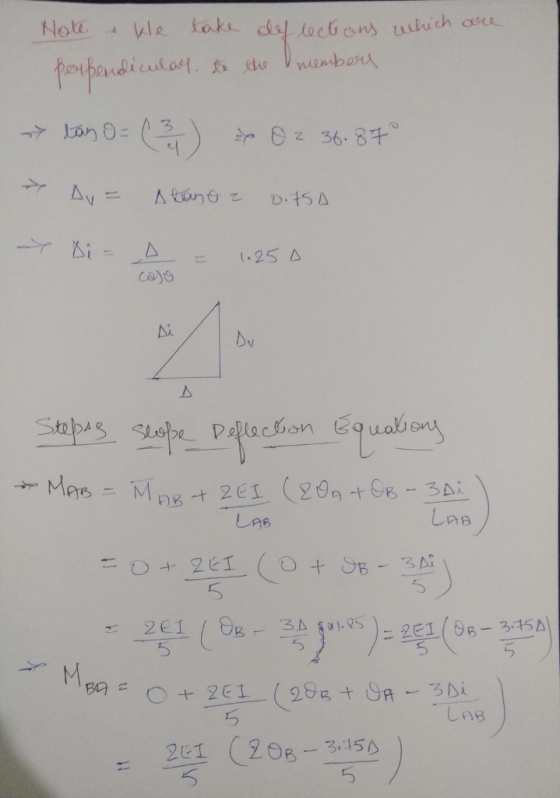

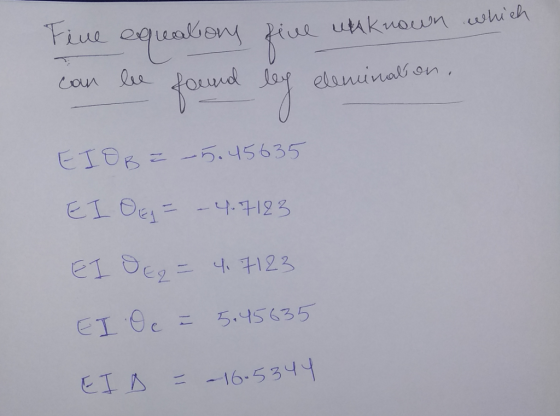

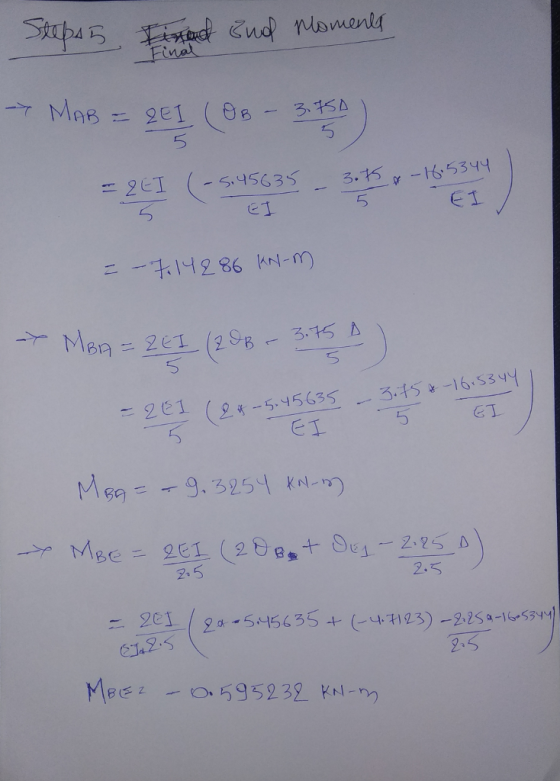

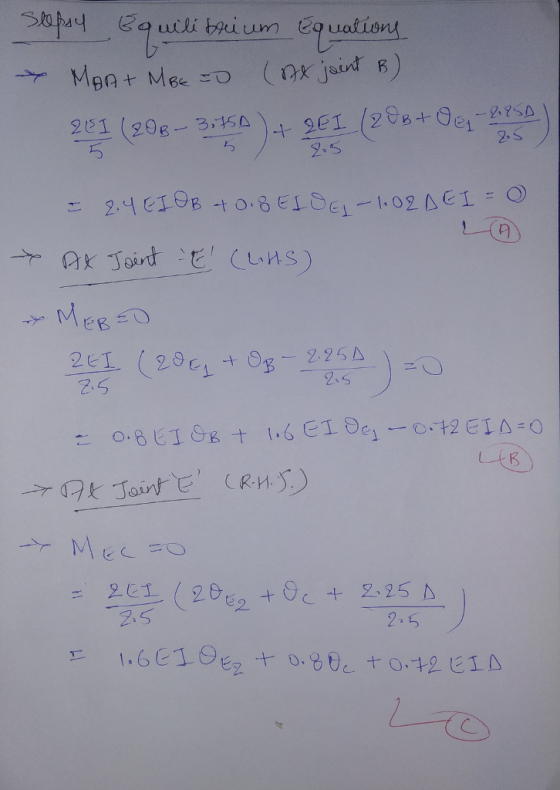

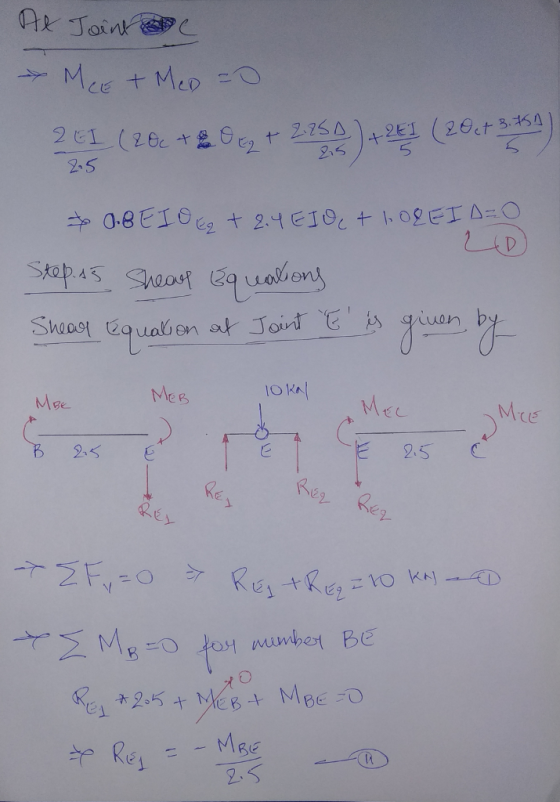

Please solve all unknowns

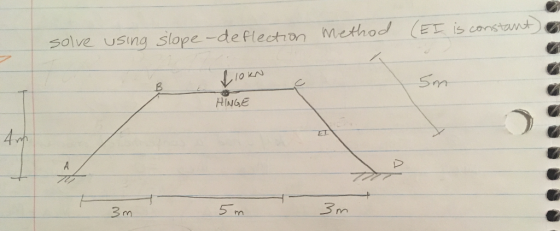

using slope-deflection method, EI is constant. There is a hinge in
the exact middle of member BC, and I'm not sure how this affects
the analysis, and the moments. Please provide a written explanation
about how to deal with the hinge. Thank you!
