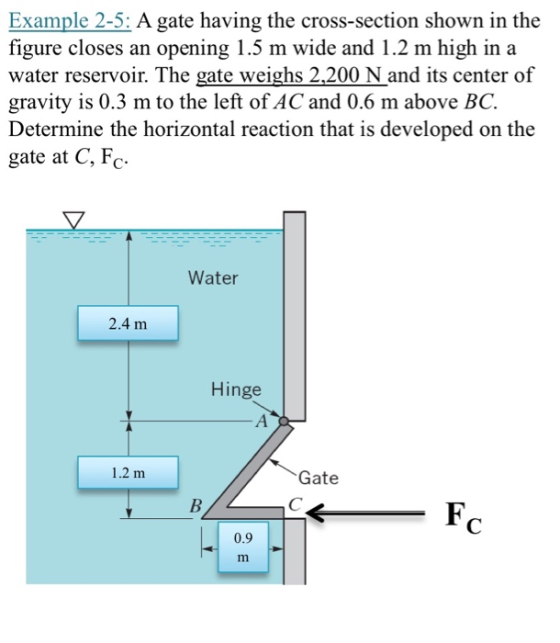

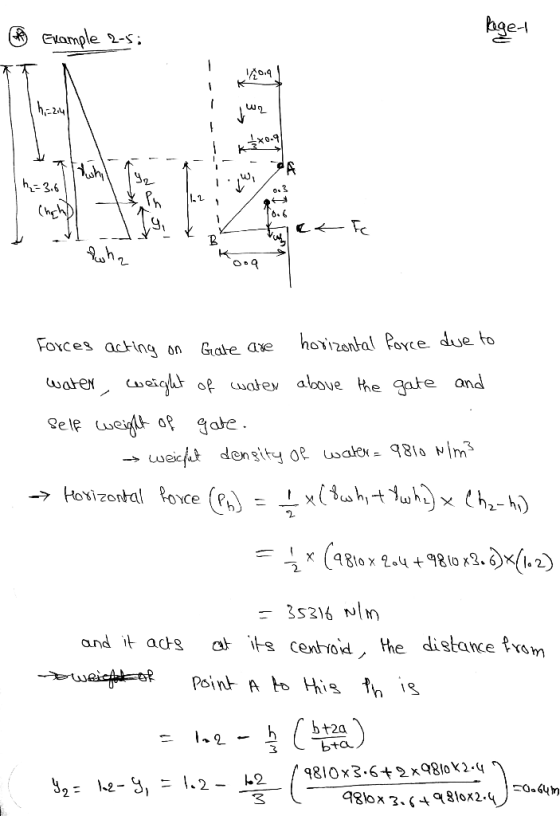

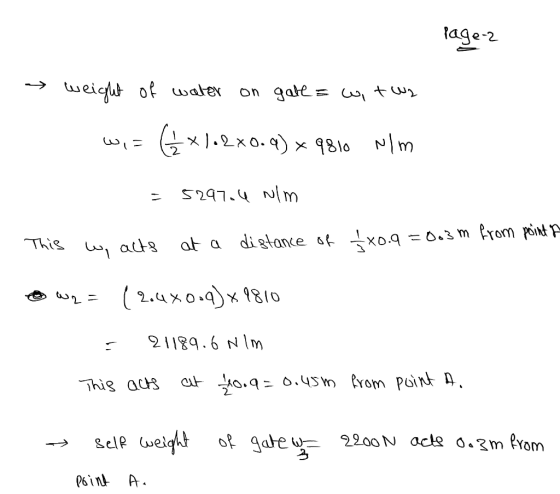

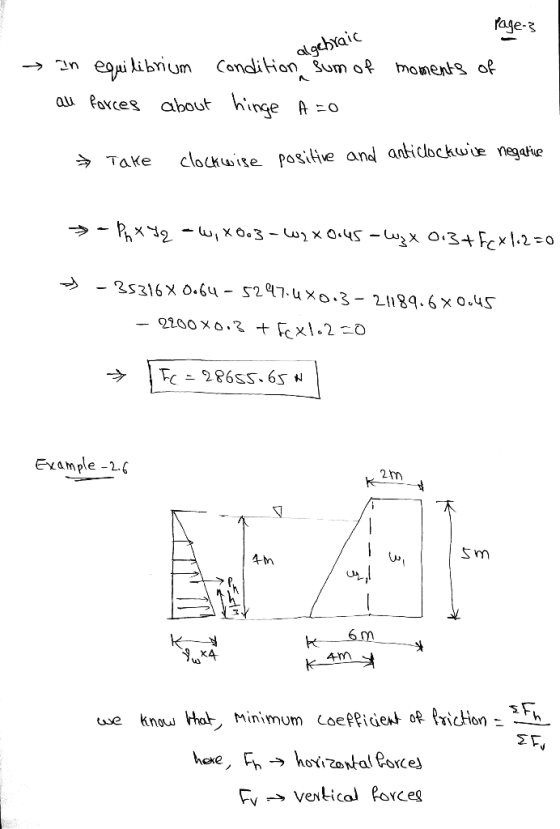

Example 2-5: A gate having the cross-section shown in the figure closes an opening 1.5 m...
1. The concrete dam shown in the Figure weighs 23.6 kN/m² and rests on a solid...

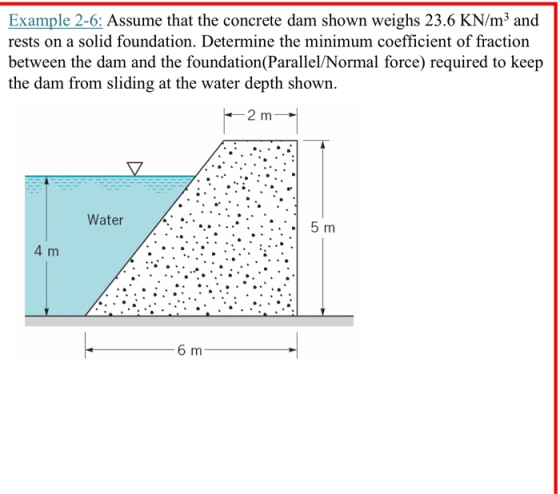

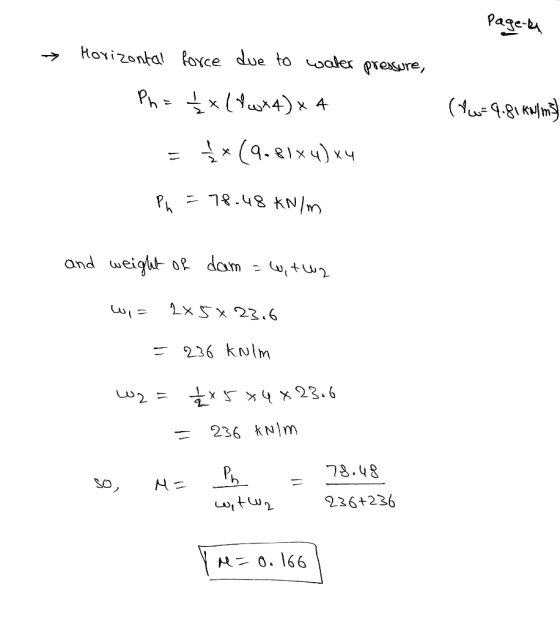

1. The concrete dam shown in the Figure weighs 23.6 kN/m² and rests on a solid foundation. Determine the minimum coefficient of friction between the dam and the foundation required to keep the dam from sliding. Base your analysis on a unit length of the dam.
1. A gate, shown in Fig. Q1, is 1.5 m wide, is hinged at point A...
1. A gate, shown in Fig. Q1, is 1.5 m wide, is hinged at point A and rests against a wall at point B. The fluid is water and the free surface is open to the atmosphere. Calculate (G) the force on the gate due to pressure exerted by the water, and (ii) by taking moments about point A, the horizontal force exerted by the wall at point B. (10 marks) (15 marks) Pa I water 4.5 m 1.8 m...
The cross section of a concrete dam is shown in the figure below. For a 0.3...
The cross section of a concrete dam is shown in the figure
below. For a 0.3 m wide dam section, determine the result of the
pressure forces exerted by the water on the BC face of the dam. Use
ρ = 10³ kg / m³ for the specific water mass.
= 6,3 m r = 6.3 m Dado: X 4R/3
Problem 2 The rectangular gate CAB, shown in cross section, is L=1.5 m high and w=2...
Problem 2 The rectangular gate CAB, shown in cross section, is L=1.5 m high and w=2 m wide (into the page). The water has a depth of d=1 m on one side of the gate. The gate is pinned at A and is restrained by a smooth stopper at B that bears horizontally against the lower edge of the plate. The gate has a mass per area of m=27.18 kg/m² (already accounting for the thickness of the gate). Ignoring the...
CEES2223 Final Exam 1261s (7 points) Water is held in position as shown by a 3-m wide by 2 -m.tong gular gate. The gate is hinged at the top and rests on a smooth bottom termine the reaction of the h...
CEES2223 Final Exam 1261s (7 points) Water is held in position as shown by a 3-m wide by 2 -m.tong gular gate. The gate is hinged at the top and rests on a smooth bottom termine the reaction of the hinge and the reaction from the bottom ot the tank
CEES2223 Final Exam 1261s (7 points) Water is held in position as shown by a 3-m wide by 2 -m.tong gular gate. The gate is hinged at the top and...
Q.5) Water backs up behind a concrete dam as shown in Figure below. Leakage under the...
Q.5) Water backs up behind a concrete dam as shown in Figure below. Leakage under the foundation gives a linear pressure distribution under the base of the concrete dam as shown in Figure. If the water depth H, is too great, the dam will topple over about its toe (Point A). For the dimensions given, determine the maximum water depth. Base your analysis on a unit length of the dam. The specific weight of the concrete is 23.7 kN/m”. (Answer...
The massless, 2-ft-wide gate shown in the figure below pivots about the frictionless hinge O. It...
The massless, 2-ft-wide gate shown in the figure below pivots about the frictionless hinge O. It is held in place by the 1950 lb counterweight, W. Determine the water depth, h.
In the crest gate in a dam shown, surface AB forms the arc of a circle of 3 m radius subtending 5 at the hinge. The gate is 3 m long with water surface at B. Compute the amount and location of t...
In the crest gate in a dam shown, surface AB forms the arc of a circle of 3 m radius subtending 5 at the hinge. The gate is 3 m long with water surface at B. Compute the amount and location of the horizontal and vertical components of the total hydrostatic force on AB. Determine also the amount and direction of their resultant. 2. 2 m 3
In the crest gate in a dam shown, surface AB forms the arc...
Example The 4-m-diameter circular gate of the- figure is located in the inclined wall of a...
Example The 4-m-diameter circular gate of the- figure is located in the inclined wall of a large reservoir containing water (y 9.80 kN/m3 gp along its horizontal diameter, and the water depth is 10 m at the shaft. 60° ). The gate is mounted on a shaft O Determine: Cb) the magnitude and location of the resultant A Center of pressure force exerted on the gate by the water the moment that would have to be applied to the shaft...
A 1-m-diameter cylindrical mass, M, is connected to a 2-m wide rectangular gate as shown in...
A 1-m-diameter cylindrical mass, M, is connected to a 2-m wide rectangular gate as shown in the figure. The gate is to open when the water level, h, drops below 2.0 m. Determine the required value for M. Neglect friction at the gate hinge and the pulley. 4m Water -1-m- diameter im
1. The concrete dam shown in the Figure weighs 23.6 kN/m² and rests on a solid foundation. Determine the minimum coefficient of friction between the dam and the foundation required to keep the dam from sliding. Base your analysis on a unit length of the dam.
1. A gate, shown in Fig. Q1, is 1.5 m wide, is hinged at point A and rests against a wall at point B. The fluid is water and the free surface is open to the atmosphere. Calculate (G) the force on the gate due to pressure exerted by the water, and (ii) by taking moments about point A, the horizontal force exerted by the wall at point B. (10 marks) (15 marks) Pa I water 4.5 m 1.8 m...
The cross section of a concrete dam is shown in the figure
below. For a 0.3 m wide dam section, determine the result of the
pressure forces exerted by the water on the BC face of the dam. Use
ρ = 10³ kg / m³ for the specific water mass.
= 6,3 m r = 6.3 m Dado: X 4R/3
Problem 2 The rectangular gate CAB, shown in cross section, is L=1.5 m high and w=2 m wide (into the page). The water has a depth of d=1 m on one side of the gate. The gate is pinned at A and is restrained by a smooth stopper at B that bears horizontally against the lower edge of the plate. The gate has a mass per area of m=27.18 kg/m² (already accounting for the thickness of the gate). Ignoring the...
CEES2223 Final Exam 1261s (7 points) Water is held in position as shown by a 3-m wide by 2 -m.tong gular gate. The gate is hinged at the top and rests on a smooth bottom termine the reaction of the hinge and the reaction from the bottom ot the tank
CEES2223 Final Exam 1261s (7 points) Water is held in position as shown by a 3-m wide by 2 -m.tong gular gate. The gate is hinged at the top and...
Q.5) Water backs up behind a concrete dam as shown in Figure below. Leakage under the foundation gives a linear pressure distribution under the base of the concrete dam as shown in Figure. If the water depth H, is too great, the dam will topple over about its toe (Point A). For the dimensions given, determine the maximum water depth. Base your analysis on a unit length of the dam. The specific weight of the concrete is 23.7 kN/m”. (Answer...
In the crest gate in a dam shown, surface AB forms the arc of a circle of 3 m radius subtending 5 at the hinge. The gate is 3 m long with water surface at B. Compute the amount and location of the horizontal and vertical components of the total hydrostatic force on AB. Determine also the amount and direction of their resultant. 2. 2 m 3
In the crest gate in a dam shown, surface AB forms the arc...
Example The 4-m-diameter circular gate of the- figure is located in the inclined wall of a large reservoir containing water (y 9.80 kN/m3 gp along its horizontal diameter, and the water depth is 10 m at the shaft. 60° ). The gate is mounted on a shaft O Determine: Cb) the magnitude and location of the resultant A Center of pressure force exerted on the gate by the water the moment that would have to be applied to the shaft...
A 1-m-diameter cylindrical mass, M, is connected to a 2-m wide rectangular gate as shown in the figure. The gate is to open when the water level, h, drops below 2.0 m. Determine the required value for M. Neglect friction at the gate hinge and the pulley. 4m Water -1-m- diameter im
