Homework Answers
induced current is given by
i = emduced emf / Resistance
i = BL v sin ( 90 - x) / R = BLv cos x / R
now, considering equilibrium of force
force acts on wire = force acts due to gravity
Bi L sin (90-x) = mg sin x
B ( BLv cos x) L cos x = mg sin x
0.5^2*0.25^2* (cos 3)^2 v / 0.8 = 0.04* 9.8* sin 3
v = 1.053 m/s
======
Comment before rate in case any doubt, will reply for sure.. goodluck
Add Answer to:

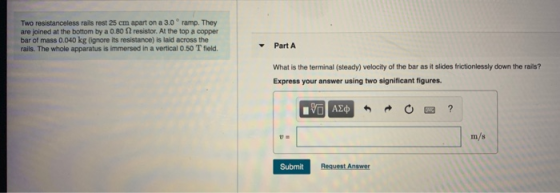

Two resistanceless rails rest 25 cm apart on a 3.0 ramp. They are joined at the...
