Homework Answers
Add Answer to:

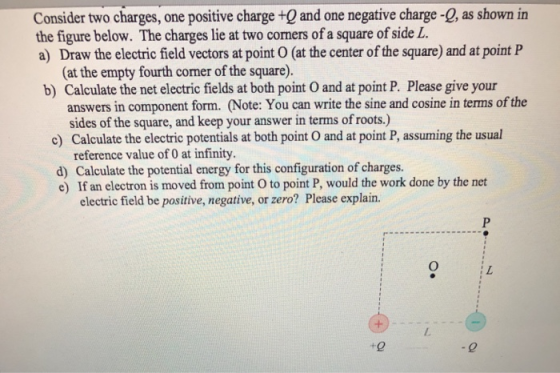

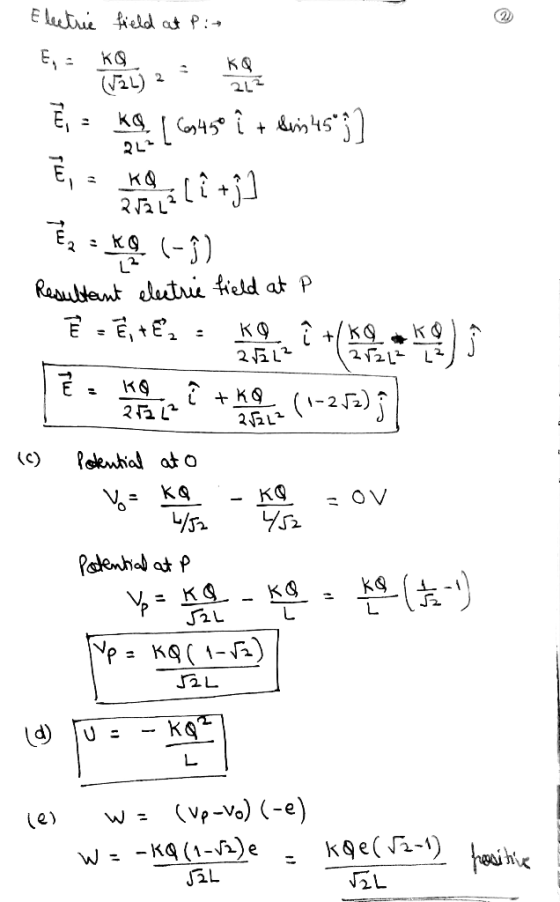

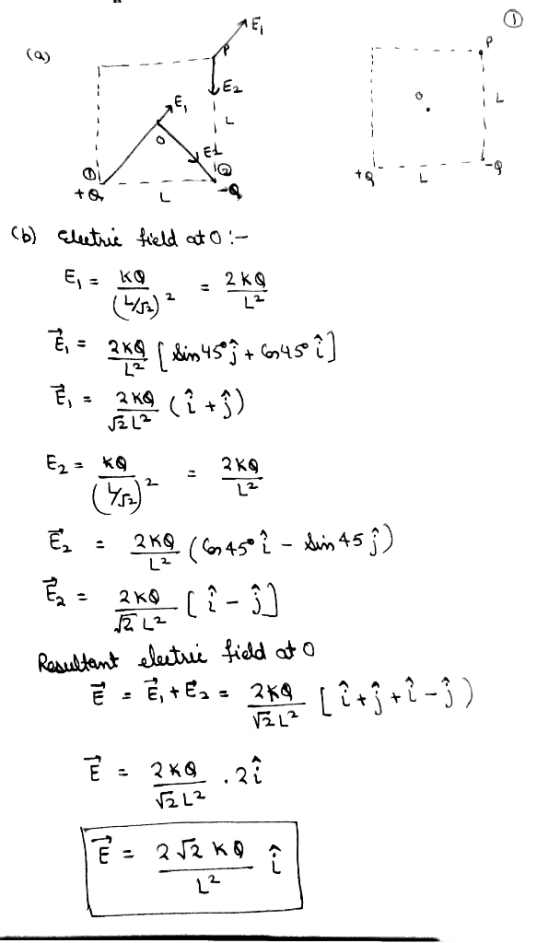

Consider two charges, one positive charge +0 and one negative charge -0, as shown in the...
Two positive point charges +q and two negative point charges-q are fixed at the corners of...
Two positive point charges +q and two negative point charges-q are fixed at the corners of a square of side a, as shown in the figure. The square is centered on the origin, and a positive test charge Q is placed at the origin. -q 1) Calculate the components E, and Ey of the electric field at the origin due to the 4 charges at the corners of the square. [8] AwA 2) Let F be the force experienced by...
Problem 3: Two positive point charges, each of charge Q > 0, are located at the...
Problem 3: Two positive point charges, each of charge Q > 0, are located at the two upper corners of a square; and two negative point charges, each of charge - Q<0, are located at the two lower corners of that square, in the x-y-plane, as shown in the figure below. The points R, S, T, and U are the mid-points of the edges and M is the center of the square. Two edges of the square are parellel to...
Two point charges have a charge of +1.7 microcoulumbs each. One of the charges is placed...
Two point charges have a charge of +1.7 microcoulumbs each. One of the charges is placed in the upper left corner of a square and the other is placed in the lower right corner of the square. A third charge is then fixed at the center of the square. The third charge causes the electric potentials at the empty corners of the square to change signs without changing magnitudes. a. Draw a diagram. b. Determine the electric potential at one...
Dynamics In the figure below, four point charges lie on the comers of a square, with a fifth point charge qn loc...
Dynamics
In the figure below, four point charges lie on the comers of a square, with a fifth point charge qn located at the center. The two left-most charges have the same negative charge qn while the two right-most charges have the same positive charge qp. Assume that the center charge q is negative. What is the direction of the total electric force on the charge q at the center of the square? Indicate the direction by dragging the appropriate...
In the figure below, four point charges lie on the corners of a square, with a fifth point charge q located at the cen...
In the figure below, four point charges lie on the corners of a square, with a fifth point charge q located at the center. The two left-most charges have the same negative charge q_n, while the two right-most charges have the same positive charge q^,. Assume that the center charge q is negative. What is the direction of the total electric force on the charge q at the center of the square? Indicate the direction by dragging the appropriate arrow...
A negative point-charge Q1 is 10cm direcly below a positive point-charge Q2 as shown in (Figure...
A negative point-charge Q1 is 10cm direcly below a positive point-charge Q2 as shown in (Figure 1). A. If Q1=−5.0 nC and Q2 = 1.0 nC , what is the magnitude of the net electric field created by the two charges at the point P? B. What is the direction of the net electric field at the point P?
In the figure, four point charges lie on the corners of a square, with a fifth...
In the figure, four point charges lie on the corners of a square, with a fifth point charge q located at the center. The two leftmost charges have the same negative charge qn, and the two rightmost charges have the same positive charge qp Assume that the center charge q is negative. What is the direction of the total electric force.... on the charge q at the center of the square? What is the direction of the electric field at...
In the figure, four point charges lie on the corners of a square, with a fifth...
In the figure, four point charges lie on the corners of a square, with a fifth point charge q located at the center. The two leftmost charges have the same negative charge qn , and the two rightmost charges have the same positive charge Assume that the center charge q is negative. What is the direction of the total electric force In on the charge q at the center of the square? What is the direction of the electric field...
Consider the charge distribution illustrated below with a positive charge q 1 and a negative charge...
Consider the charge distribution illustrated below with a
positive charge q 1 and a negative charge q 2 , both having the
same magnitude q. Which of the arrows below best describes the
direction of the electric field at the point marked
"X" in the figure below. Note that the two charges
and the point X together form an equilateral triangle.
Consider the charge distribution illustrated below with a positive charge qi and a negative charge q2, both having the...
3. Four point charges , two positive and two negative (each 2 JuC), are arranged at...
3. Four point charges , two positive and two negative (each 2 JuC), are arranged at the corners of a square with side length d-I m. Find the electric field E (magnitude and direction) and the electric potential at the center of the square. -G
Two positive point charges +q and two negative point charges-q are fixed at the corners of a square of side a, as shown in the figure. The square is centered on the origin, and a positive test charge Q is placed at the origin. -q 1) Calculate the components E, and Ey of the electric field at the origin due to the 4 charges at the corners of the square. [8] AwA 2) Let F be the force experienced by...
Problem 3: Two positive point charges, each of charge Q > 0, are located at the two upper corners of a square; and two negative point charges, each of charge - Q<0, are located at the two lower corners of that square, in the x-y-plane, as shown in the figure below. The points R, S, T, and U are the mid-points of the edges and M is the center of the square. Two edges of the square are parellel to...
Dynamics
In the figure below, four point charges lie on the comers of a square, with a fifth point charge qn located at the center. The two left-most charges have the same negative charge qn while the two right-most charges have the same positive charge qp. Assume that the center charge q is negative. What is the direction of the total electric force on the charge q at the center of the square? Indicate the direction by dragging the appropriate...
In the figure below, four point charges lie on the corners of a square, with a fifth point charge q located at the center. The two left-most charges have the same negative charge q_n, while the two right-most charges have the same positive charge q^,. Assume that the center charge q is negative. What is the direction of the total electric force on the charge q at the center of the square? Indicate the direction by dragging the appropriate arrow...
In the figure, four point charges lie on the corners of a square, with a fifth point charge q located at the center. The two leftmost charges have the same negative charge qn, and the two rightmost charges have the same positive charge qp Assume that the center charge q is negative. What is the direction of the total electric force.... on the charge q at the center of the square? What is the direction of the electric field at...
In the figure, four point charges lie on the corners of a square, with a fifth point charge q located at the center. The two leftmost charges have the same negative charge qn , and the two rightmost charges have the same positive charge Assume that the center charge q is negative. What is the direction of the total electric force In on the charge q at the center of the square? What is the direction of the electric field...
Consider the charge distribution illustrated below with a
positive charge q 1 and a negative charge q 2 , both having the
same magnitude q. Which of the arrows below best describes the
direction of the electric field at the point marked
"X" in the figure below. Note that the two charges
and the point X together form an equilateral triangle.
Consider the charge distribution illustrated below with a positive charge qi and a negative charge q2, both having the...
3. Four point charges , two positive and two negative (each 2 JuC), are arranged at the corners of a square with side length d-I m. Find the electric field E (magnitude and direction) and the electric potential at the center of the square. -G
