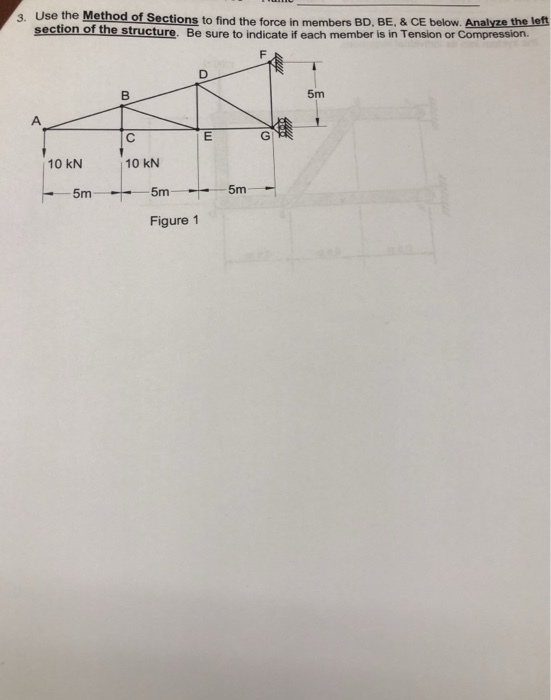

Use the Method of Sections to find the force in members BD, BE, & CE below....

Question

Question

engineering Mechanical-Engineering

Answer 1

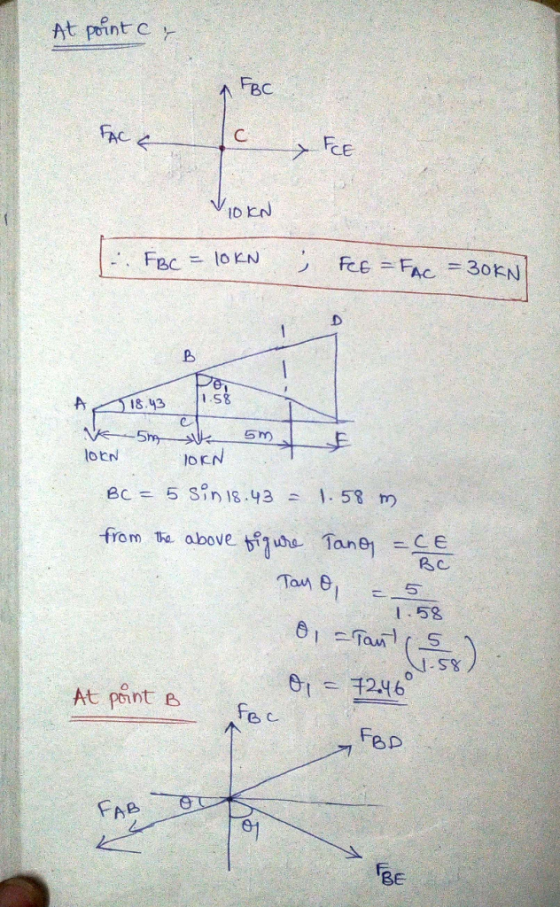

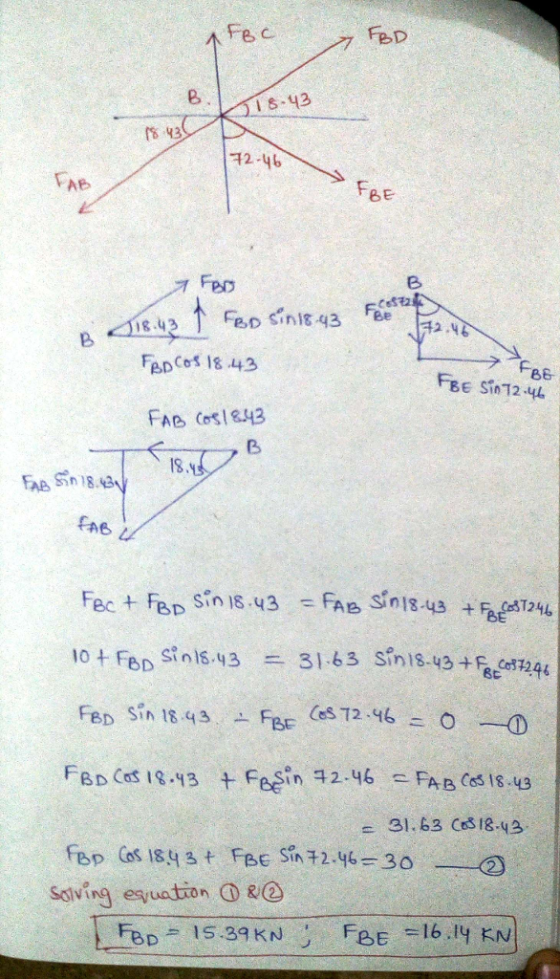

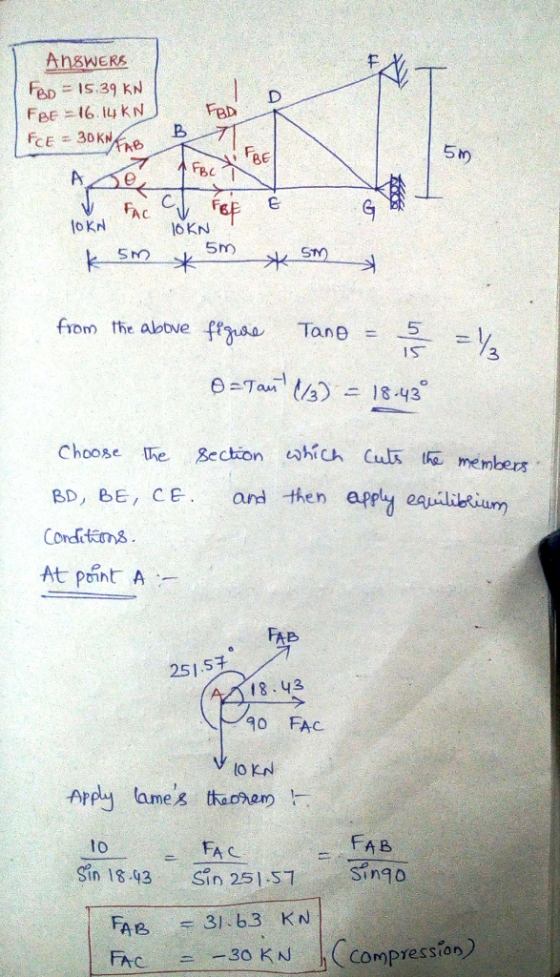

Answer #1

Answer 2

Similar Homework Help Questions

Use the method of joints to determine the forces in members (BC, BD, BE and CE)

F1 = 695 lb F2 = 271 lb L = 3 ft 1 h = 2.25 ft .1 Use the method of joints to determine the forces in members (BC, BD, BE and CE) and state if the members are in tension or in compression. 2. Use the method of sections to determine the forces in members (DF, EF and EG) and state if the members are in tension or in compression.
a) Identify all zero force members b) Use the METHOD OF SECTIONS to determine the member...

a) Identify all zero force members b) Use the METHOD OF SECTIONS to determine the member forces in menbers EF, GP, OP. Indicate if the members are in compression or in tension. 2. (a) Identify all zero force members. (5 pt.) (b) Use the method of sections to determine the member forces in members EF, (15 pt.) GP, and OP. Indicate if the members are in compression or in tension. F3 [kN] Fs [kN] = 144 [kW] Fu = 143...
Use the method of joints to determine the forces in members (BC, BD, BE and CE)

F1 = 775 lb F2 = 499 lb L = 4 ft h = 3 ft 1- Use the method of joints to determine the forces in members (BC, BD, BE and CE) and state if the members are in tension or in compression. 2- Use the method of sections to determine the forces in members (DF, EF and EG) and state if the members are in tension or in compression.

Method of Sections Reference the truss shown below. Solve for the forces in the specified members...

Method of Sections Reference the truss shown below. Solve for the forces in the specified members using the Method of Sections. Clearly indicate whether the members are in compression (C) or tension (T). P-10 kN, P, = 6 kN and P, -8 kN. Note: You will not get credit for your work if you do not use the Method of Sections. 3 m Question 21 (6 points) Solve for the reactions at the supports Indicate both the magnitude and direction...
Use method of sections to determine the internal force in members BC and GF. Indicate whether...

Use method of sections to determine the internal force in members BC and GF. Indicate whether these member forces are tension or compression. 4 m 4 m 8 m 4 m 6 m 10 kN
Problem 1 Determine the force in each member of the truss and state if the members...

Problem 1 Determine the force in each member of the truss and state if the members are in tension or compression. (Please use Method of Joint) Given: P, = 500 lb P, = 1500 lb a=10 ft b=10 ft Problem 2 Problem 3 Determine the force in members CD, CF, and GF of the truss. State if these members are in tension or compression. (Please use Method of Section) 5 kN 4 kN 4 kN 3 kN 2 kN (...

Use the method of joints to determine the forces in members BC BD

F1 = 871 lb F2 = 228 lb L=7ft h=5.25 ft 1 Use the method of joints to determine the forces in members BC BD. BE and CE) and state if the members are in tension or in compression 2 Use the method of sections to determine the forces in members (DF. EF and EG) and state if the members are in tension or in compression.
Problem 4 EM2 Find zero force members Determine the force in members KJ, CJ, and CD...

Problem 4 EM2 Find zero force members Determine the force in members KJ, CJ, and CD using method of sections and state if the members are in tension or compression. Then use the previous result to find the force in member JE using the method of joints. 30 kN 20 KN 15 kN 15 kN 10 kN 5 kN LKL HG B FI 3 @ 1 m - 3 m 6@ 3 m = 18 m Problem 4 EM2 Find...
CASIO 6. Find the force in members AB, BD, and CD. Be sure to indicate if...

CASIO 6. Find the force in members AB, BD, and CD. Be sure to indicate if the member is in tension or compression. (15 points) 300 lb 5 3 3 3 ft 4 1000 lb 4 n 3 ft

<Assignment-14 (Zero Force Members and Method of Sections) Problem 6.38 Consider the truss shown in (Figure...

<Assignment-14 (Zero Force Members and Method of Sections) Problem 6.38 Consider the truss shown in (Figure 1). Set R = 5 kN. B = 9 kN. P3 = 12 kN. Part A Determine the fo Express your ar value in the cas FBc = Va Submit RE Figure 1 of 1 Part B Determine the forc Express your ans value in the case 3 m B Valt 3 m 3 m 3 m P Submit Reqy Members and Method of...
