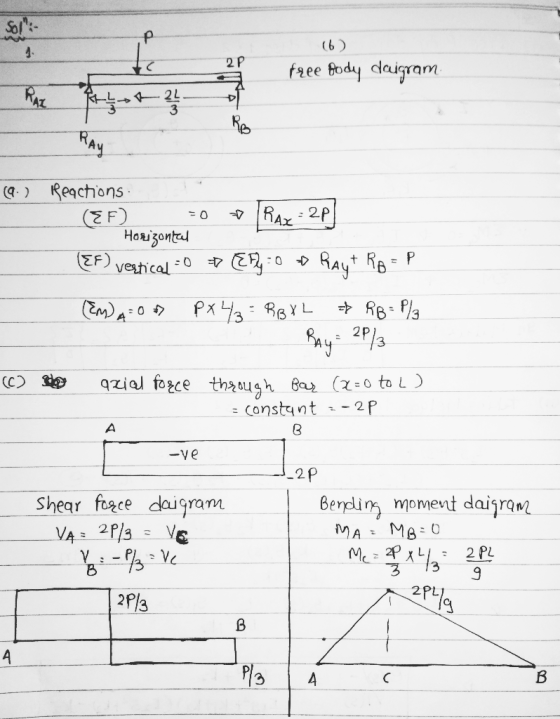

![OP (6) free fody daigram ALT 9. Peactions (EF) =0 RAx=2P] Horizontal (EF) vertical : * {=0 * Rayt Ro P (EM) A = 0 7 PX4 RB XL](http://img.homeworklib.com/questions/10b282d0-2226-11ec-95a3-4f5f05feb723.png?x-oss-process=image/resize,w_560)
please ask if any doubt
Please rate by thums up
Add Answer to:

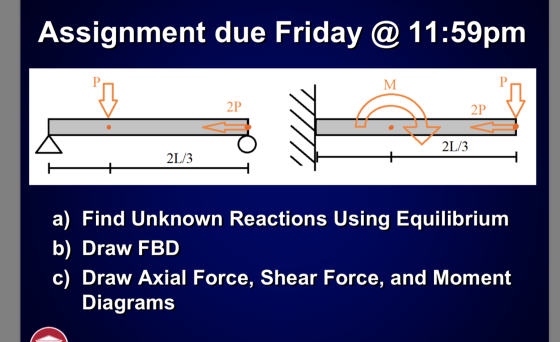

Assignment due Friday @ 11:59pm 2L/3 2L/3 a) Find Unknown Reactions Using Equilibrium b) Draw FBD...
A. FBD ¢ Reactions. b. Shear Moment diagrams C. Conrert to Steel d. Find Normal stress e Find she...
a. FBD ¢ Reactions. b. Shear Moment diagrams C. Conrert to Steel d. Find Normal stress e Find shear stress SKIst 8K 3 k sk 3 12 6 Steel Es 30 Por 2 wood tu
a. FBD ¢ Reactions. b. Shear Moment diagrams C. Conrert to Steel d. Find Normal stress e Find shear stress SKIst 8K 3 k sk 3 12 6 Steel Es 30 Por 2 wood tu
Please answe the question below by folowing the steps given CIVE 3200: Quiz 1 Due: Friday,...
Please answe the question below by folowing the steps
given
CIVE 3200: Quiz 1 Due: Friday, June 7th for up to full credit or Monday, June 10th for up to half credit Name: an erhe 1. For the given beam: a. Find all reactions. b. Write equation(s) describing the shear, moment, and axial force for all points on the beam. Draw the shear and moment diagram for the beam. Shear and moment diagrams shall show all magnitudes at all lettered...
make sure not to copy previous work For the frame shown below: 1- Calculate the reactions at the supports 2- Show the equilibrium at nodes B and C 3- Draw the normal force, the shear force and the...
make sure not to copy previous work
For the frame shown below: 1- Calculate the reactions at the supports 2- Show the equilibrium at nodes B and C 3- Draw the normal force, the shear force and the bending moment diagrams 2 KN 3 KN 2 m 2 m 3 m 4 m
For the frame shown below: 1- Calculate the reactions at the supports 2- Show the equilibrium at nodes B and C 3- Draw the normal force, the...
For the two frames given below Compute the Support Reactions Draw the Free Body Diagrams for...
For the two frames given below Compute the Support Reactions Draw the Free Body Diagrams for all members, and joints with concentrated load or moment Draw the Bending Moment Diagram, Shear Force Diagram, and Axial Force Diagram using the sign conventions and labeling scheme taught in the class Draw the Qualitative Deflected Shape, clearly showing the Inflection Points, if any. 1. (50 points) 45 k Need FBD 3 k/ft 15 ft 2. (50 points) 15 kN/m F G 65 kN...
04 m 8 KN 2. A simply supported beam is shown below. a. b. c. Draw...
04 m 8 KN 2. A simply supported beam is shown below. a. b. c. Draw a proper FBD of the beam showing all the known and unknown forces acting on it. Determine the support reactions at A and B. Draw the shear (V) and bending moment (M) diagrams for the beam. 2500 lb 500 Ib/it 3 ft -3 ft 3 ft 3. Draw a proper FBD of member ABC showing all the known and unknown forces acting Determine the...
CEE 381 Structural Analysis, Spring 2020 Homework 3 Due: February 27th, in class Determine support reactions...
CEE 381 Structural Analysis, Spring 2020 Homework 3 Due: February 27th, in class Determine support reactions and draw axial force, shear force, and bending moment diagrams. 1. (50 points) 48kips 240kips.ft 4kips/ft 4ft 24kips
For the beam shown in Fig.3, q1= 10kN/m, Mo=15kN.m. a) Find all support reactions. b) Find the expressions for the shear force V and bending moment M. c) Draw the shear-force and bending-moment diagra...
For the beam shown in Fig.3, q1= 10kN/m, Mo=15kN.m. a) Find all
support reactions. b) Find the expressions for the shear force V
and bending moment M. c) Draw the shear-force and bending-moment
diagrams. Note that Mo acts at C, and dV/dx = -q, dM/dx = V
Calculate (a) the maximum shear stress in each segment; (b) the angles of twist (in d at the mid-span of the larger segment. Given: r-Trllp Ti 91 T: Fig. 2 Fig. 3 q,-10...
For the beam shown in Fig.3, q1= 10kN/m, Mo=15kN.m. a) Find all support reactions. b) Find the expressions for the shear force V and bending moment M. c) Draw the shear-force and bending-moment diagra...
For the beam shown in Fig.3, q1= 10kN/m, Mo=15kN.m. a) Find all
support reactions. b) Find the expressions for the shear force V
and bending moment M. c) Draw the shear-force and bending-moment
diagrams. Note that Mo acts at C, and dV/dx = -q, dM/dx = V
Calculate (a) the maximum shear stress in each segment; (b) the angles of twist (in d at the mid-span of the larger segment. Given: r-Trllp Ti 91 T: Fig. 2 Fig. 3 q,-10...
Find the reactions of two statically indeterminate beams shown below using the force method. draw the...
Find the reactions of two statically indeterminate beams shown
below using the force method. draw the shear and moment diagrams.
Also draw the deflected shape and indicate points of inflection and
regions of positive and negative curves.
2 KNİm 挤C 5 m bm そ
For the frame shown below: 1- Calculate the reactions at the supports. 2- Draw the Normal force, the Shear force and the Bending moment diagrams. Indicate all critical values 3- Show the equilibrium a...
For the frame shown below:1- Calculate the reactions at the supports.2- Draw the Normal force, the Shear force and the Bending moment
diagrams. Indicate all critical values3- Show the equilibrium at node B.4- Develop the analytical expression for the normal force, the
shear force and the bending moment diagram for memberBC.The 4 Kips/ft load is applied perpendicular to member
AB.
a. FBD ¢ Reactions. b. Shear Moment diagrams C. Conrert to Steel d. Find Normal stress e Find shear stress SKIst 8K 3 k sk 3 12 6 Steel Es 30 Por 2 wood tu
a. FBD ¢ Reactions. b. Shear Moment diagrams C. Conrert to Steel d. Find Normal stress e Find shear stress SKIst 8K 3 k sk 3 12 6 Steel Es 30 Por 2 wood tu
Please answe the question below by folowing the steps
given
CIVE 3200: Quiz 1 Due: Friday, June 7th for up to full credit or Monday, June 10th for up to half credit Name: an erhe 1. For the given beam: a. Find all reactions. b. Write equation(s) describing the shear, moment, and axial force for all points on the beam. Draw the shear and moment diagram for the beam. Shear and moment diagrams shall show all magnitudes at all lettered...
make sure not to copy previous work
For the frame shown below: 1- Calculate the reactions at the supports 2- Show the equilibrium at nodes B and C 3- Draw the normal force, the shear force and the bending moment diagrams 2 KN 3 KN 2 m 2 m 3 m 4 m
For the frame shown below: 1- Calculate the reactions at the supports 2- Show the equilibrium at nodes B and C 3- Draw the normal force, the...
For the two frames given below Compute the Support Reactions Draw the Free Body Diagrams for all members, and joints with concentrated load or moment Draw the Bending Moment Diagram, Shear Force Diagram, and Axial Force Diagram using the sign conventions and labeling scheme taught in the class Draw the Qualitative Deflected Shape, clearly showing the Inflection Points, if any. 1. (50 points) 45 k Need FBD 3 k/ft 15 ft 2. (50 points) 15 kN/m F G 65 kN...
04 m 8 KN 2. A simply supported beam is shown below. a. b. c. Draw a proper FBD of the beam showing all the known and unknown forces acting on it. Determine the support reactions at A and B. Draw the shear (V) and bending moment (M) diagrams for the beam. 2500 lb 500 Ib/it 3 ft -3 ft 3 ft 3. Draw a proper FBD of member ABC showing all the known and unknown forces acting Determine the...
CEE 381 Structural Analysis, Spring 2020 Homework 3 Due: February 27th, in class Determine support reactions and draw axial force, shear force, and bending moment diagrams. 1. (50 points) 48kips 240kips.ft 4kips/ft 4ft 24kips
For the beam shown in Fig.3, q1= 10kN/m, Mo=15kN.m. a) Find all
support reactions. b) Find the expressions for the shear force V
and bending moment M. c) Draw the shear-force and bending-moment
diagrams. Note that Mo acts at C, and dV/dx = -q, dM/dx = V
Calculate (a) the maximum shear stress in each segment; (b) the angles of twist (in d at the mid-span of the larger segment. Given: r-Trllp Ti 91 T: Fig. 2 Fig. 3 q,-10...
For the beam shown in Fig.3, q1= 10kN/m, Mo=15kN.m. a) Find all
support reactions. b) Find the expressions for the shear force V
and bending moment M. c) Draw the shear-force and bending-moment
diagrams. Note that Mo acts at C, and dV/dx = -q, dM/dx = V
Calculate (a) the maximum shear stress in each segment; (b) the angles of twist (in d at the mid-span of the larger segment. Given: r-Trllp Ti 91 T: Fig. 2 Fig. 3 q,-10...
Find the reactions of two statically indeterminate beams shown
below using the force method. draw the shear and moment diagrams.
Also draw the deflected shape and indicate points of inflection and
regions of positive and negative curves.
2 KNİm 挤C 5 m bm そ
For the frame shown below:1- Calculate the reactions at the supports.2- Draw the Normal force, the Shear force and the Bending moment
diagrams. Indicate all critical values3- Show the equilibrium at node B.4- Develop the analytical expression for the normal force, the
shear force and the bending moment diagram for memberBC.The 4 Kips/ft load is applied perpendicular to member
AB.
