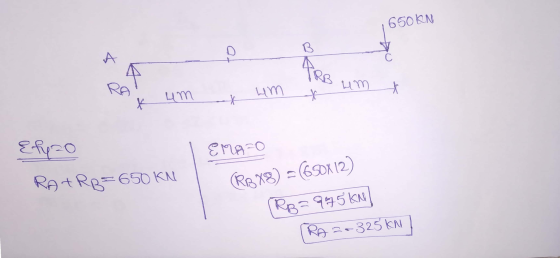

![,650 KN * um um um x Emp=0 {fyzo RA TRB=650 KN (RBX8) - (650x12) (RB = 995 kN] RA2325 KM](http://img.homeworklib.com/questions/73c82800-22d2-11ec-9fa9-eb7deaaec24f.png?x-oss-process=image/resize,w_560)

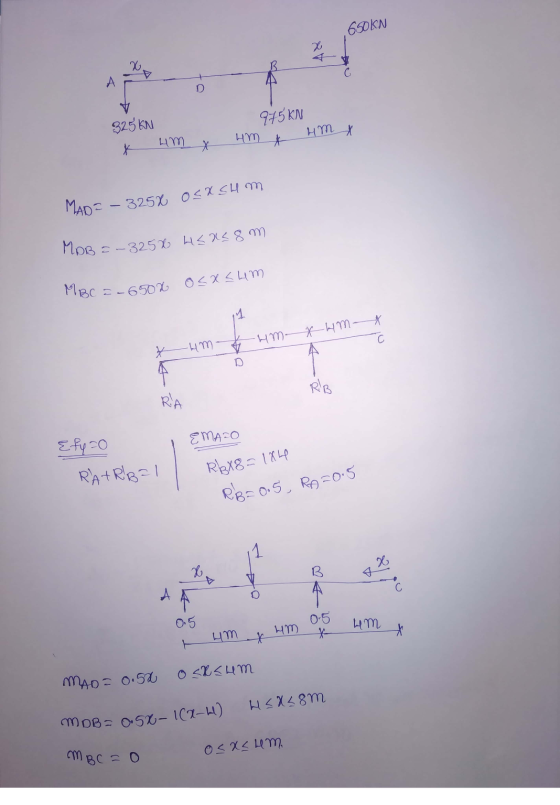

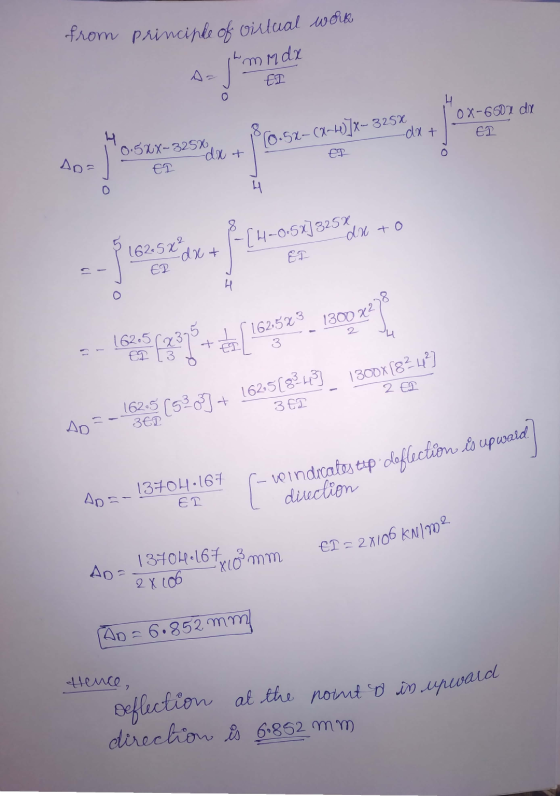

![from principle of virtual work hmmdx A-J EI ox-650x de dat 1 EL . Pro.sx-(8-4) ]X - 325x 10.5xx~3250 10.52-(X-4) ]X~ 3252 dx](http://img.homeworklib.com/questions/7525d390-22d2-11ec-ac5e-41a4ea16900f.png?x-oss-process=image/resize,w_560)
Add Answer to:

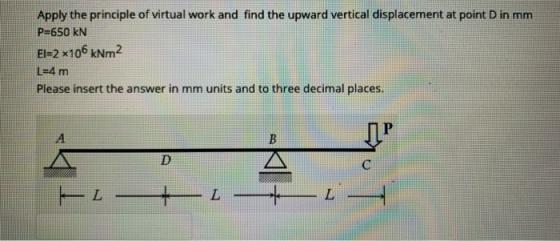

Apply the principle of virtual work and find the upward vertical displacement at point D in...
Determine the displacement at point D. Use the principle of virtual work. El is constant. 60...
Determine the displacement at point D. Use the principle of virtual work. El is constant. 60 kN/m А B 3 m 5m Sm
Determine the displacement at point D. Use the principle of virtual work. EI is constant. 16...
Determine the displacement at point D. Use the principle of
virtual work. EI is constant.
16 kN/m 4 m Im
QUESTION 6 what is the vertical downward displacement at mid-span of beam BC if the support...
QUESTION 6 what is the vertical downward displacement at mid-span of beam BC if the support settlement at A is δ=3 mm? H=6 m L:1 m El- 3,100 kNm2 w 95 kN/m 2A AyY....
Determine the vertical displacement of point C. El is constant. Use the method of virtual work....
Determine the vertical displacement of point C. El is constant. Use the method of virtual work. Prob. 8-55 80 KN.m 20 KN B -3 m 4 m
Determine the vertical displacement of point D under flexure using virtual-work equations. Flexural Rigidity (EI) of...
Determine the vertical displacement of point D under flexure using virtual-work equations. Flexural Rigidity (EI) of the beam is constant. S=3 and your distributed load is w=S+1=4 kN/m) Results table Ad,vertical w=(S+1) kN/m Α. B D 6 m 3 m 3 m K * Figure 4.
Please help 8 N 7 virtual work truss and frame thod of Virtual Work: Trusses 1...
Please help
8 N 7 virtual work truss and frame thod of Virtual Work: Trusses 1 of 6 Part B-Vertical dsplacement sing the method of virtual work. Use the method of virtual work to determine the vertical displacement of joint E due to the applied loads. Let a positive answer represent an upward displacement and a negative answer regresent a downward displacement The principle of virtual work, also referred to as the unit- load method, provides a method for determining...
8-55 : Determine the vertical displacement of point C. EI is constant. Use the method of...
8-55 : Determine the vertical displacement of point C. EI is
constant. Use the method of virtual work.
-55. Determine the vertical displacement of point C. El is constant. Use the method of virtual work. $-56. Solve Prob. 8-55 using Castigliano's theorem. 80 kN m 20 kN B 4 m Probs. 8-55/56
2. Determine the vertical displacement of joint D. Use the method of virtual work. AE is...
2. Determine the vertical displacement of joint D. Use the method of virtual work. AE is constant. Assume the members are pin connected at their ends. 0 0 ooo 0 0 Oo 3 m ВГ –4 m t 15 KN 20 KN
2. Determine the vertical deflection at point C of the beam shown in Figure 2 with the virtual work method. PE 10 kN 2 kN/m El constant E= 2x 105 MPa 1-1x10 mm Figure 2 2. Determine the vertical...
2. Determine the vertical deflection at point C of the beam shown in Figure 2 with the virtual work method. PE 10 kN 2 kN/m El constant E= 2x 105 MPa 1-1x10 mm Figure 2
2. Determine the vertical deflection at point C of the beam shown in Figure 2 with the virtual work method. PE 10 kN 2 kN/m El constant E= 2x 105 MPa 1-1x10 mm Figure 2
2) using the virtual work theorem, the displacement of the D point in the horizontal direction...
2) using the virtual work theorem, the displacement of
the D point in the horizontal direction in the system given below,
calculate taking into account only the bending effect. (obtain the
functions that indicates the change of moments about z axes.
you can use various softwares to calculate integrals.you don't need
to draw moment diagrams.
1) using the virtual work theorem, calculate the
deflection (in the direction of down) at point C in this
truss
E= Young's modulus
F =...
Determine the displacement at point D. Use the principle of virtual work. El is constant. 60 kN/m А B 3 m 5m Sm
Determine the displacement at point D. Use the principle of
virtual work. EI is constant.
16 kN/m 4 m Im
QUESTION 6 what is the vertical downward displacement at mid-span of beam BC if the support settlement at A is δ=3 mm? H=6 m L:1 m El- 3,100 kNm2 w 95 kN/m 2A AyY....
Determine the vertical displacement of point C. El is constant. Use the method of virtual work. Prob. 8-55 80 KN.m 20 KN B -3 m 4 m
Determine the vertical displacement of point D under flexure using virtual-work equations. Flexural Rigidity (EI) of the beam is constant. S=3 and your distributed load is w=S+1=4 kN/m) Results table Ad,vertical w=(S+1) kN/m Α. B D 6 m 3 m 3 m K * Figure 4.
Please help
8 N 7 virtual work truss and frame thod of Virtual Work: Trusses 1 of 6 Part B-Vertical dsplacement sing the method of virtual work. Use the method of virtual work to determine the vertical displacement of joint E due to the applied loads. Let a positive answer represent an upward displacement and a negative answer regresent a downward displacement The principle of virtual work, also referred to as the unit- load method, provides a method for determining...
8-55 : Determine the vertical displacement of point C. EI is
constant. Use the method of virtual work.
-55. Determine the vertical displacement of point C. El is constant. Use the method of virtual work. $-56. Solve Prob. 8-55 using Castigliano's theorem. 80 kN m 20 kN B 4 m Probs. 8-55/56
2. Determine the vertical displacement of joint D. Use the method of virtual work. AE is constant. Assume the members are pin connected at their ends. 0 0 ooo 0 0 Oo 3 m ВГ –4 m t 15 KN 20 KN
2. Determine the vertical deflection at point C of the beam shown in Figure 2 with the virtual work method. PE 10 kN 2 kN/m El constant E= 2x 105 MPa 1-1x10 mm Figure 2
2. Determine the vertical deflection at point C of the beam shown in Figure 2 with the virtual work method. PE 10 kN 2 kN/m El constant E= 2x 105 MPa 1-1x10 mm Figure 2
2) using the virtual work theorem, the displacement of
the D point in the horizontal direction in the system given below,
calculate taking into account only the bending effect. (obtain the
functions that indicates the change of moments about z axes.
you can use various softwares to calculate integrals.you don't need
to draw moment diagrams.
1) using the virtual work theorem, calculate the
deflection (in the direction of down) at point C in this
truss
E= Young's modulus
F =...
