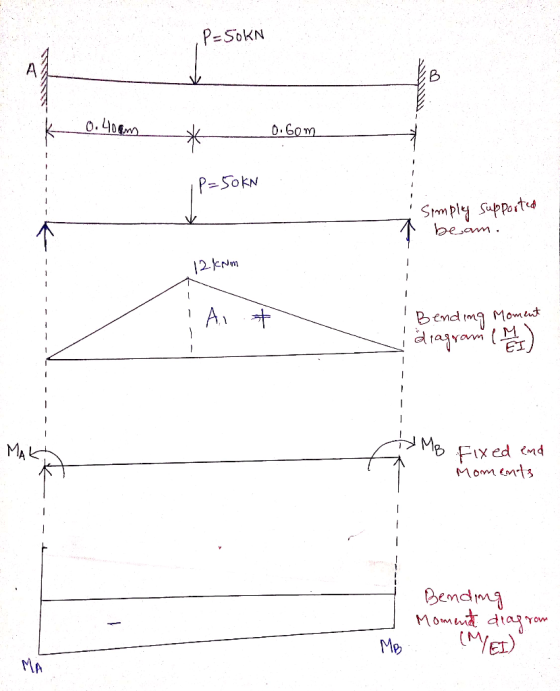

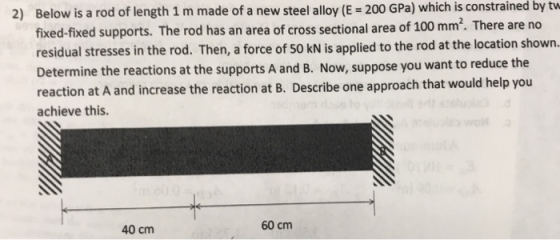

Homework Answers
15 m B- Question 3: Each member of the truss shown is made of steel (E- 2 1 0 GPa ) and has a cro...
15 m B- Question 3: Each member of the truss shown is made of steel (E- 2 1 0 GPa ) and has a cross-sectional area of A If you know that the joint E subjected to horizontal load 16-kN Determine: .The horizontal displacement of point E . The vertical displacement of point C. 400 mm2 0.8m 16 KN
15 m B- Question 3: Each member of the truss shown is made of steel (E- 2 1 0 GPa )...
The pin-connected structure shown in Fig. 5 consists of a rigid bar ABCD and two 1,500-mm-long...
The pin-connected structure shown in Fig. 5 consists of a rigid bar ABCD and two 1,500-mm-long bars. Bar (1) is steel [E=200 GPa] with a cross-sectional area of A1 = 510 mm2. Bar (2) is an aluminium alloy [E-70 GPa] with a cross-sectional area of A2 1,300 mm2. All bars are unstressed before the load P is applied. If a concentrated load of P 200 kN acts on the structure at D determine: (a) the normal stresses in both bars...
The A992 steel rod is subjected to the loading shown. If the cross-sectional area of the...
The A992 steel rod is
subjected to the loading shown. If the cross-sectional area of the
rod is 100 mm2. Neglect the size of the couplings at B and C. The
elastic modulus and yield stress of A992 steel is 200 GPa and 345
MPa respectively. Determine the displacement of B and A with
respect to point D. (Preserve 2 significant digits after the
decimal point.)
QUESTION 1 The 1992 steel rod is subjected to the loading shown. If the...
Q.1. Rod AB consists of two cylindrical portions AC and BC with the same cross-sectional area...
Q.1. Rod AB consists of two cylindrical portions AC and BC with the same cross-sectional area of 1,800 mm2. Portion AC is made of a mild steel with E 70 GPa and portion CB is made of a steel with E 140 GPa. A load P-1,000 kN is applied at C as shown. (a) Determine reaction forces at A and B; (b) Determine the displacement at C 190 mm 190 mm
A tie rod (1) and a pipe strut (2) are used to support a 50-kN load,...
A tie rod (1) and a pipe strut (2) are used to support a 50-kN
load, as shown. The cross-sectional areas are A1 =650 mm2 for tie
rod (1) and A2 = 925 mm2 for pipe strut (2). Both members are made
of structural steel that has an elastic modulus of E=200 GPa.
a) Determine the axial normal stresses in tie rod (1) and pipe
strut (2).
b) Determine the elongation or contraction of each member.
c) Sketch a deformation...
The multi-material rod below has force P=3 kN applied to it
The multi-material rod below has force P=3 kN applied to it. The center portion is steel, with E=207 GPa and yield strength Sy=250 MPa. The outer shell is aluminum with E=69 GPa and yield strength Sy=276 MPa. The center portion has cross-sectional area of 7.07 mm2 while the outer shell has cross-sectional area of 5.50 mm2 . The load P is applied through rigid plates (not pictured) so that the force is shared between the two materials. Note: This scenario is used...
9) The aluminum rod AB and bronze rod BC are joined at the collar B and...
9) The aluminum rod AB and bronze rod BC are joined at the collar B and fixed connected at their ends. An axial load, P, is applied at point B. Neglect any effects of the collar at B itself. The cross-sectional area of cach rod is A. Determine the reactions (with respect to the reaction vectors shown). Given: Pg = 20 N (applied at point B) EAB-73 GPa (aluminum); EBc 103 GPa (bronze) Cross-sectional areas: AAB = 250 mm: ABC-100...
9) The aluminum rod AB and bronze rod BC are joined at the collar B and...
9) The aluminum rod AB and bronze rod BC are joined at the collar B and fixed connected at their ends. An axial load, P, is applied at point B. Neglect any effects of the collar at B itself. The cross-sectional area of each rod is A. Determine the reactions (with respect to the reaction vectors shown Given: PB-20 N (applied at point B) EAB 73 GPa (aluminum); EBc 103 GPa (bronze) AAB-250 mm2 . ABC-100 mm2 10m 2m Determine...
Required information Problem 02.040 - Deformation of links in a simple frame Three steel rods (E...
Required information Problem 02.040 - Deformation of links in a simple frame Three steel rods (E = 200 GPa) support a 52-kN load P. Each of the rods AB and CD has a 200-mm2 cross-sectional area, and rod EF has a 625-mm2 cross-sectional area. Neglect the deformation of bar BED. с P 500 mm B D O O E 400 mm F Problem 02.040.a - Deformation of links in a simple frame Determine the change in length of rod EF....
Problem 3 Three steel rods (with E-200 GPa, Cla = 1 1.7x10-6/oC) support a 45 kN...
Problem 3 Three steel rods (with E-200 GPa, Cla = 1 1.7x10-6/oC) support a 45 kN load P. Each of the rods AB and CD has a 200 mm cross-sectional area, and rod EF has a 575 mm2 cross sectional area. The horizontal bar BED may be treated as rigid. The distance BE along the horizontal bar from pin B to pin E is 450 mm, and the distance ED along the horizontal bar from pin E to pin D...
15 m B- Question 3: Each member of the truss shown is made of steel (E- 2 1 0 GPa ) and has a cross-sectional area of A If you know that the joint E subjected to horizontal load 16-kN Determine: .The horizontal displacement of point E . The vertical displacement of point C. 400 mm2 0.8m 16 KN
15 m B- Question 3: Each member of the truss shown is made of steel (E- 2 1 0 GPa )...
The pin-connected structure shown in Fig. 5 consists of a rigid bar ABCD and two 1,500-mm-long bars. Bar (1) is steel [E=200 GPa] with a cross-sectional area of A1 = 510 mm2. Bar (2) is an aluminium alloy [E-70 GPa] with a cross-sectional area of A2 1,300 mm2. All bars are unstressed before the load P is applied. If a concentrated load of P 200 kN acts on the structure at D determine: (a) the normal stresses in both bars...
The A992 steel rod is
subjected to the loading shown. If the cross-sectional area of the
rod is 100 mm2. Neglect the size of the couplings at B and C. The
elastic modulus and yield stress of A992 steel is 200 GPa and 345
MPa respectively. Determine the displacement of B and A with
respect to point D. (Preserve 2 significant digits after the
decimal point.)
QUESTION 1 The 1992 steel rod is subjected to the loading shown. If the...
Q.1. Rod AB consists of two cylindrical portions AC and BC with the same cross-sectional area of 1,800 mm2. Portion AC is made of a mild steel with E 70 GPa and portion CB is made of a steel with E 140 GPa. A load P-1,000 kN is applied at C as shown. (a) Determine reaction forces at A and B; (b) Determine the displacement at C 190 mm 190 mm
A tie rod (1) and a pipe strut (2) are used to support a 50-kN
load, as shown. The cross-sectional areas are A1 =650 mm2 for tie
rod (1) and A2 = 925 mm2 for pipe strut (2). Both members are made
of structural steel that has an elastic modulus of E=200 GPa.
a) Determine the axial normal stresses in tie rod (1) and pipe
strut (2).
b) Determine the elongation or contraction of each member.
c) Sketch a deformation...
9) The aluminum rod AB and bronze rod BC are joined at the collar B and fixed connected at their ends. An axial load, P, is applied at point B. Neglect any effects of the collar at B itself. The cross-sectional area of cach rod is A. Determine the reactions (with respect to the reaction vectors shown). Given: Pg = 20 N (applied at point B) EAB-73 GPa (aluminum); EBc 103 GPa (bronze) Cross-sectional areas: AAB = 250 mm: ABC-100...
9) The aluminum rod AB and bronze rod BC are joined at the collar B and fixed connected at their ends. An axial load, P, is applied at point B. Neglect any effects of the collar at B itself. The cross-sectional area of each rod is A. Determine the reactions (with respect to the reaction vectors shown Given: PB-20 N (applied at point B) EAB 73 GPa (aluminum); EBc 103 GPa (bronze) AAB-250 mm2 . ABC-100 mm2 10m 2m Determine...
Required information Problem 02.040 - Deformation of links in a simple frame Three steel rods (E = 200 GPa) support a 52-kN load P. Each of the rods AB and CD has a 200-mm2 cross-sectional area, and rod EF has a 625-mm2 cross-sectional area. Neglect the deformation of bar BED. с P 500 mm B D O O E 400 mm F Problem 02.040.a - Deformation of links in a simple frame Determine the change in length of rod EF....
Problem 3 Three steel rods (with E-200 GPa, Cla = 1 1.7x10-6/oC) support a 45 kN load P. Each of the rods AB and CD has a 200 mm cross-sectional area, and rod EF has a 575 mm2 cross sectional area. The horizontal bar BED may be treated as rigid. The distance BE along the horizontal bar from pin B to pin E is 450 mm, and the distance ED along the horizontal bar from pin E to pin D...
