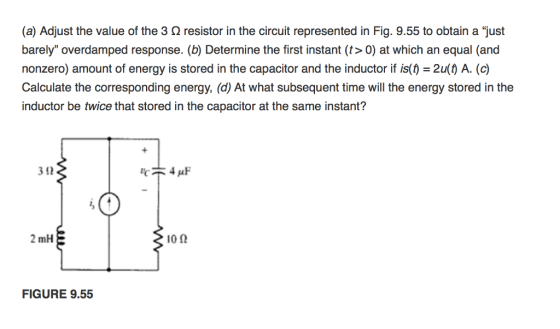

(a) Adjust the value of the 3 ? resistor in the circuit represented in Fig. 9.55...
Fig.1 9. A series RCL circuit contains a 148- 2 resistor, a 1.50-uF capacitor, and a 35.7-mH inductor. The generator has a frequency of 512 Hz and an ms voltage of 25.0 V. Determine resonance frequency in the circuit. (a) 512 Hz (5) 688 H2 (c) 800Hz (d) 1024 Hz (d) None 10. Find the inductance in a coil if the magnitude of the average induced emf is 19.5 mV and the current in changes from 0.20 A to 1.5...
just do question 26 and 30 and show all your work
(a) Select R so that 26. For the cincuit of Fig. 943,.40 30u-) m v(0+) 6 V. (b) Compute (2 ms). (c) Determine the settling time of the capacitor voltage. (d) Is the inductor current settling time the same as your answer to part (c)? 27. The current source in Fig. 9.43 is id) = 101(1-1) μ A. (a) Select Ri such that iLO")-2 μΑ. Compute L at t-500...
A circuit is constructed with a resistor, two inductors, one capacitor, one battery and a switch as shown. The value of the resistance is R1 4252. The values for the inductances are: L 1 398 mH and L2-108 mH . The capactance C-186 μF and the battery voltage is V-12V. The positive terminal of the battery is indicated with a sign 1) The switch has been closed for a long time when at time 0, the switch is opened. What...
Function Generatr Inductor Model Ra R, Figure 1 Series RLC Circuit Preliminary This laboratory will demonstrate how varying resistance changes the natural response of a series RLC circuit (Fig. 1). The function generator is modeled as an ideal voltage source v(t) 5 u() V in series with source resistance Rs-50Q. After measurements using an LCR meter, the inductor is modeled as an ideal L 90 mH inductor in series with resistance RL-20Q. The capacitance is C-0.22 μF. 1) Calculate the...
A circuit is constructed with a resistor, two inductors, one capacitor, one battery and a switch as shown. The value of the resistance is R1 = 425 Ω. The values for the inductances are: L1-398 mH and L2-108 mH. The capacitance is C-186 μF and the battery voltage is V- 12V. The positive terminal of the battery is indicated with a +sign nes ir a 000 レ L2 ) The switch has been closed for a long time when at...
A circuit is constructed with a resistor, two inductors, one capacitor, one battery and a switch as shown. The value of the resistance is R1 = 290 ?. The values for the inductances are: L1 = 395 mH and L2 = 172 mH. The capacitance is C = 91 ?F and the battery voltage is V = 12 V. The positive terminal of the battery is indicated with a + sign.1)The switch has been closed for a long time when...
Consider the circuit shown in Fig. 1 with Vs=10V. Assume there is no initial energy stored in the circuit, and the switch S was opens for a long time and it closes at time t-0 second. 1. For each of the following cases, find the expression of the voltage across the capacitor, Vt) for t 0: (a) R-5 k2, L-22 mH, and C 22 nF (b) R-0.5 kQ, L=22 mH, and C-22 nF IfL and C are the same as...
A circuit diagram of the automobile ignition circuit is shown in
the figure. Consider the circuit characteristics that provide the
energy to ignite the fuel-air mixture in the cylinder. First, the
maximum voltage available at the spark plug,
vsp, must be high enough to ignite the
fuel. Second, the voltage across the capacitor must be limited to
prevent arcing across the switch or distributor points. Third, the
current in the primary winding of the autotransformer must cause
sufficient energy to...

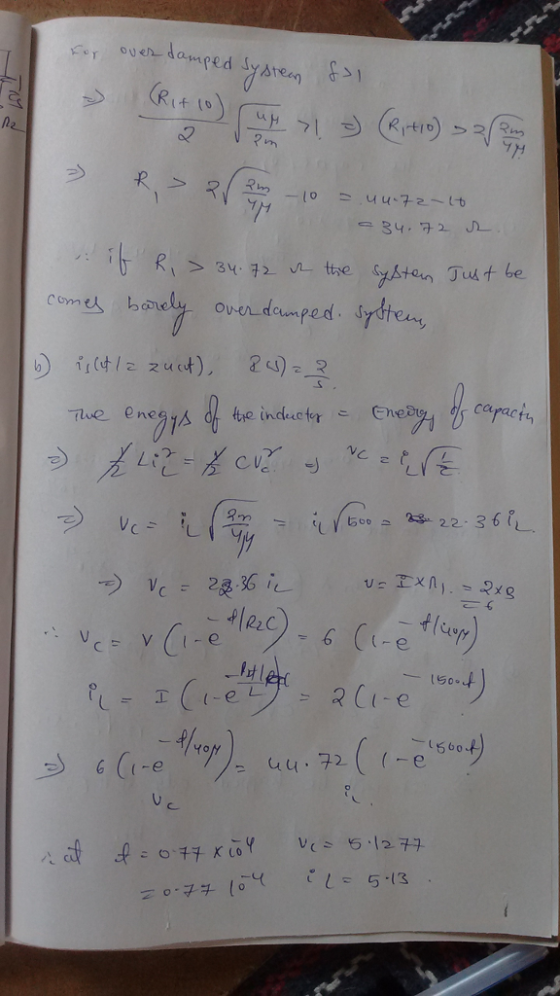

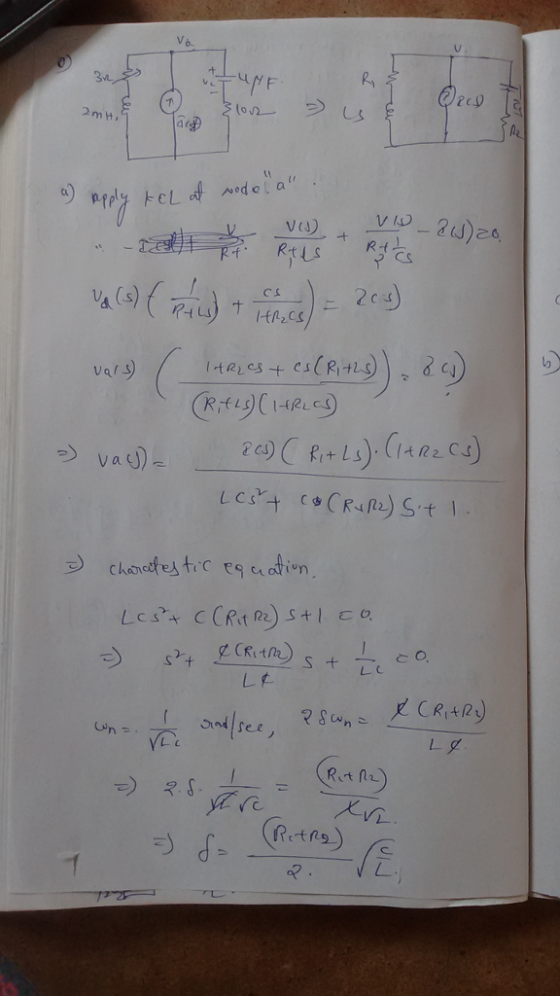

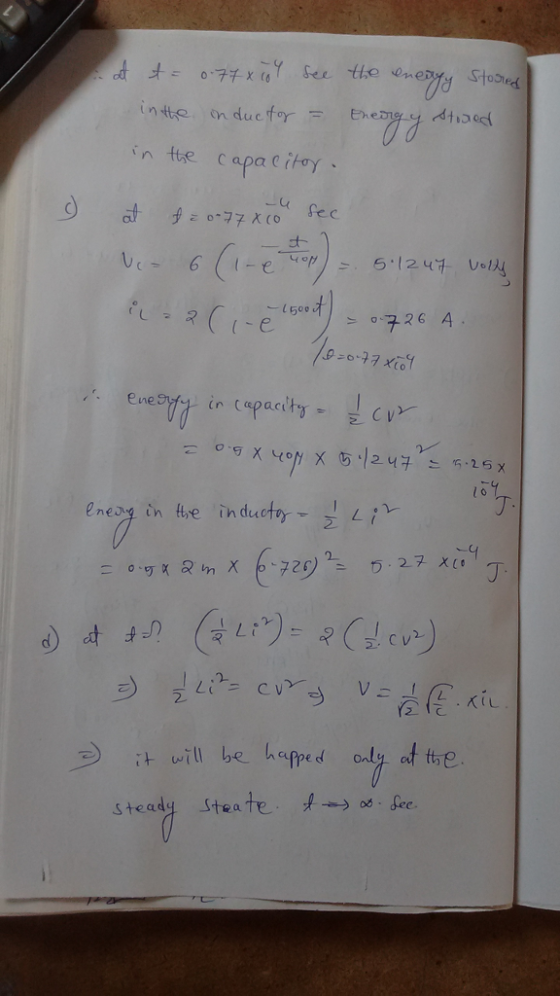

Engineering circuit analysis by Hayt
8th edition
question 27 and figure 9.43
I think 10u(1-t) means 10 (for t<1) and 0
(for t>1)
then, I can't remove this current source because it
continuously make 10micro A
(at t=500ms, t=1.002ms)
I don't know what's wrong now..
366 26. For the circuit of Fig. 9,43, 1 30-) mA. (a) Select R, so th O)6 V (b) Compute e2 ms). (c) Determine the settling, time of t capacitor voltage. (d) Is the inductor...
3, A series RCL circuit contains a 222-Ω resistor, a 1.40-μF capacitor, and a 0.125-H inductor. The 360-Hz ac generator in the circuit has an rms voltage of 208 V. What is the average electric power dissipated by the circuit? A) 22 W B) 81 W C) 166 W D) 191 w E) 102 w 4. An oscillating LC circuit has a resonant frequency of 1.2 × 106 Hz. The diagram shows the system att-0s when there is no charge...
