Homework Answers
Add Answer to:

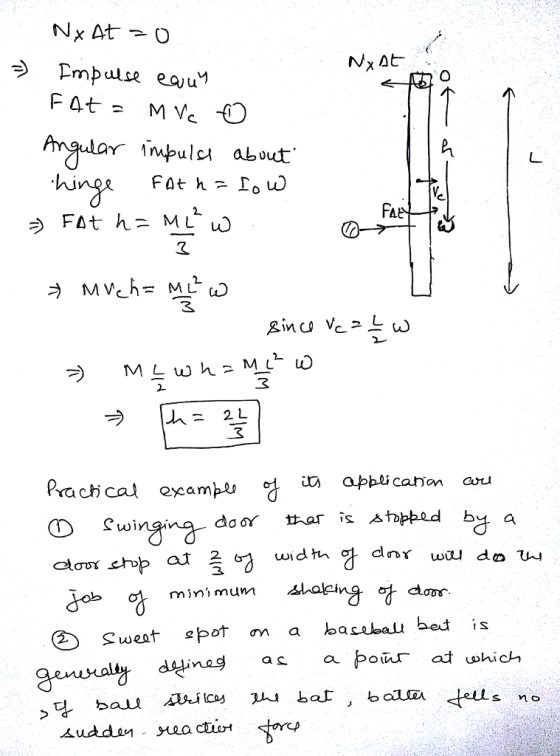

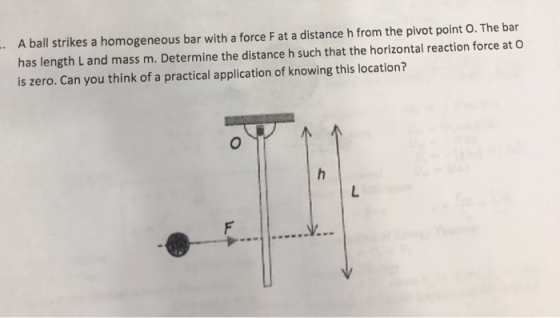

A ball strikes a homogeneous bar with a force F at a distance h from the...
A particle A, with a mass of 205 g, collides with one thin homogeneous metal bar...
A particle A, with a mass of 205 g, collides with one thin
homogeneous metal bar B, with a mass of 1.50 kg. The rod, which can
rotate freely about a horizontal shaft through point O at the upper
end of the rod, is before the shock at rest. Stuck in the shock
particle A on the rod at point P. The distance between points O and
P are ? = 0.840 m. Length of the rod ? = 1,050...
A ball of mass M, moving with speed V, strikes the end of a motionless, uniform...
A ball of mass M, moving with speed V, strikes the end of a motionless, uniform stick of mass Mand length L, fixed at pivot point P. After the collision, the stick is rotating about the pivot point P as shown, and the ball rebounds with speed V/3. The moment of inertia of the stick about Pis (ML2/3. The angular speed w of the stick is: Initial P Final L M MV VV O 4V/L OV/L O2V/L OV
