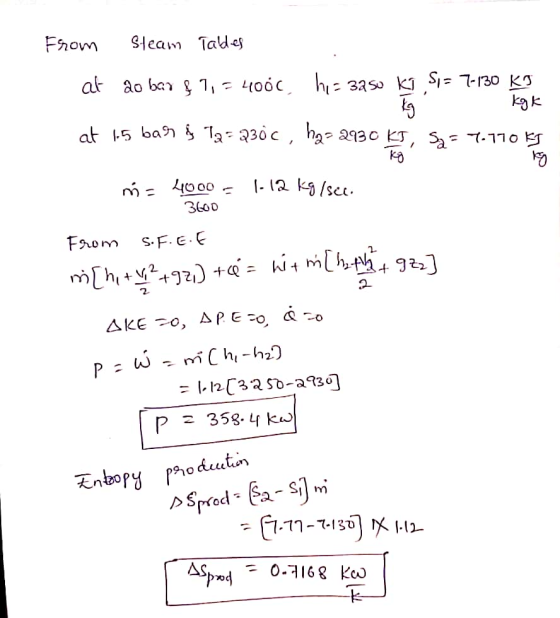

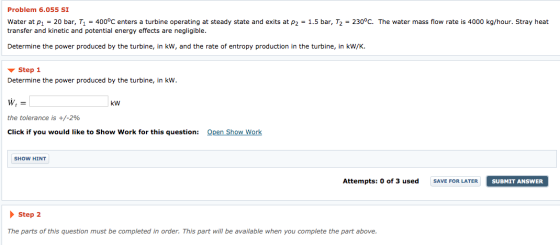

Problem 6.055 SI Water at P1 = 20 bar, T1 = 400°C enters a turbine operating...
3. Water at 20 bar, 400°C enters a turbine operating at steady state and exits at...
Water at 20 bar, 400°C enters a turbine operating at steady state and exits at 1.5 bar. Stray heat transfer and kinetic and potential energy effects are negligible. A hard-to-read datasheet indicates that the quality at the turbine exit is 98%. Can this quality value be correct? If no, explain. If yes, determine the power developed by the turbine, in kJ per kg of water flowing
Problem 3 (70 points) Water vapor at 10 MPa, 600°C enters a turbine operating at steady...
Problem 3 (70 points) Water vapor at 10 MPa, 600°C enters a turbine operating at steady state with a mass flow rate of 9.5 kg/s and exits at 0.1 bar and a quality of 92%. Stray heat transfer and kinetic and potential energy effects are negligible. (a) (30 points) Determine the rate of entropy production, Ocv, in kW/K. (b) (40 points) Determine the isentropic turbine efficiency, .
Problem 4. Water vapor at 6 MPa, 600 °C enters a turbine operating at steady state...
Problem 4. Water vapor at 6 MPa, 600 °C enters a turbine operating at steady state and expands to 10 kPa. The mass flow rate is 2 kg/s, and the power developed is 2626 kW. Stray heat transfer and kinetic and potential energy effects are negligible. Determine (a) the isentropic turbine efficiency and (b) the rate of entropy production within the turbine in kw/K.
Water vapor at 5 MPa, 320 C enters a turbine operating at steady state and expands...
Water vapor at 5 MPa, 320 C enters a turbine operating at steady
state and expands to 0.1 bar. The mass flow rate is 6.52 kg/s, and
the isentropic turbine efficiency is 92%. Stray heat and kinetic
and potential energy effects are negligible. Determine the power
developed by the turbine in kW.
ht 6/3 of En Help I S Water vapor at 5 MPa, 320°C enters a turbine operating at steady state and expands to 0.1 bar. The mass flow...
1. Superheated water steam at 5 bar and 360 C enters a turbine operating at steady...
1. Superheated water steam at 5 bar and 360 C enters a turbine operating at steady state with a volume rate of 0.7 m3/s and expanded adiabatically to the exit state of 1 bar and 200 C, respectively. Kinetics and potential energy changes can be neglected. Determine: a) (2 pts) mass flow rate in kg/s (2 pts) power developed in kW (3 pts) total rate of entropy production in kW/K (4 pts) isentropic turbine efficiency
Steam enters the first-stage turbine shown in Fig. P4.50 at 40 bar and 500℃
Steam enters the first-stage turbine shown in Fig. P4.50 at 40 bar and 500℃ with a volumetric flow rate of 90 m3/min. Steam exits the turbine at 20 bar and 400℃. The steam is then reheated at constant pressure to 500℃ before entering the second-stage turbine. Steam leaves the second stage as saturated vapor at 0.6 bar. For operation at steady state, and ignoring stray heat transfer and kinetic and potential energy effects, determine the(a) mass flow rate of the...
Problem 12.043 SI Air enters a compressor operating at steady state at 50°C, 0.9 bar, 70%...
Problem 12.043 SI Air enters a compressor operating at steady state at 50°C, 0.9 bar, 70% relative humidity with a volumetric flow rate of 0.8 m3/s. The molst alr exits the compressor at 155°C, 1.5 bar Assuming the compressor is well insulated, determine: (a) the relative humidity at the exit, in percent (b) the magnitude of the power input, in kVW (c) the rate of entropy production, in kW/K
Steam enters a turbine operating at steady state at 30 bar, 400 °C with a mass flow rate of 126 kg/min and exits as saturated vapor at 0.2 bar, producing power at a rate of 1.5 MW. Kinetic and po...
Steam enters a turbine operating at steady state at 30 bar, 400 °C with a mass flow rate of 126 kg/min and exits as saturated vapor at 0.2 bar, producing power at a rate of 1.5 MW. Kinetic and potential energy effects can be ignored. Determine the followings. (a) (5 points) The rate of heat transfer, in kW. (b) (15 points) The rate of entropy production, in kW/K, for an enlarged control volume that includes the turbine and enough of...
| MESSAGE HTINSTRICTO" APULL SORtEN PRINTER VERMON_. BACK Problem 6.097 ST Water vapor at 5 MPa,...
| MESSAGE HTINSTRICTO" APULL SORtEN PRINTER VERMON_. BACK Problem 6.097 ST Water vapor at 5 MPa, 320 C enters a turbine operating at steady state and expands to 0.1 bar The mass flow rate s 4.52 kg/s and the 1s tropic turbine effioeney is 92%. Stray heat transfer and kinetic and potential energy effects are negligible. Determine the power developed by the turbine, in kw. kw the tolerance is +/-5% Click if you would like to Show Work for this...
Problem 4.070 SI The figure below shows a turbine-driven pump that provides water to a mixing...
Problem 4.070 SI The figure below shows a turbine-driven pump that provides water to a mixing chamber located dz 5 m higher than the pump, where -20 kg/s. Steady-state operating data for the turbine and pump are labeled on the figure. Heat transfer from the water to its surroundings occurs at a rate of 2 kW. For the turbine, heat transfer with the surroundings and potential energy effects are negligible. Kinetic energy effects at all numbered states can be ignored....
Problem 3 (70 points) Water vapor at 10 MPa, 600°C enters a turbine operating at steady state with a mass flow rate of 9.5 kg/s and exits at 0.1 bar and a quality of 92%. Stray heat transfer and kinetic and potential energy effects are negligible. (a) (30 points) Determine the rate of entropy production, Ocv, in kW/K. (b) (40 points) Determine the isentropic turbine efficiency, .
Problem 4. Water vapor at 6 MPa, 600 °C enters a turbine operating at steady state and expands to 10 kPa. The mass flow rate is 2 kg/s, and the power developed is 2626 kW. Stray heat transfer and kinetic and potential energy effects are negligible. Determine (a) the isentropic turbine efficiency and (b) the rate of entropy production within the turbine in kw/K.
Water vapor at 5 MPa, 320 C enters a turbine operating at steady
state and expands to 0.1 bar. The mass flow rate is 6.52 kg/s, and
the isentropic turbine efficiency is 92%. Stray heat and kinetic
and potential energy effects are negligible. Determine the power
developed by the turbine in kW.
ht 6/3 of En Help I S Water vapor at 5 MPa, 320°C enters a turbine operating at steady state and expands to 0.1 bar. The mass flow...
1. Superheated water steam at 5 bar and 360 C enters a turbine operating at steady state with a volume rate of 0.7 m3/s and expanded adiabatically to the exit state of 1 bar and 200 C, respectively. Kinetics and potential energy changes can be neglected. Determine: a) (2 pts) mass flow rate in kg/s (2 pts) power developed in kW (3 pts) total rate of entropy production in kW/K (4 pts) isentropic turbine efficiency
Problem 12.043 SI Air enters a compressor operating at steady state at 50°C, 0.9 bar, 70% relative humidity with a volumetric flow rate of 0.8 m3/s. The molst alr exits the compressor at 155°C, 1.5 bar Assuming the compressor is well insulated, determine: (a) the relative humidity at the exit, in percent (b) the magnitude of the power input, in kVW (c) the rate of entropy production, in kW/K
Steam enters a turbine operating at steady state at 30 bar, 400 °C with a mass flow rate of 126 kg/min and exits as saturated vapor at 0.2 bar, producing power at a rate of 1.5 MW. Kinetic and potential energy effects can be ignored. Determine the followings. (a) (5 points) The rate of heat transfer, in kW. (b) (15 points) The rate of entropy production, in kW/K, for an enlarged control volume that includes the turbine and enough of...
| MESSAGE HTINSTRICTO" APULL SORtEN PRINTER VERMON_. BACK Problem 6.097 ST Water vapor at 5 MPa, 320 C enters a turbine operating at steady state and expands to 0.1 bar The mass flow rate s 4.52 kg/s and the 1s tropic turbine effioeney is 92%. Stray heat transfer and kinetic and potential energy effects are negligible. Determine the power developed by the turbine, in kw. kw the tolerance is +/-5% Click if you would like to Show Work for this...
Problem 4.070 SI The figure below shows a turbine-driven pump that provides water to a mixing chamber located dz 5 m higher than the pump, where -20 kg/s. Steady-state operating data for the turbine and pump are labeled on the figure. Heat transfer from the water to its surroundings occurs at a rate of 2 kW. For the turbine, heat transfer with the surroundings and potential energy effects are negligible. Kinetic energy effects at all numbered states can be ignored....
