Add Answer to:

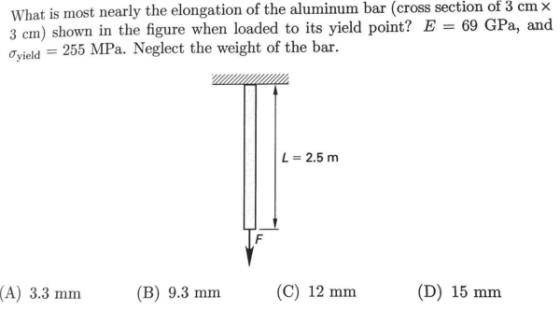

What is most nearly the elongation of the aluminum bar (cross section of 3 cm x...
A bar having the cross section shown has been formed by securely bonding brass and aluminum...
A bar having the cross section shown has been formed by securely bonding brass and aluminum stock. Using the data given in the table, determine the largest permissible bending moment when the composite bar is bent about a vertical axis. Take x= 46 mm. Modulus of elasticity Allowable stress Aluminum 70 GPa 100 MPa Brass 105 GPa 160 MPa 10 mm 10 mm Aluminum 10 mm Brass 10 mm |_40 mm / 1 The largest permissible bending moment when the...
1. Consider a bar under tension. The bar has length L, rectangular cross-section of sides b...
1. Consider a bar under tension. The bar has length L, rectangular cross-section of sides b and h, Young's modulus E, density p, and applied tensile force P. a) If all parameters are fixed except for h, find the value of h that minimizes the mass of the bar under stress, elongation, and stiffness constraints. Assume safety factors oo, Os, and Ok and failure values o*, 8*, and k* b) Also find the minimum mass of the bar m under...
DQuestion 17 5 pts The cross section of a composite beam made of aluminum and steel...
DQuestion 17 5 pts The cross section of a composite beam made of aluminum and steel is shown in the figure. The moduli of elasticity are Ea 75 GPa and Es 200 GPa. Under the action of a bending moment that produces a maximum stress of 50 MPa in the aluminum, what is the maximum stress in the steel (MPa)? 30 mm 40 mm Aluminunm Steel 80 mm 0
An aluminum bar 200 mm long and having a square cross section 20.0 mm on an...
An aluminum bar 200 mm long and having a square cross section 20.0 mm on an edge is pulled in tension with a load of 55, 600 N and experiences an elongation of 0.395 mm. Assuming that the deformation is entirely elastic, calculate the modulus of elasticity of the aluminum.
The cross section of the cantilever beam loaded as shown in Fig. 8-20 is rectangular, 50 × 75 mm. The bar, 1 m long, i...
The cross section of the cantilever beam loaded as shown in
Fig. 8-20 is rectangular, 50 × 75 mm. The bar, 1 m long, is
aluminum for which E = 65 GPa. Determine the permissible maximum
intensity of loading if the maximum deflection is not to exceed 5
mm and the maximum stress is not to exceed 50 MPa.
Ans. w0 = 14.1 kN/m and 17.1 kN/m. Select 14.1 kN/m.
oment 3 Fig. 8-20
oment 3 Fig. 8-20
An aluminum bar 3.90 m long has a rectangular cross section 1.26 cm by 5.35 cm...
An aluminum bar 3.90 m long has a rectangular cross section 1.26 cm by 5.35 cm . Part A) What is its resistance? I got R= 1.52*10^-4 Ω Part B) What is the length of a copper wire 1.45 mm in diameter having the same resistance? L= ? m
Question 3 For the simply supported steel beam with cross section and loading shown (see Figure...
Question 3 For the simply supported steel beam with cross section and loading shown (see Figure 3a), knowing that uniformly distributed load w=60 kN/m, Young modulus E = 200 GPa, and yield stress Cyield=200 MPa (in both tension and compression). ул 15 mm w=60 kN/m ... 1 B A 15 mm + 300 mm IC - i 2.5m 1 1 15 mm 7.5m 1 150 mm Figure 3a (a) Check if: the beam is safe with respect to yielding (using...
rn A specimen of copper having a rectangular cross section 15.2 mm x 19.1 mm is...
rn A specimen of copper having a rectangular cross section 15.2 mm x 19.1 mm is pulled in tension with 44,500 N force, producing only elastic deformation. Calculate the resulting strain. Round off the answer to three significant figures. Answer: 1.394e-3 A cylindrical specimen of a nickel alloy having an elastic modulus of 207 GPa and an original diameter of 10.2 mm experiences only elastic deformation when a tensile load of 8900 N is applied. Compute the maximum length of...
A bar ABCD with varying cross section and subjected to axial loads is shown schematically in...
A bar ABCD with varying cross section and subjected to axial loads is shown schematically in Figure Q3. Take modulus of elasticity of bar as 202 GPa. The length of each section L1 = 111 mm; L2 = 205 mm; and L3 = 451 mm. The cross sectional dimensions are as follows: Section 1 is square with side 49 mm, Section 2 is circular with diameter 79 mm and Section 3 is circular with diameter 32 mm. The forces are...
Please make sure your answer. Thank you 2. A solid aluminum (E = 70 GPa, yield...
Please make sure your answer. Thank you
2. A solid aluminum (E = 70 GPa, yield strength = 250 MPa) cylindrical bar transitions to a truncated cone and is loaded axially at B and C as shown. The cylindrical section is 3.0 cm in diameter and the end of the truncated cone is 1.0 cm in diameter. The length of AB = 12 cm. of BC = 3 cm, and CD = 15 prior to the loads being applied. a)...
A bar having the cross section shown has been formed by securely bonding brass and aluminum stock. Using the data given in the table, determine the largest permissible bending moment when the composite bar is bent about a vertical axis. Take x= 46 mm. Modulus of elasticity Allowable stress Aluminum 70 GPa 100 MPa Brass 105 GPa 160 MPa 10 mm 10 mm Aluminum 10 mm Brass 10 mm |_40 mm / 1 The largest permissible bending moment when the...
1. Consider a bar under tension. The bar has length L, rectangular cross-section of sides b and h, Young's modulus E, density p, and applied tensile force P. a) If all parameters are fixed except for h, find the value of h that minimizes the mass of the bar under stress, elongation, and stiffness constraints. Assume safety factors oo, Os, and Ok and failure values o*, 8*, and k* b) Also find the minimum mass of the bar m under...
DQuestion 17 5 pts The cross section of a composite beam made of aluminum and steel is shown in the figure. The moduli of elasticity are Ea 75 GPa and Es 200 GPa. Under the action of a bending moment that produces a maximum stress of 50 MPa in the aluminum, what is the maximum stress in the steel (MPa)? 30 mm 40 mm Aluminunm Steel 80 mm 0
The cross section of the cantilever beam loaded as shown in
Fig. 8-20 is rectangular, 50 × 75 mm. The bar, 1 m long, is
aluminum for which E = 65 GPa. Determine the permissible maximum
intensity of loading if the maximum deflection is not to exceed 5
mm and the maximum stress is not to exceed 50 MPa.
Ans. w0 = 14.1 kN/m and 17.1 kN/m. Select 14.1 kN/m.
oment 3 Fig. 8-20
oment 3 Fig. 8-20
Question 3 For the simply supported steel beam with cross section and loading shown (see Figure 3a), knowing that uniformly distributed load w=60 kN/m, Young modulus E = 200 GPa, and yield stress Cyield=200 MPa (in both tension and compression). ул 15 mm w=60 kN/m ... 1 B A 15 mm + 300 mm IC - i 2.5m 1 1 15 mm 7.5m 1 150 mm Figure 3a (a) Check if: the beam is safe with respect to yielding (using...
rn A specimen of copper having a rectangular cross section 15.2 mm x 19.1 mm is pulled in tension with 44,500 N force, producing only elastic deformation. Calculate the resulting strain. Round off the answer to three significant figures. Answer: 1.394e-3 A cylindrical specimen of a nickel alloy having an elastic modulus of 207 GPa and an original diameter of 10.2 mm experiences only elastic deformation when a tensile load of 8900 N is applied. Compute the maximum length of...
A bar ABCD with varying cross section and subjected to axial loads is shown schematically in Figure Q3. Take modulus of elasticity of bar as 202 GPa. The length of each section L1 = 111 mm; L2 = 205 mm; and L3 = 451 mm. The cross sectional dimensions are as follows: Section 1 is square with side 49 mm, Section 2 is circular with diameter 79 mm and Section 3 is circular with diameter 32 mm. The forces are...
Please make sure your answer. Thank you
2. A solid aluminum (E = 70 GPa, yield strength = 250 MPa) cylindrical bar transitions to a truncated cone and is loaded axially at B and C as shown. The cylindrical section is 3.0 cm in diameter and the end of the truncated cone is 1.0 cm in diameter. The length of AB = 12 cm. of BC = 3 cm, and CD = 15 prior to the loads being applied. a)...
