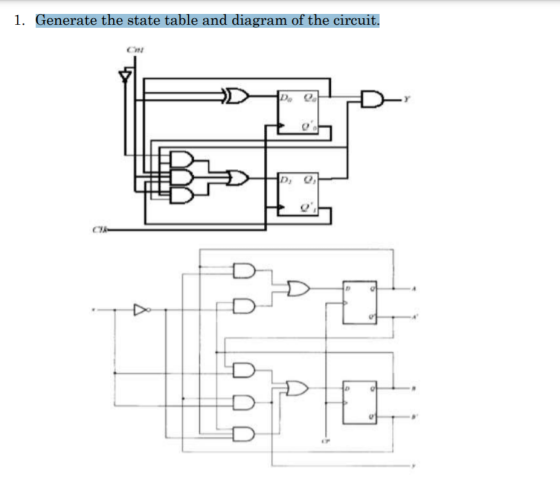

Generate the state table and diagram of the circuit.
Kindly help with task below, a timely answer would be highly appreciated.

We need at least 10 more requests to produce the answer.
0 / 10 have requested this problem solution
The more requests, the faster the answer.
3.2) Complete the circuit diagram in Figure 4 below based on the logic circuit in Figure 3 above Figure 4. Timing diagram based on logic circuit in Figure 3 4.1) Derive the Truth Table of the logic circuit in Figure 5 below Figure 5. Logic circuit of a multiplexer The circuit is called a multiplexer. Could you explain why? You are welcome to research online to help you with the answer 4.2)
Derive the state diagram, state table, state assignment table, and logic network using D flip-flops for the following circuit: A FSM has two input, w1 and w2, and an output z. The machine has to generate z=1 when the previous four values of w1 and w2 are the same; otherwise z=0. Overlapping patterns are allowed. An example of the desired behavior is: w1: 0 1 1 0 1 1 1 0 0 0 1 1 0 w2: 1 1 1...
1. Given the state diagram shown below for a two-state synchronous sequential Mealy circuit with input. and output z, realize the circuit using D flip-flops. Your answer must include the state transition,excita- tion, and output tables, the excitation equation(s), and a labeled circuit diagram 1/0 2. Given the state diagram in Problem 1, realize the circuit using JK flip-flops. Your answer must include the state transition, excitation, and output tables, the excitation equation(s), and a labeled circuit diagram. 3. Given...
Using the Boolean logic expression below, draw circuit diagram with logic gates that will implement your Boolean expression without simplifying or expanding the expression. F(A, B, C, D) = ABD + ABCD + ABCD + ABCD Complete a Truth Table F(A, B, C, D). Use your logic circuit diagram and Boolean logic expression as much as possible.
17. The circuit below is given. Find the state table and diagram, Ap
17. The circuit below is given. Find the state table and diagram, Ap
Given the practical circuit below, draw the Ladder Logic diagram you would expect to see for this circui. Yes, there should be variations from each of your answers. 6. 120 V 20 V 120 V Lamp AR BR LR Neutral 7. You are given the circuit below. Write the correct Truth Table for this circuit Lamp Neutral
Show how a D flip-flop can be constructed using a T flip-flop and other logic gates. Provide the circuit, characteristic table and a timing diagram to demonstrate the operation (generate your own inputs).
introduction to HDL, 1. Logic Circuits. Draw the equivalent logic circuit diagram of the given expression. F = (ab)̅̅̅̅̅̅ + (ac)2. Truth Table. Provide the truth table from your logic circuit in part 1. 3. K-Mapping. Simplify the circuit using the truth table you derived from part 2. 4. Back to Logic Circuits. Draw the equivalent logic circuit diagram of your simplified expression frompart 3.
Sequence Detector: The machine has to generate z 1 when it detects the sequence 1010011. Once the sequence is detected, the circuit looks for a new sequence. Draw the State Diagram (any representation), State Table, and Excitation Table. Is this a Mealy or a Moore machine? Why? Provide the excitation equations (simplify your circuit using K-maps) Sketch the circuit.
Can anyone explain how can you
get the above logic diagram? I have no clue how the answer is like
that. I've been trying to derive the truth table and draw the logic
diagram, but it's not the same as the above answer.
Exercise 9. Design of Sequential Circuits Design the sequential circuit illustrated by Figure 10. The circuit has an input X and an output Z. The out put Z goes high (1) whenever the target sequence 1-1-1 has...
