(a)a closed brayton cycle is being designed for an advaced nuclear reactor system. Materials limitation set...
(a)a closed brayton cycle is being designed for an advaced nuclear reactor system. Materials limitation set the maximum reactor coolant exit temperature at 550 degrees. The gas leaving the turbine is cooled in an air cooler to 150 degrees celcius. If the working fluid may be considered to be an ideal gas with V=1.66( value of v for monatomic gas) what is the maximum cycle efficiency possible?
(b) for the same temperature as indicated in part (a), what
would be the maximum thermodynamic efficiency be if the working
fluid had a v=1.4 (value for diatomic gas)?

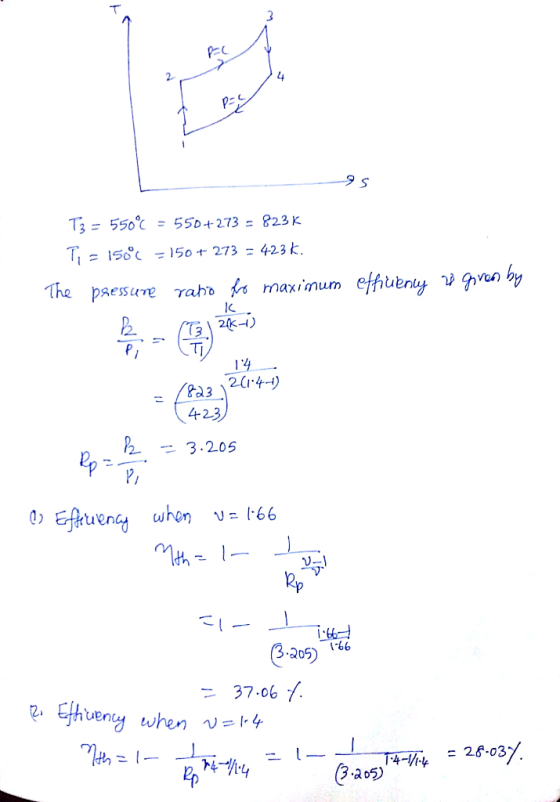

Homework Answers
Add Answer to:
(a)a closed brayton cycle is being designed for an advaced
nuclear reactor system. Materials limitation set...
