Homework Answers
Add Answer to:
4. Find the value of R for maximum power transfer in the circuit below and find...
Q17: In the circuit given below, calculate the value of R required for the transfer of...

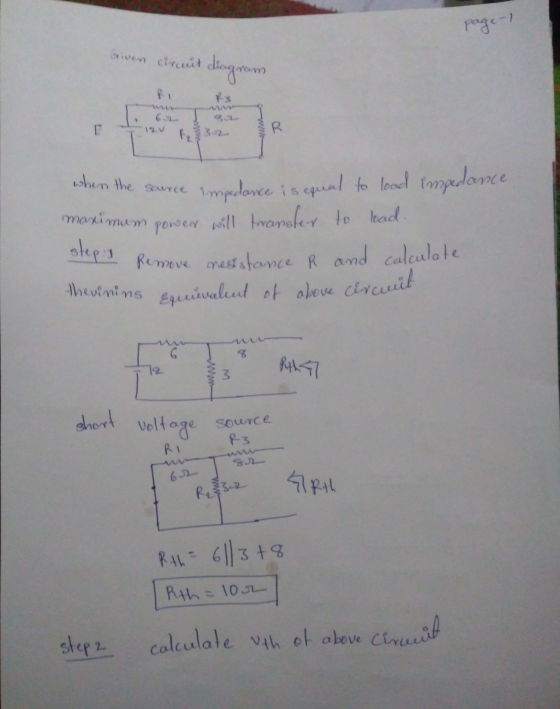

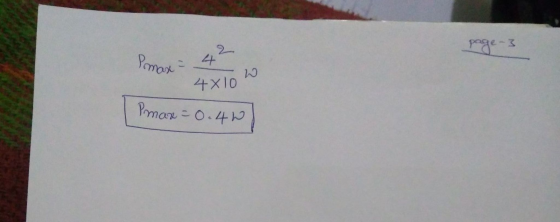

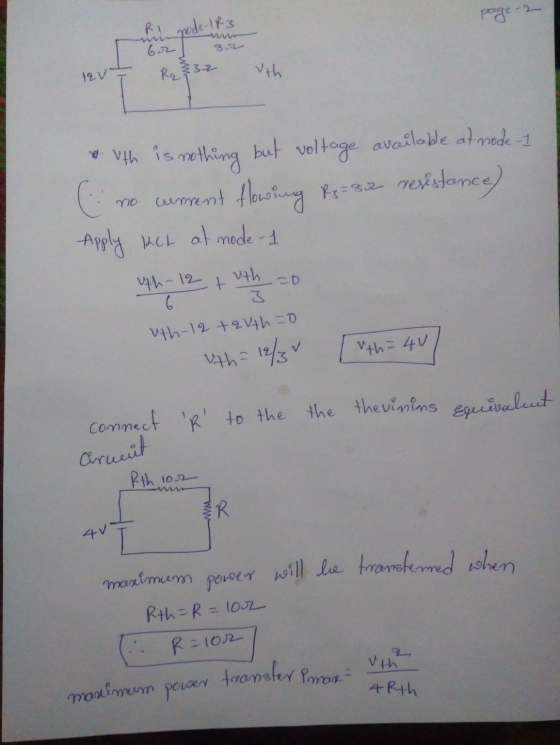

Q17: In the circuit given below, calculate the value of R required for the transfer of maximum power to the load having a resistance of 3 ohms. R 612 LOAD 322
Answer: R, Problem1: In the following circuit find R, for maximum power transfer and the power...
Answer: R, Problem1: In the following circuit find R, for maximum power transfer and the power transferred to the R you compute. 3% 2 3AC
Bonus: Maximum Power transfer i R RI. a. Show that R -Ri for maximum power transfer...
Bonus: Maximum Power transfer i R RI. a. Show that R -Ri for maximum power transfer in the circuit above (Use Calculus) b. What is the relationship between Zh and Zu in the circuit below? ac circuit
(a) Find RL in the network below to achieve maximum power transfer. (b) What is the...
(a) Find RL in the network below to achieve maximum power transfer. (b) What is the maximum power? 2 ΚΩ 2 kn 12V 32 kn 32 kn SRL
Find the Thevenin's equivalent, the Za value for Maximum Power transfer, and the value of the power (15 Points). Find the Thevenin's equivalent, the Za value for Maximum Power transf...
Find the Thevenin's equivalent, the Za value for Maximum Power transfer, and the value of the power (15 Points).
Find the Thevenin's equivalent, the Za value for Maximum Power transfer, and the value of the power (15 Points).
(4) Find the power consumed by resistance 'R' by using maximum power transfer theorem. (2.5 points)...
(4) Find the power consumed by resistance 'R' by using maximum power transfer theorem. (2.5 points) 2A 4n2 62 RO2 4A -20V
In the circuit given in Figure below, the resistor (R L ) is adjusted until it absorbs maximum power from the circuit.
In the circuit given in Figure below, the resistor (R L ) is adjusted until it absorbs maximum power from the circuit. Find the following:a) Thevenin equivalent voltage using node voltage methodb) Thevenin equivalent resistance using methodc) Thevenin equivalent resistance using the test-source methodd) Value of R L for maximum power transfer and maximum power delivered to the load resistor
Q#2 The variable resistor Ro in the circuit below is adjusted for maximum power transfer to...
Q#2 The variable resistor Ro in the circuit below is adjusted for maximum power transfer to Ro a) b) c) Find the value of Ro Find the maximum power that can be delivered to Ro What percentage of the total power developed in the circuit is delivered to Ro found in parta)? 316is 16? 32 ? A 180 ? 200 V 64 ? 48 ?
Find R in the network in the figure below in order to achieve maximum power transfer....
Find R in the network in the figure below in order to achieve maximum power transfer. 2 ΚΩ ΑΛΛ- 4 ΚΩ +2V 4 ΚΩ 1 ΚΩ RL RL k2 the tolerance is +/-2%
· [Bonus] Determine the Thevenin equivalent circuit below when v40 cos(4000t- 30°). Find the time domain expression for in the circuit below. What is the time domain express for the maximum power...
· [Bonus] Determine the Thevenin equivalent circuit below when v40 cos(4000t- 30°). Find the time domain expression for in the circuit below. What is the time domain express for the maximum power transfer for the circuit? for maximum power transfer? Reminder: Express all answers in time domain. Vth and the value for Rth 115 pts 1/80 mF 20 mH 80 2
· [Bonus] Determine the Thevenin equivalent circuit below when v40 cos(4000t- 30°). Find the time domain expression for in...
Q17: In the circuit given below, calculate the value of R required for the transfer of maximum power to the load having a resistance of 3 ohms. R 612 LOAD 322
Answer: R, Problem1: In the following circuit find R, for maximum power transfer and the power transferred to the R you compute. 3% 2 3AC
Bonus: Maximum Power transfer i R RI. a. Show that R -Ri for maximum power transfer in the circuit above (Use Calculus) b. What is the relationship between Zh and Zu in the circuit below? ac circuit
(a) Find RL in the network below to achieve maximum power transfer. (b) What is the maximum power? 2 ΚΩ 2 kn 12V 32 kn 32 kn SRL
Find the Thevenin's equivalent, the Za value for Maximum Power transfer, and the value of the power (15 Points).
Find the Thevenin's equivalent, the Za value for Maximum Power transfer, and the value of the power (15 Points).
(4) Find the power consumed by resistance 'R' by using maximum power transfer theorem. (2.5 points) 2A 4n2 62 RO2 4A -20V
Q#2 The variable resistor Ro in the circuit below is adjusted for maximum power transfer to Ro a) b) c) Find the value of Ro Find the maximum power that can be delivered to Ro What percentage of the total power developed in the circuit is delivered to Ro found in parta)? 316is 16? 32 ? A 180 ? 200 V 64 ? 48 ?
Find R in the network in the figure below in order to achieve maximum power transfer. 2 ΚΩ ΑΛΛ- 4 ΚΩ +2V 4 ΚΩ 1 ΚΩ RL RL k2 the tolerance is +/-2%
· [Bonus] Determine the Thevenin equivalent circuit below when v40 cos(4000t- 30°). Find the time domain expression for in the circuit below. What is the time domain express for the maximum power transfer for the circuit? for maximum power transfer? Reminder: Express all answers in time domain. Vth and the value for Rth 115 pts 1/80 mF 20 mH 80 2
· [Bonus] Determine the Thevenin equivalent circuit below when v40 cos(4000t- 30°). Find the time domain expression for in...
