Homework Answers
Add Answer to:

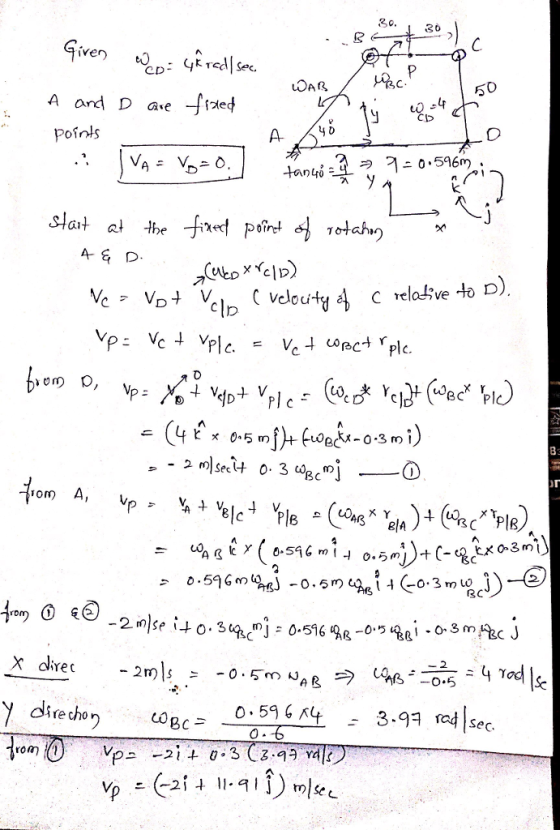

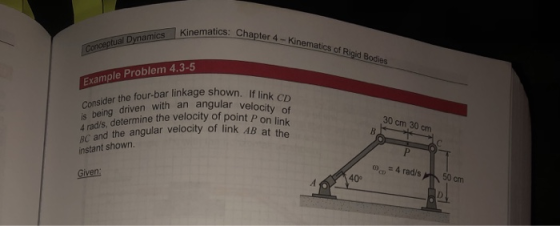

matics: Chapter 4- Kinematics of Rigid Bodies Example Problem 4.3-5 Consider the four-bar linkage shown is...
A four-bar linkage is shown in the figure (the ground "link" OC is considered the fourth...
A four-bar linkage is shown in the figure (the ground "link" OC is considered the fourth bar). If the drive link OA has a counterclockwise angular velocity o-5.0 rad/s, determine the angular velocities of links AB and BC. The angular velocities are positive if counterclockwise, negative if clockwise 16° 455 mm 355 135 mm 53° 0 Answers: AB 0.213 B0.380
Chapter 5, Problem 5/120 If link AB of the four-bar linkage has a constant counterclockwise angular...
Chapter 5, Problem 5/120 If link AB of the four-bar linkage has a constant counterclockwise angular velocity of 39 rad/s during an interval which includes the instant represented, determine the angular acceleration of AO (positive if counterclockwise, negative if clockwise) and the acceleration of point D. 75 mm 150 mm 0 115 115 Answers: GAO = rad/s2 aD = i) m/s2
Pl. (50pts) The four-bar linkage in the posture shown is driven by crank 2 at (02-25rpm cew. Dete...
Pl. (50pts) The four-bar linkage in the posture shown is driven by crank 2 at (02-25rpm cew. Determine: I) Angular velocities of link 3 2) Angular velocities of link 4 3) Velocity of point P 0.356 0.950 / 0.785 0.544 o: VBA 43 VA 02 04
Pl. (50pts) The four-bar linkage in the posture shown is driven by crank 2 at (02-25rpm cew. Determine: I) Angular velocities of link 3 2) Angular velocities of link 4 3) Velocity of point...
Q3. 1 Figure Q3 For the four bar linkage shown in Figure Q3, assume the diagram...
Q3. 1 Figure Q3 For the four bar linkage shown in Figure Q3, assume the diagram is drawn to scale and that crank link 2 has a length of 0.2m and an angular velocity of 20rad/s clockwise driven by an input torque of 5Nm. a) Find the positions with respect to the crank origin at A of the instant centre of velocity between the coupler link 3 and the ground link 1 and between the crank link 2 and the...
The mechanism shown in the figure below has rigid links pivoted at A, B, C and D. The link BCE is a rigid plate. The d...
The mechanism shown in the figure below has rigid links pivoted at A, B, C and D. The link BCE is a rigid plate. The dimensions of the links are BC = 110 mm BE 70 mm CE 60 mm CD 30 mm AB = 50 mm At the instant when both angles ABC and BCD are 90°, the link AB has a clockwise angular velocity of 40 rad/s. Determine the angular velocity of link BCE A Determine the angular...
2. (20 points) Figure 2 shows a four-bar linkage. Body 1 is the fixed link or...
2. (20 points) Figure 2 shows a four-bar linkage. Body 1 is the fixed link or the ground, body 2 is the crankshaft OA, body 3 is the coupler AB, and body 4 is the rocker BC. Using the complex-algebra approach, obtain an expression for the angular velocities of the coupler and the rocker in terms of the angular orientation and angular velocity of the crankshaft. Assume that the angular velocity of the crankshaft is constant and is equal to...
Problem 3 - Rigid Body Kinematics (10 pts) Roller B of the linkage has a velocity...
Problem 3 - Rigid Body Kinematics (10 pts) Roller B of the linkage has a velocity of 0.75 m/s to the right as the angle o passes 60°. Locate the instantaneous center of zero velocity for bar AB and determine its angular velocity WAB: Equations you may need: B Law of sines sin A b sin B a с α 360 mm 360 mm A C D Law of cosines b BO 0.75 m/s c2 = a2 + b2 –...
If link AB of the four-bar linkage has a constant counterclockwise angular velocity of 30 rad/s...
If link AB of the four-bar linkage has a constant
counterclockwise angular velocity of 30 rad/s during an interval
which includes the instant represented, determine the angular
acceleration of AO (positive if counterclockwise, negative
if clockwise) and the acceleration of point D.
80 mm L - - OAB 195 mm 130 130 mm 1 mm 1 Answers: DAO = rad/s2 ad = 0 + j) m/s2
Given: A four-bar linkage, with w2=10 rpm, as shown in the figure Please do the Position...
Given: A four-bar linkage, with w2=10 rpm, as shown in the figure Please do the Position Plot, Position Analysis, Velocity Plot and Velocity Analysis, and find Find: VA VB, Vc, VD, VE E 3 AB = 1.75 AD= 3.55 CD=2.75 BC = 5.15 BE=2.5 EC = 4.0 BC 2 120
Given: A four-bar linkage, with w2=10 rpm, as shown in the figure Please do the Position Plot, Position Analysis, Velocity Plot and Velocity Analysis, and find Find: VA VB, Vc,...
Figure 8 (c) Figure 9 illustrates a four-bar linkage mechanism that is used to operate a...
Figure 8 (c) Figure 9 illustrates a four-bar linkage mechanism that is used to operate a washing system on a vegetable harvesting line. The mechanism consists of a crank OA which moves in a limited arc and an L-shaped connecting rod AB which tilts a large bucket of water DB onto the vegetables. The crank rotates with a constant angular velocity wOA = 4x rad/s. For the instant shown with the crank vertical and the angle 8 = 30° determine...
A four-bar linkage is shown in the figure (the ground "link" OC is considered the fourth bar). If the drive link OA has a counterclockwise angular velocity o-5.0 rad/s, determine the angular velocities of links AB and BC. The angular velocities are positive if counterclockwise, negative if clockwise 16° 455 mm 355 135 mm 53° 0 Answers: AB 0.213 B0.380
Chapter 5, Problem 5/120 If link AB of the four-bar linkage has a constant counterclockwise angular velocity of 39 rad/s during an interval which includes the instant represented, determine the angular acceleration of AO (positive if counterclockwise, negative if clockwise) and the acceleration of point D. 75 mm 150 mm 0 115 115 Answers: GAO = rad/s2 aD = i) m/s2
Pl. (50pts) The four-bar linkage in the posture shown is driven by crank 2 at (02-25rpm cew. Determine: I) Angular velocities of link 3 2) Angular velocities of link 4 3) Velocity of point P 0.356 0.950 / 0.785 0.544 o: VBA 43 VA 02 04
Pl. (50pts) The four-bar linkage in the posture shown is driven by crank 2 at (02-25rpm cew. Determine: I) Angular velocities of link 3 2) Angular velocities of link 4 3) Velocity of point...
Q3. 1 Figure Q3 For the four bar linkage shown in Figure Q3, assume the diagram is drawn to scale and that crank link 2 has a length of 0.2m and an angular velocity of 20rad/s clockwise driven by an input torque of 5Nm. a) Find the positions with respect to the crank origin at A of the instant centre of velocity between the coupler link 3 and the ground link 1 and between the crank link 2 and the...
The mechanism shown in the figure below has rigid links pivoted at A, B, C and D. The link BCE is a rigid plate. The dimensions of the links are BC = 110 mm BE 70 mm CE 60 mm CD 30 mm AB = 50 mm At the instant when both angles ABC and BCD are 90°, the link AB has a clockwise angular velocity of 40 rad/s. Determine the angular velocity of link BCE A Determine the angular...
2. (20 points) Figure 2 shows a four-bar linkage. Body 1 is the fixed link or the ground, body 2 is the crankshaft OA, body 3 is the coupler AB, and body 4 is the rocker BC. Using the complex-algebra approach, obtain an expression for the angular velocities of the coupler and the rocker in terms of the angular orientation and angular velocity of the crankshaft. Assume that the angular velocity of the crankshaft is constant and is equal to...
Problem 3 - Rigid Body Kinematics (10 pts) Roller B of the linkage has a velocity of 0.75 m/s to the right as the angle o passes 60°. Locate the instantaneous center of zero velocity for bar AB and determine its angular velocity WAB: Equations you may need: B Law of sines sin A b sin B a с α 360 mm 360 mm A C D Law of cosines b BO 0.75 m/s c2 = a2 + b2 –...
If link AB of the four-bar linkage has a constant
counterclockwise angular velocity of 30 rad/s during an interval
which includes the instant represented, determine the angular
acceleration of AO (positive if counterclockwise, negative
if clockwise) and the acceleration of point D.
80 mm L - - OAB 195 mm 130 130 mm 1 mm 1 Answers: DAO = rad/s2 ad = 0 + j) m/s2
Given: A four-bar linkage, with w2=10 rpm, as shown in the figure Please do the Position Plot, Position Analysis, Velocity Plot and Velocity Analysis, and find Find: VA VB, Vc, VD, VE E 3 AB = 1.75 AD= 3.55 CD=2.75 BC = 5.15 BE=2.5 EC = 4.0 BC 2 120
Given: A four-bar linkage, with w2=10 rpm, as shown in the figure Please do the Position Plot, Position Analysis, Velocity Plot and Velocity Analysis, and find Find: VA VB, Vc,...
Figure 8 (c) Figure 9 illustrates a four-bar linkage mechanism that is used to operate a washing system on a vegetable harvesting line. The mechanism consists of a crank OA which moves in a limited arc and an L-shaped connecting rod AB which tilts a large bucket of water DB onto the vegetables. The crank rotates with a constant angular velocity wOA = 4x rad/s. For the instant shown with the crank vertical and the angle 8 = 30° determine...
