Parallel Circuit

Question

Question

I'd like to see if I did it correctly. Also, number 2 is quite tricky.

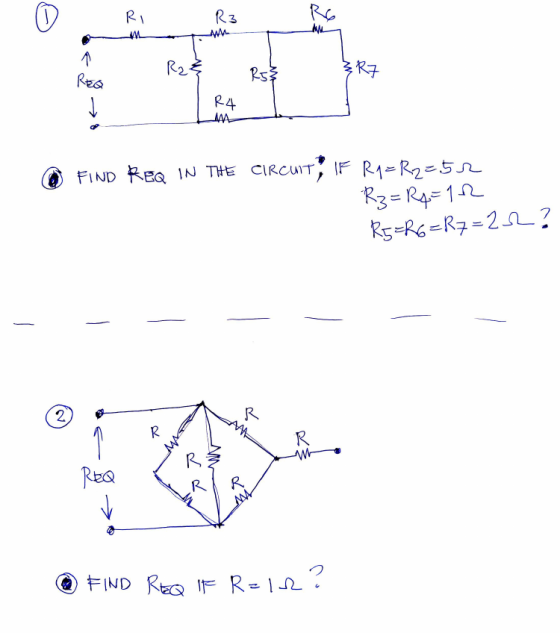

Screenshot (415).png

electricity Parallel-Circuit

Answer 1

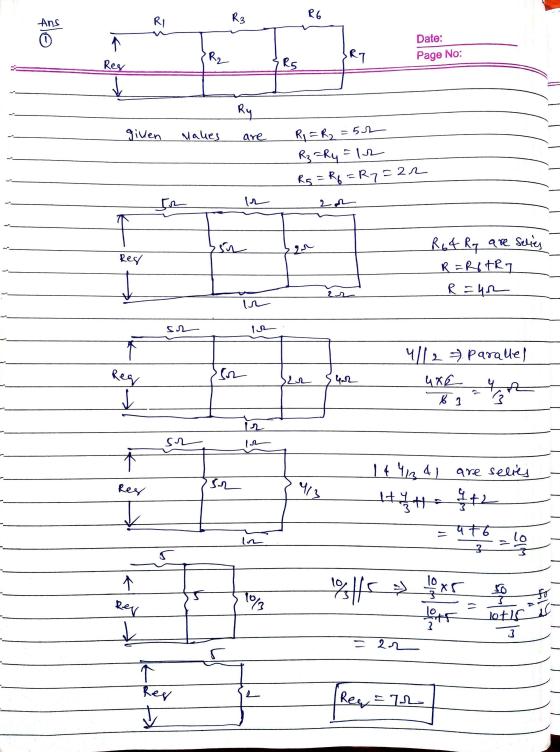

Answer #1

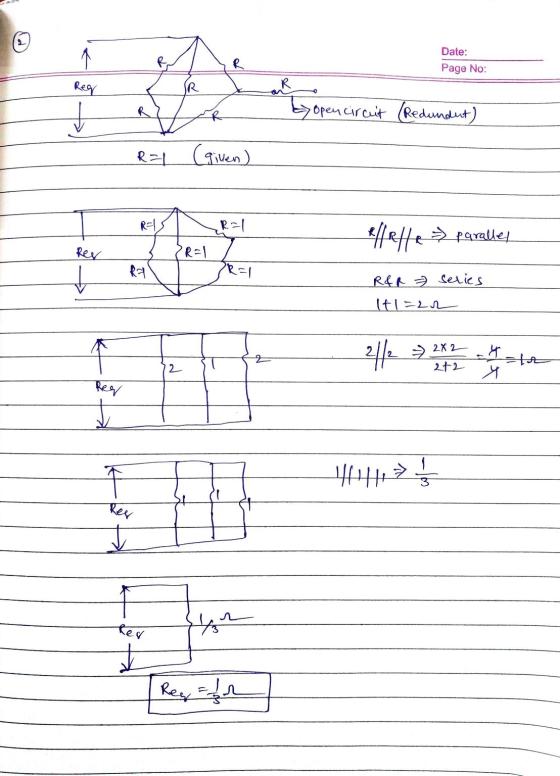

Answer 2
