Homework Answers
Add Answer to:
Problem 3 Ten kilograms of refrigerant-134a fill a weighted piston-cylinder container with the volume of 1.595...
A2. Ten kilograms of R-134a fill a 1.595-m3 weighted piston-cylinder device at a temperature of -26.4...

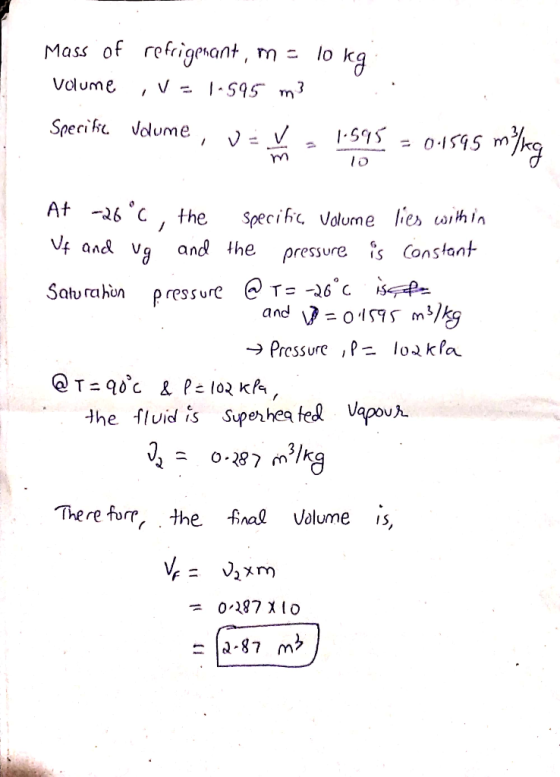

A2. Ten kilograms of R-134a fill a 1.595-m3 weighted piston-cylinder device at a temperature of -26.4 C The container is now heated until the temperature is 90°C. Determine the final volume of the R-134a. R-134a -26.4°C 10 kg 1.595 m3
9.4 kg of R-134a fill a O.7-m weighted piston-cylinder device at a pressure of 200 kPa. The container is now heated...
9.4 kg of R-134a fill a O.7-m weighted piston-cylinder device at a pressure of 200 kPa. The container is now heated until the temperature is 30°C. Determine the initial temperature and final volume of R-134a. Use data from the steam tables. The initial temperature is [ °C. ]m3 The final volume is
9.4 kg of R-134a fill a O.7-m weighted piston-cylinder device at a pressure of 200 kPa. The container is now heated until the temperature is 30°C. Determine the...
9.4 kg of R-134a fill a O.7-m weighted piston-cylinder device at a pressure of 200 kPa....
9.4 kg of R-134a fill a O.7-m weighted piston-cylinder device at a pressure of 200 kPa. The container is now heated until the temperature is 30°C. Determine the initial temperature and final volume of R-134a. Use data from the steam tables. The initial temperature is [ °C. ]m3 The final volume is
Problem 3: A 9-m container is filled with 300 kg of R-134a at 10°C. What is...
Problem 3: A 9-m container is filled with 300 kg of R-134a at 10°C. What is the specific enthalpy of the R-134a in the container? Problem 4: a piston-cylinder device contains 0.6 kg of steam at 200 Cand 0.5 MPa. Steam is cooled at constant pressure until one-half of the mass condenses. Show the process on a T-v diagram b) a) Find the final temperature c) Determine the volume change Problem 5:10 kg of R-134a at 320 kPa fills a...
An insulated piston-cylinder device contains 0.05 m3 of saturated R-134a vapor at 0.8 MPa. The refrigerant...
An insulated piston-cylinder device contains 0.05 m3 of saturated R-134a vapor at 0.8 MPa. The refrigerant is now allowed to expand in a reversible manner (i.e. isentropic) until the pressure drops to 0.4 MPa. Determine (a) the final temperature in the cylinder and (b) the work done by the refrigerant.
1-A piston-cylinder device with a set of stops contains 10 kg of refrigerant-134a. Initially, 8 kg...
1-A piston-cylinder device with a set of stops contains 10 kg of refrigerant-134a. Initially, 8 kg of the refrigerant is in the liquid form, and the temperature is 8°C. Now heat is transferred slowly to the refrigerant until the piston hits the stops, at which point the volume is 400 L. Determine (a) The temperature when the piston first hits the stops and (b) The work done during this expansion process. Also, show the process on a P-V diagram.
0.4 kg of Refrigerant 134a initially fills a piston–cylinder device with a volume of 15 L...
0.4 kg of Refrigerant 134a initially fills a piston–cylinder device with a volume of 15 L at a pressure of 400 kPa. The cylinder is connected to a supply line through a valve. R-134a is flowing in the supply line at 900 kPa and 45°C. The valve is opened, and R-134a is allowed to enter the cylinder. The valve is closed when the volume of the cylinder is triple and the temperature in the cylinder reaches 15°C. During the process,...
fast please 20 min 0.05 m3 of saturated vapor refrigerant-134a is contained in an insulated piston-...
fast please 20 min
0.05 m3 of saturated vapor refrigerant-134a is contained in an insulated piston- cylinder device at 2500 kPa pressure. The refrigerant is now allowed to expand in a reversible manner until the pressure drops to 400 kPa. Determine: (a) the final temperature in the cylinder, and (b) the work done by the refrigerant. . Paragraph BIE
Refrigerant 134a in a cylinder-piston assembly is at 240 kPa with a quality 15% and then...
Refrigerant 134a in a cylinder-piston assembly is at 240 kPa with a quality 15% and then as a result of heat added the quality increases to 45%, what is the change in volume per one unit of mass (m3/kg)? The piston is assumed to move freely but it is sealed tight that does not allow mass exchange. Refrigerant 134a in a cylinder-piston assembly is at 240 kPa with a quality 15% and then as a result of heat added the...
QUESTION 3 A 0.25m of saturated liquid refrigerant-134a at 80°C is contained in frictionless insulated piston-cylinder...
QUESTION 3 A 0.25m of saturated liquid refrigerant-134a at 80°C is contained in frictionless insulated piston-cylinder device as shown in Figure Q2(b). A paddle-wheel is placed inside the cylinder chamber to stir the refrigerant-134a and the paddle wheel transfer a total work of 245 kJ to the fluid. Moreover, a 440 V and 9 amp of resistor is also placed inside the cylinder chamber to heat the refrigerant-134a. With the aid of a P-V diagram, determine the time taken for...
A2. Ten kilograms of R-134a fill a 1.595-m3 weighted piston-cylinder device at a temperature of -26.4 C The container is now heated until the temperature is 90°C. Determine the final volume of the R-134a. R-134a -26.4°C 10 kg 1.595 m3
9.4 kg of R-134a fill a O.7-m weighted piston-cylinder device at a pressure of 200 kPa. The container is now heated until the temperature is 30°C. Determine the initial temperature and final volume of R-134a. Use data from the steam tables. The initial temperature is [ °C. ]m3 The final volume is
9.4 kg of R-134a fill a O.7-m weighted piston-cylinder device at a pressure of 200 kPa. The container is now heated until the temperature is 30°C. Determine the...
9.4 kg of R-134a fill a O.7-m weighted piston-cylinder device at a pressure of 200 kPa. The container is now heated until the temperature is 30°C. Determine the initial temperature and final volume of R-134a. Use data from the steam tables. The initial temperature is [ °C. ]m3 The final volume is
Problem 3: A 9-m container is filled with 300 kg of R-134a at 10°C. What is the specific enthalpy of the R-134a in the container? Problem 4: a piston-cylinder device contains 0.6 kg of steam at 200 Cand 0.5 MPa. Steam is cooled at constant pressure until one-half of the mass condenses. Show the process on a T-v diagram b) a) Find the final temperature c) Determine the volume change Problem 5:10 kg of R-134a at 320 kPa fills a...
1-A piston-cylinder device with a set of stops contains 10 kg of refrigerant-134a. Initially, 8 kg of the refrigerant is in the liquid form, and the temperature is 8°C. Now heat is transferred slowly to the refrigerant until the piston hits the stops, at which point the volume is 400 L. Determine (a) The temperature when the piston first hits the stops and (b) The work done during this expansion process. Also, show the process on a P-V diagram.
fast please 20 min
0.05 m3 of saturated vapor refrigerant-134a is contained in an insulated piston- cylinder device at 2500 kPa pressure. The refrigerant is now allowed to expand in a reversible manner until the pressure drops to 400 kPa. Determine: (a) the final temperature in the cylinder, and (b) the work done by the refrigerant. . Paragraph BIE
Refrigerant 134a in a cylinder-piston assembly is at 240 kPa with a quality 15% and then as a result of heat added the quality increases to 45%, what is the change in volume per one unit of mass (m3/kg)? The piston is assumed to move freely but it is sealed tight that does not allow mass exchange. Refrigerant 134a in a cylinder-piston assembly is at 240 kPa with a quality 15% and then as a result of heat added the...
QUESTION 3 A 0.25m of saturated liquid refrigerant-134a at 80°C is contained in frictionless insulated piston-cylinder device as shown in Figure Q2(b). A paddle-wheel is placed inside the cylinder chamber to stir the refrigerant-134a and the paddle wheel transfer a total work of 245 kJ to the fluid. Moreover, a 440 V and 9 amp of resistor is also placed inside the cylinder chamber to heat the refrigerant-134a. With the aid of a P-V diagram, determine the time taken for...
