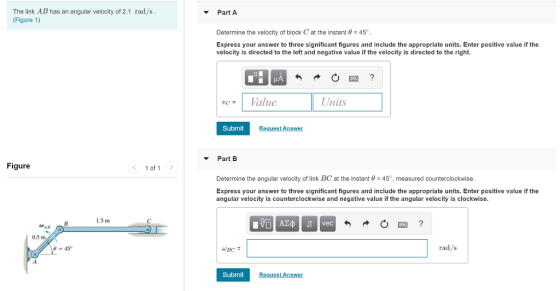

The link AB has an angular velocity of 2.1 rad/s (Figure 1) Part A Determine the...
The angular velocity of link AB is WAB = 3 rad/s. (Figure 1) Figure < 1...
The angular velocity of link AB is WAB = 3 rad/s. (Figure 1) Figure < 1 of 1 2 m Determine the velocity of block C at the instant 0 = 45° and 0 = 30° Express your answer to three significant figures and include the appropriate units. Enter positive value if the velocity is directed to the right and negative value if the velocity is directed to the left. μΑ ] ? Value Vc Units Part B Determine the...
Problem 16.89 . Part A lf link CD has an angular velocity ofwCD-7 rad/s , detemine...
Problem 16.89 . Part A lf link CD has an angular velocity ofwCD-7 rad/s , detemine the velocity of point E on link BC at the instant θ = 42".(Figure 1) Enter the r and y components of the velocity separated by a comma. vec mis Submit Request Answer Figure 1 af 1 ▼ Part B Determine the angular velocity of link AB at the instant θ = 42 Express your answer with the appropriate units. Assume the counterclockwise rotation...
Do part A and B please Part A The angular velocity of link AB is wAB...
Do part A and B please
Part A The angular velocity of link AB is wAB = 4.4 rad/s (Figure 1) Determine the magnitude of the velocity of the block at C at the instant 45° and ф-300 Express your answer to three significant figures and include the appropriate units. uValue Units Submit Request Answer Figure 1 of 1 Part B Determine the magnitude of the angular velocity of the connecting link CB at the instant@-45° and ф-30° Express your...
Bar AB has an angular velocity ω AB = 6 rad/s Part A Determine the velocity of the slider block C at the instant shown. Express your answer to three significant figures and include the appropriate un...
Bar AB has an angular velocity ω AB = 6 rad/s
Part A
Determine the velocity of the slider block C at the
instant shown.
Express your answer to three significant figures and include the
appropriate units. Enter positive value if the velocity is directed
to the left and negative value if the velocity is directed to the
right.
200 mm 500 mm θ = 45° 30°
200 mm 500 mm θ = 45° 30°
The two 4- lb rods EF and HI are fixed (welded) to the link AC at E . At the instant θ = 30 ∘ link AB has an angular velocity ω = 5 rad/s and an angular acceleration a = 8 rad/ s 2 as shown in (Figure...
The two 4- lb rods EF and HI are fixed (welded) to the link AC
at E . At the instant θ = 30 ∘ link AB has an angular velocity ω =
5 rad/s and an angular acceleration a = 8 rad/ s 2 as shown in
(Figure 1).
Part A
Determine the internal axial force Ex which
the bar AC exerts on FE at
E using scalar notation.
Express your answer to three significant figures and include the...
II Review Rod AB is rotating with an angular velocity of = 54 rad/s. (Figure 1)...
II Review Rod AB is rotating with an angular velocity of = 54 rad/s. (Figure 1) WAB Part A Figure Determine the velocity of the slider C at the instant 0 = 60° and Ⓡ = 45°. Express your answer to three significant figures and include the appropriate units. Enter positive value if the velocity is directed upward and negative value if the velocity is directed downward. < 1 of 1 ► View Available Hint(s) 300 mm B 600 mm...
Link AB is rotating at w AB = 5.8 rad/s. (Figure 1) Part A Determine the...
Link AB is rotating at w AB = 5.8 rad/s. (Figure 1) Part A Determine the velocity of the block at the instant = 60°. Figure < 1 of 1 > Express your answer to three significant figures and include the appropriate units. 125 mm ? "! Å Value O 2 Units SB vc = Submit Request Answer WAB 300 mm Provide Feedback
Bar AB has the angular motions shown. Suppose that WAB = 5 rad/s and a AB...
Bar AB has the angular motions shown. Suppose that WAB = 5 rad/s and a AB = 6.6 rad/s2. (Figure 1) Part A Determine the velocity of the slider block C at this instant Express your answer to three significant figures and include the appropriate units. ? (vc. = Value Units Submit Request Answer Part B Figure < 1 of 1 Determine the acceleration of the slider block C at this instant. Express your answer to three significant figures and...
on link BC at the instant shown. Determine the velocity of point Express your answer to...
on link BC at the instant shown. Determine the velocity of point Express your answer to three significant figures and include the appropriate units. Link CD has an angular velocity of wCD (Figure 1) 6 rad/s. C. 7 Value Units UB = Figure 1 of 1 Submit Request Answern Part B 0.3 m 0.3 m Determine the angular velocity link AB at the instant shown. Express your answer to three significant figures and include the appropriate units. 0.6 m CD=...
At the instant shown, 0-60", and rod AB is subjected to a deceleration 4-18 m/s2 when...
At the instant shown, 0-60", and rod AB is subjected to a deceleration 4-18 m/s2 when the velocity v = 11 m/s Figure 1) Part A Determine the angular velocity of link CD at this instant measured counterolackwise. Express your answer using three significant figures. Enter positive value if the angular velocity is counterclockwise and negative value if the angular velocity is clockwise. rad/s Submit Figure < 1of1 > Part B Determine the angular acceleration of link CD at this...
The angular velocity of link AB is WAB = 3 rad/s. (Figure 1) Figure < 1 of 1 2 m Determine the velocity of block C at the instant 0 = 45° and 0 = 30° Express your answer to three significant figures and include the appropriate units. Enter positive value if the velocity is directed to the right and negative value if the velocity is directed to the left. μΑ ] ? Value Vc Units Part B Determine the...
Problem 16.89 . Part A lf link CD has an angular velocity ofwCD-7 rad/s , detemine the velocity of point E on link BC at the instant θ = 42".(Figure 1) Enter the r and y components of the velocity separated by a comma. vec mis Submit Request Answer Figure 1 af 1 ▼ Part B Determine the angular velocity of link AB at the instant θ = 42 Express your answer with the appropriate units. Assume the counterclockwise rotation...
Do part A and B please
Part A The angular velocity of link AB is wAB = 4.4 rad/s (Figure 1) Determine the magnitude of the velocity of the block at C at the instant 45° and ф-300 Express your answer to three significant figures and include the appropriate units. uValue Units Submit Request Answer Figure 1 of 1 Part B Determine the magnitude of the angular velocity of the connecting link CB at the instant@-45° and ф-30° Express your...
Bar AB has an angular velocity ω AB = 6 rad/s
Part A
Determine the velocity of the slider block C at the
instant shown.
Express your answer to three significant figures and include the
appropriate units. Enter positive value if the velocity is directed
to the left and negative value if the velocity is directed to the
right.
200 mm 500 mm θ = 45° 30°
200 mm 500 mm θ = 45° 30°
The two 4- lb rods EF and HI are fixed (welded) to the link AC
at E . At the instant θ = 30 ∘ link AB has an angular velocity ω =
5 rad/s and an angular acceleration a = 8 rad/ s 2 as shown in
(Figure 1).
Part A
Determine the internal axial force Ex which
the bar AC exerts on FE at
E using scalar notation.
Express your answer to three significant figures and include the...
II Review Rod AB is rotating with an angular velocity of = 54 rad/s. (Figure 1) WAB Part A Figure Determine the velocity of the slider C at the instant 0 = 60° and Ⓡ = 45°. Express your answer to three significant figures and include the appropriate units. Enter positive value if the velocity is directed upward and negative value if the velocity is directed downward. < 1 of 1 ► View Available Hint(s) 300 mm B 600 mm...
Link AB is rotating at w AB = 5.8 rad/s. (Figure 1) Part A Determine the velocity of the block at the instant = 60°. Figure < 1 of 1 > Express your answer to three significant figures and include the appropriate units. 125 mm ? "! Å Value O 2 Units SB vc = Submit Request Answer WAB 300 mm Provide Feedback
Bar AB has the angular motions shown. Suppose that WAB = 5 rad/s and a AB = 6.6 rad/s2. (Figure 1) Part A Determine the velocity of the slider block C at this instant Express your answer to three significant figures and include the appropriate units. ? (vc. = Value Units Submit Request Answer Part B Figure < 1 of 1 Determine the acceleration of the slider block C at this instant. Express your answer to three significant figures and...
on link BC at the instant shown. Determine the velocity of point Express your answer to three significant figures and include the appropriate units. Link CD has an angular velocity of wCD (Figure 1) 6 rad/s. C. 7 Value Units UB = Figure 1 of 1 Submit Request Answern Part B 0.3 m 0.3 m Determine the angular velocity link AB at the instant shown. Express your answer to three significant figures and include the appropriate units. 0.6 m CD=...
At the instant shown, 0-60", and rod AB is subjected to a deceleration 4-18 m/s2 when the velocity v = 11 m/s Figure 1) Part A Determine the angular velocity of link CD at this instant measured counterolackwise. Express your answer using three significant figures. Enter positive value if the angular velocity is counterclockwise and negative value if the angular velocity is clockwise. rad/s Submit Figure < 1of1 > Part B Determine the angular acceleration of link CD at this...
