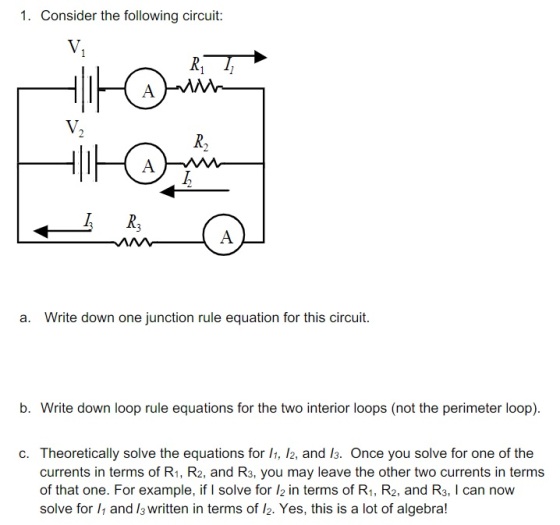

Consider the Circuit
1a.) Write down one junction rule equation for this circuit. 1b.) Write down loop rule equations for the two interior loops (not the perimeter loop). 1c.) Theoretically solve the equations for I1, I2, and I3

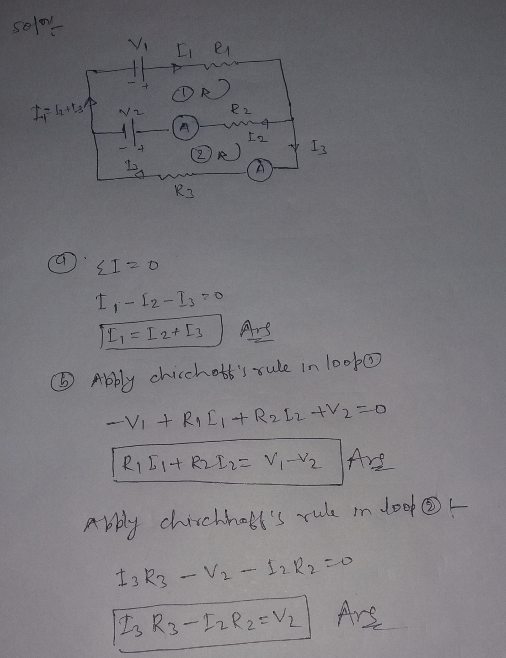

Homework Answers
Theory: Junction rule: Loop rule: Procedure: 1. Consider the following circuit: Ri 11 a. Write down...
Theory: Junction rule: Loop rule: Procedure: 1. Consider the following circuit: Ri 11 a. Write down one junction rule equation for this circuit. 1.+13=I b. Write down loop rule equations for the two interior loops (not the perimeter loop). RI+RI=V -V2 -R-I+R;13= V2 c. Solve the equations for 11, 12, and 13. Once you have your equations, show them to your instructor for approval before continuing to the rest of the lab.
