a. What is the equivalent capacitance of this circuit? Express your answer in μF.

Question

Question

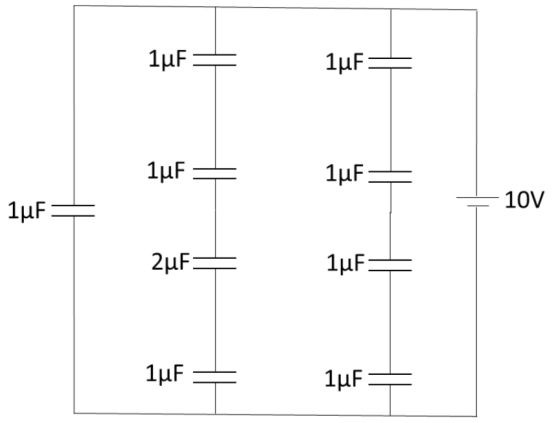

2. Consider the following circuit.

b. What is the charge on the 2 uF capacitor? Express your answer in μC.

c. What is the potential (i.e. voltage) across the 2 μF capacitor? Express your answer in Volts.

engineering Electrical-Engineering

Answer 1

✔ Recommended Answer

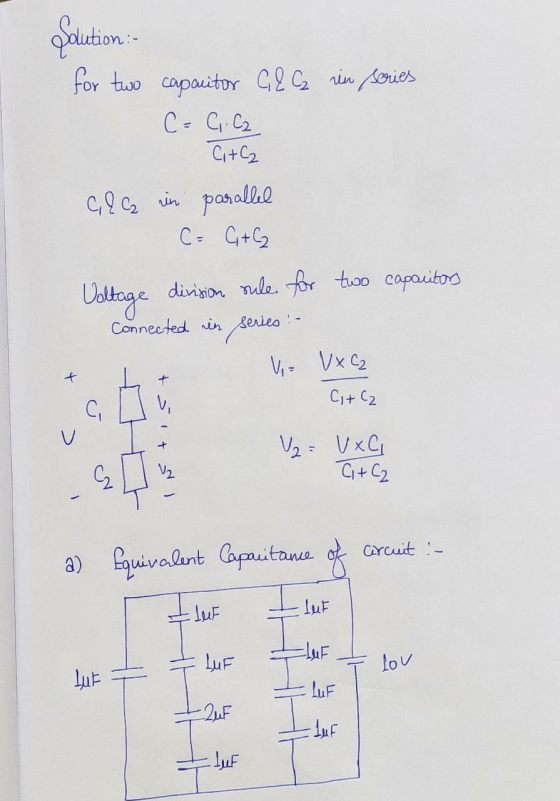

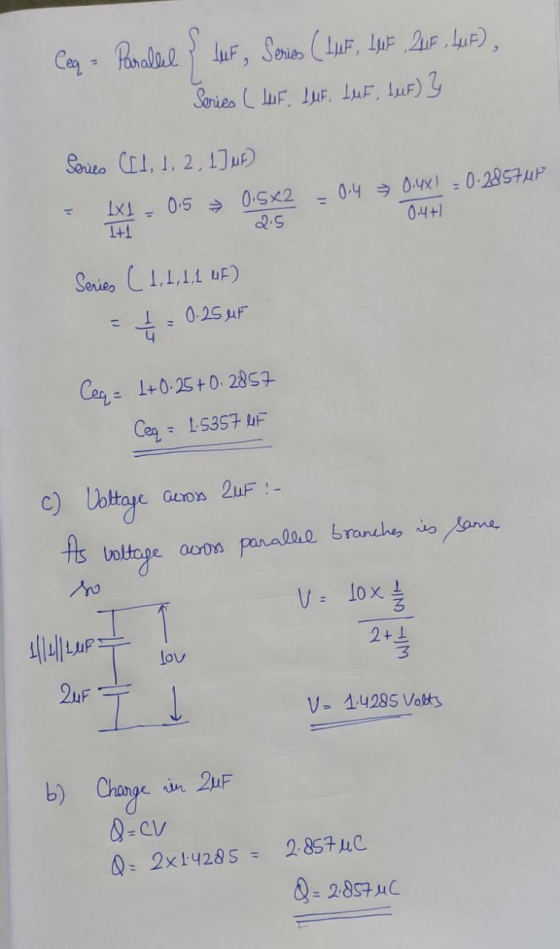

Answer #1

Answer 2
