# C1=0.1μFandC2=0.1μF solve for V1,V2,V3,V4 V1 R1 1.IK V2 R3 1.7K V3 RS 3.0K R6 5.7K VSI...

C1=0.1μFandC2=0.1μF

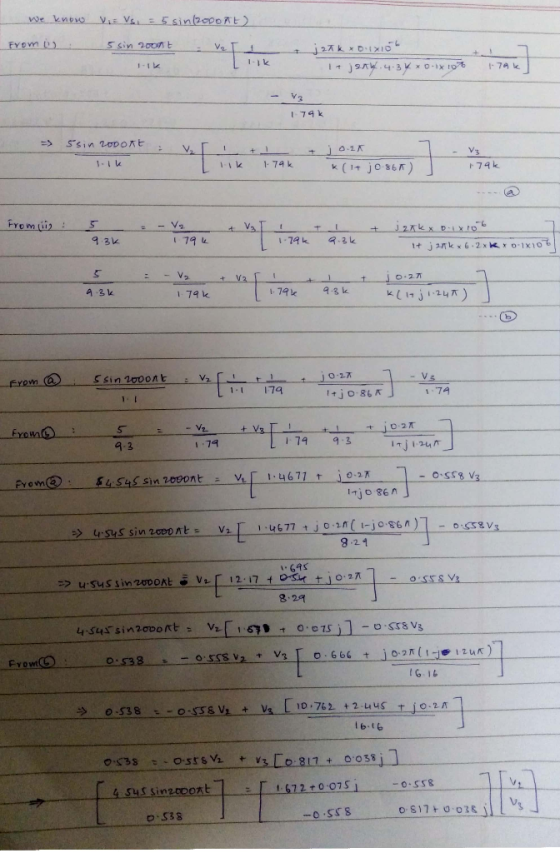

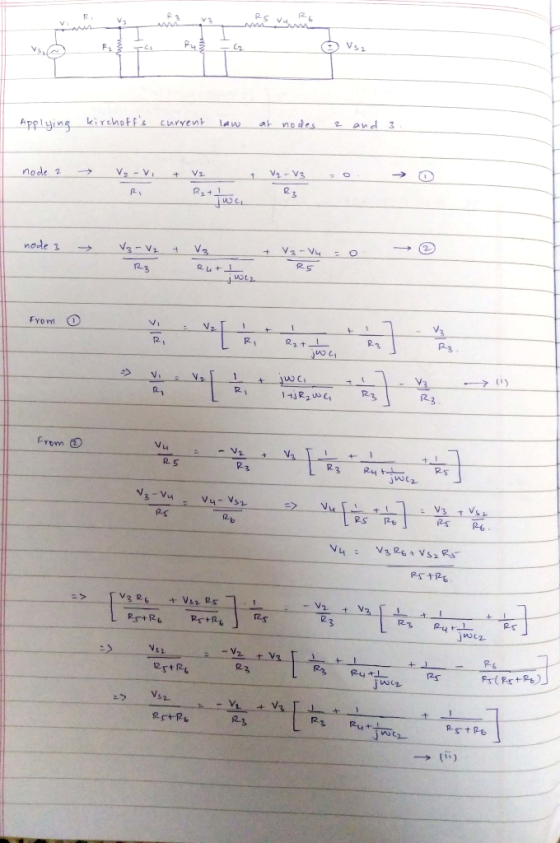

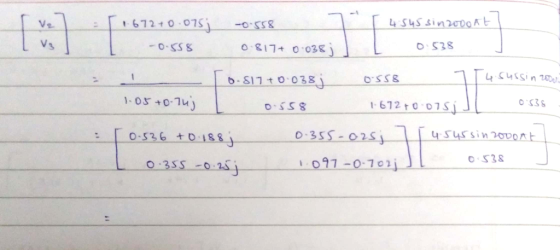

solve for V1,V2,V3,V4

V1 R1 1.IK V2 R3 1.7K V3 RS 3.0K R6 5.7K VSI 10 Vpp 1 KHz sine V4. Im1 Im2 Im3 5V C2
