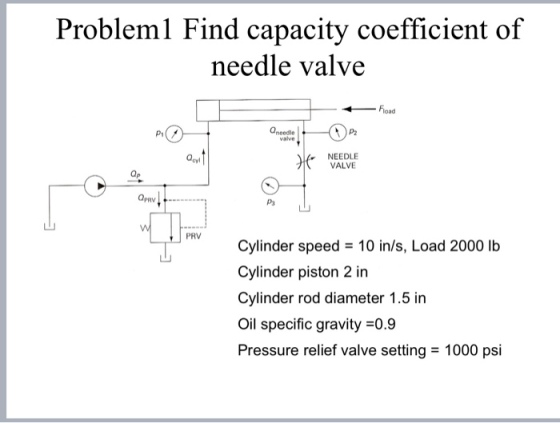

Problem1 Find capacity coefficient of needle valve load Oneedle valve P2 Qayl NEEDLE VALVE Op Qpv Ps PRV cylinder speed = 10 in/s, Load 2000 lb Cylinder piston 2 in Cylinder rod diameter 1.5 in Oil specific gravity -0.9 Pressure relief valve setting = 1000 psi
engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

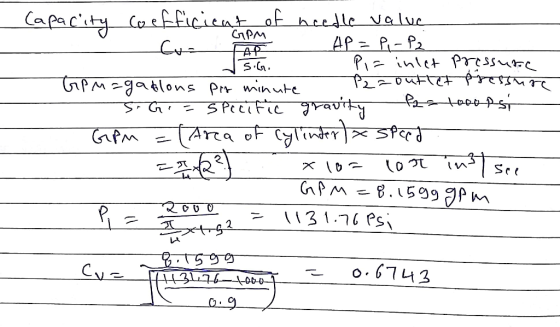

Answer #1

o-6743

0 0
Add a comment
Know the answer?
Add Answer to:
Problem1 Find capacity coefficient of needle valve load Oneedle valve P2 Qayl NEEDLE VALVE Op Qpv...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • 2. For the meter-in circuit shown below, the capacity coefficient of the flow control valve Cv...

    2. For the meter-in circuit shown below, the capacity coefficient of the flow control valve Cv 1.5 gpm/psi, cylinder piston diameter - 4 in, cylinder load 10,000 lbr, SG the pressure relief valve setting is 1000 psi (Hint: PRV setting pi). Determine the cylinder speed (in/s) when the valve is actuated and the cylinder is extending. (Assume ps-0) (6 pts) G of oil 0.9 and 01 P2 P3 r Foad OpRv PRV For the problem above, keeping everything the same,...
