from the book principle of helicopter aerodynamics already provided the needed iteration is at part 2.9:...

Question

Question

A helicopter with a gross weight of 3,000 lb (1,363.6 kg), a main rotor radius of 13.2 ft (4.0 m), and a rotor tip speed of 6

For the helicopter in the previous question, the tail rotor radius is 2.3 ft (0.701 m) and the tail rotor is located 15.3 ft

from the book principle of helicopter aerodynamics

already provided the needed iteration is at part 2.9:

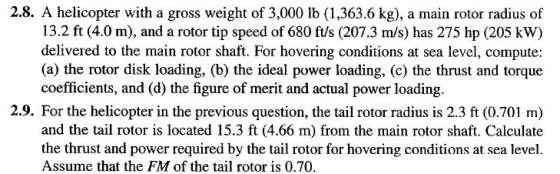

2.8. A helicopter with a gross weight of 3,000 lb (1,363.6 kg), a main rotor radius of 13.2 ft (4.0 m), and a rotor tip speed

engineering Mechanical-Engineering

Answer 1

Answer #1

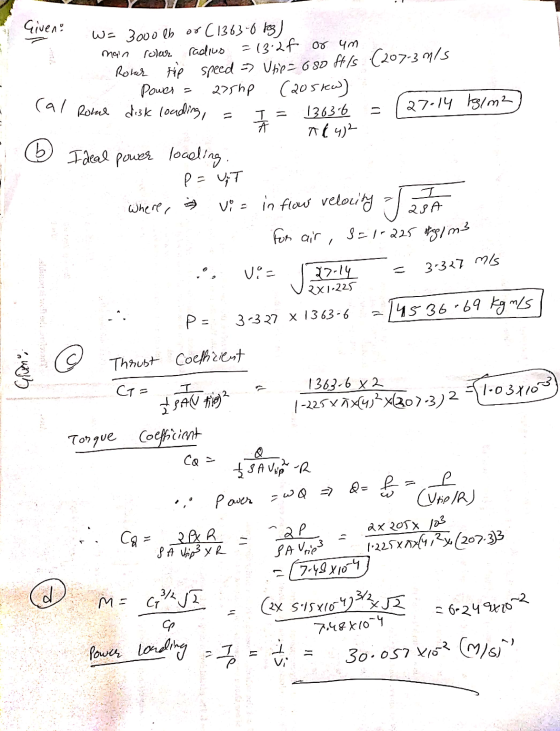

Given: mon Cal Rome disk loading, W=3000 lb or -(1363-6 kg) rolar radius = 13:2f og um Rover the speed = Urip = 680 Hils (207

Answer 2
