A cantilever beam with a 1-in-diameter round cross section is loaded at the tip with a...
A cantilever beam with a l-in-diameter round cross section is loaded at the tip with a...

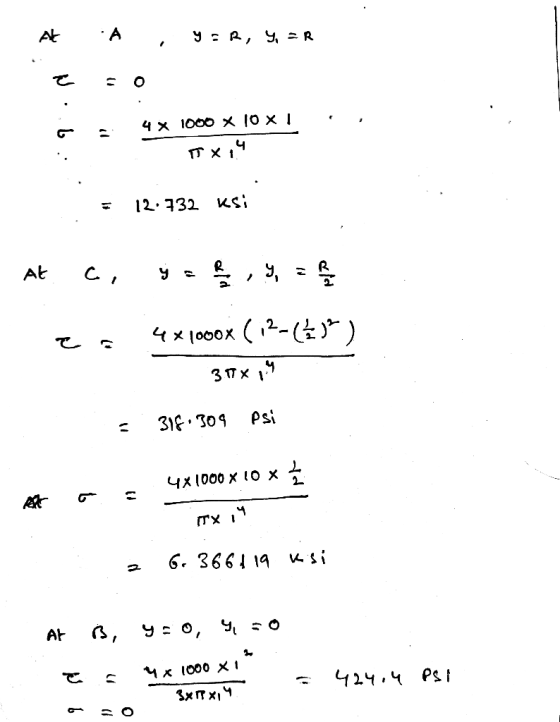

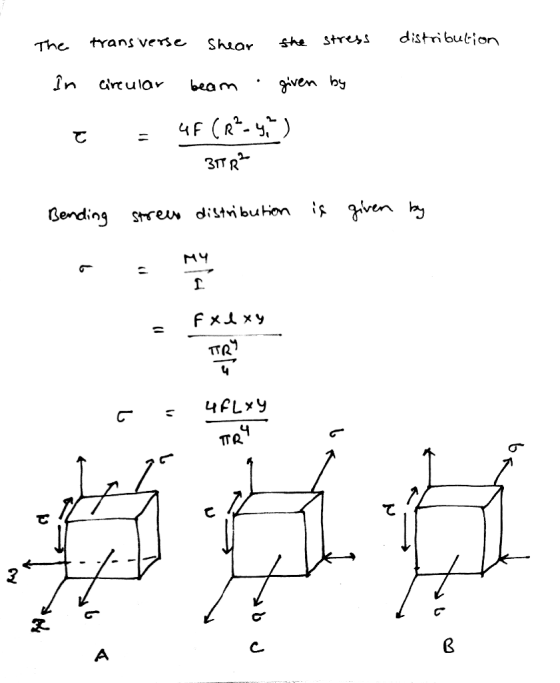

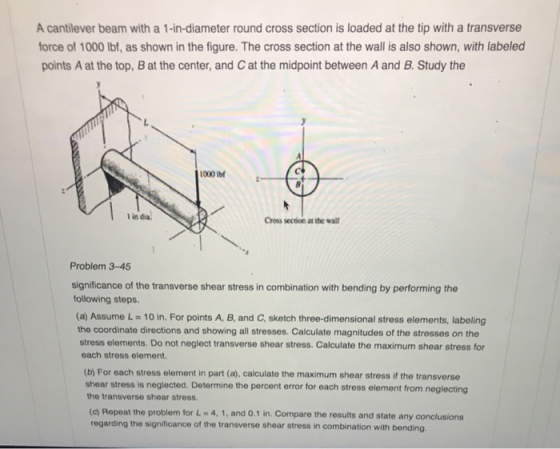

A cantilever beam with a l-in-diameter round cross section is loaded at the tip with a transverse force of 1,000 lbf, as shown in the figure. The cross section at the wall is alsa shown, with labeled points.A at the top, B at the center, and C at the midpoint between A and B. 1,000 lbf tm 1 in dia. Cross section at the wall References
The cantilevered bar in the figure is made from a ductilematerial and is statically loaded...
The cantilevered bar in the figure is made from a ductile
material and is statically loaded with Fy= 250 lbf and
Fx = Fz= 0. Analyze the stress situation in
the small diameter at the shoulder at A by obtaining the following
information.(a) Determine the precise location of the critical stress
element at the cross section at A.(b) Sketch the critical stress element and determine magnitudes
and directions for all stresses acting on it. (Transverse shear may
be neglected if...
The cantilevered bar in the figure is made from a ductile material and is statically loaded...
The cantilevered bar in the figure is made from a ductile material and is statically loaded F, = 250 lbf and at A by obtaining the following information. with F, = Fz = 0, Analyze the stress situation in the small diameter at the shoulder (a) Determine the precise location of the critical stress element at the cross section at A. (b) S ketch the critical stress element and determine magnitudes and directions for all stresses acting on it. (Transverse...
The cantilevered bar in the figure is made from a ductile material and is statically loaded with Fy=250 lbf and Fx=Fz=0.
The cantilevered bar in the figure is made from a ductile material and is statically loaded with Fy=250 lbf and Fx=Fz=0. Analyze the stress situation in the small diameter at the shoulder at A by obtaining the following information.(a) Determine the precise location of the critical stress
element at the cross section at A.(b) Sketch the critical stress element and determine magnitudes
and directions for all stresses acting on it. (Transverse shear may be neglected if you can
justify this...
I-beam loaded as a cantilever beam 2. An I-beam is loaded as a cantilever beam as shown below. The cross-section of the...
I-beam loaded as a cantilever beam
2. An I-beam is loaded as a cantilever beam as shown below. The cross-section of the beam is also shown. Indicate on both illustrations, by circling and labeling, the location of the maximum tensile stress and the maximum compressive stress.
2. An I-beam is loaded as a cantilever beam as shown below. The cross-section of the beam is also shown. Indicate on both illustrations, by circling and labeling, the location of the maximum tensile...
2. A cantilever beam is loaded as shown in the following figure. 1) Draw the shear...
2. A cantilever beam is loaded as shown in the following figure. 1) Draw the shear force and bending moment diagrams 2) Calculate the maximum bending stress in the beam. S 3) Calculate themaximum transverse shear stress in the beam. 19 kN 3 kN/m NA 01 m 2 m 2 m 2 m
Repeat Problem 3 of HW 6 for a brittle material, requiring the inclusion of stress concentration in the fillet radius.
Repeat Problem 3 of HW 6 for a brittle material, requiring the inclusion of stress concentration in the fillet radius. The cantilevered bar in the figure is made from a ductile material and is statically loaded with Fy = 250 lbf and Fx = Fz = 0. Analyze the stress situation in the small diameter at the shoulder at A by obtaining the following information. (a) Determine the precise location of the critical stress element at the cross section at A. (b) Sketch...
3. A beam with a hollow circular cross section of outer diameter D and inner diameter...
3. A beam with a hollow circular cross section of outer diameter D and inner diameter d. The length Lis fixed at a wall. Consider the following loading conditions, all applied to the beam at the midpoint of length L. For each loading scheme state determine the magnitude of that stress in terms of the variables given in the problem). (5 points) i. ii. iii. iv. V. Normal stress due to axial load F Shear stress due to torque T...
4. The shown cantilever beam has a 4" x 3" rectangular cross section. It is loaded at its free end with a verti...
4. The shown cantilever beam has a 4" x 3" rectangular cross section. It is loaded at its free end with a vertical load of 400 lb (-y direction) and a horizontal load of 500 lb (+x direction), as shown in the figure. You are considering a cut 10 in away from the free end of the cantilever. In the cross section of the cut, point B resides at the side surface of the beam 1 in away from it...
Problem 1 For the loaded beam with the cross-section shown: A. Find the location of the neutral a...
Problem 1 For the loaded beam with the cross-section shown: A. Find the location of the neutral axis B. Compute the moment of inertia of the section around the neutral axis C. Locate the section of maximum moment then compute the maximum stress due to bending, fb D. Locate the section of maximum shear-compute the shear stress at the neutral axis 3.0 k 8" 1.5 k/ft 1.0 k/ft 2" 8 10 ft 6 ft 4 ft 2" Cross-Section
Problem 1...
A cantilever beam with a l-in-diameter round cross section is loaded at the tip with a transverse force of 1,000 lbf, as shown in the figure. The cross section at the wall is alsa shown, with labeled points.A at the top, B at the center, and C at the midpoint between A and B. 1,000 lbf tm 1 in dia. Cross section at the wall References
The cantilevered bar in the figure is made from a ductile
material and is statically loaded with Fy= 250 lbf and
Fx = Fz= 0. Analyze the stress situation in
the small diameter at the shoulder at A by obtaining the following
information.(a) Determine the precise location of the critical stress
element at the cross section at A.(b) Sketch the critical stress element and determine magnitudes
and directions for all stresses acting on it. (Transverse shear may
be neglected if...
The cantilevered bar in the figure is made from a ductile material and is statically loaded F, = 250 lbf and at A by obtaining the following information. with F, = Fz = 0, Analyze the stress situation in the small diameter at the shoulder (a) Determine the precise location of the critical stress element at the cross section at A. (b) S ketch the critical stress element and determine magnitudes and directions for all stresses acting on it. (Transverse...
I-beam loaded as a cantilever beam
2. An I-beam is loaded as a cantilever beam as shown below. The cross-section of the beam is also shown. Indicate on both illustrations, by circling and labeling, the location of the maximum tensile stress and the maximum compressive stress.
2. An I-beam is loaded as a cantilever beam as shown below. The cross-section of the beam is also shown. Indicate on both illustrations, by circling and labeling, the location of the maximum tensile...
2. A cantilever beam is loaded as shown in the following figure. 1) Draw the shear force and bending moment diagrams 2) Calculate the maximum bending stress in the beam. S 3) Calculate themaximum transverse shear stress in the beam. 19 kN 3 kN/m NA 01 m 2 m 2 m 2 m
3. A beam with a hollow circular cross section of outer diameter D and inner diameter d. The length Lis fixed at a wall. Consider the following loading conditions, all applied to the beam at the midpoint of length L. For each loading scheme state determine the magnitude of that stress in terms of the variables given in the problem). (5 points) i. ii. iii. iv. V. Normal stress due to axial load F Shear stress due to torque T...
4. The shown cantilever beam has a 4" x 3" rectangular cross section. It is loaded at its free end with a vertical load of 400 lb (-y direction) and a horizontal load of 500 lb (+x direction), as shown in the figure. You are considering a cut 10 in away from the free end of the cantilever. In the cross section of the cut, point B resides at the side surface of the beam 1 in away from it...
Problem 1 For the loaded beam with the cross-section shown: A. Find the location of the neutral axis B. Compute the moment of inertia of the section around the neutral axis C. Locate the section of maximum moment then compute the maximum stress due to bending, fb D. Locate the section of maximum shear-compute the shear stress at the neutral axis 3.0 k 8" 1.5 k/ft 1.0 k/ft 2" 8 10 ft 6 ft 4 ft 2" Cross-Section
Problem 1...
