Homework Answers
Add Answer to:

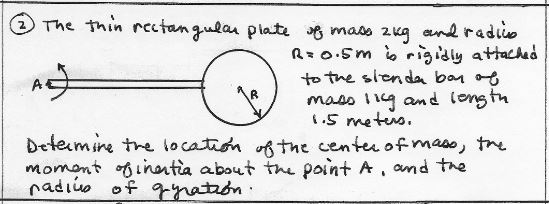

③ The thin rectangular plate of mass 2kg and radius R=0.5m is rigidly attached to the...
The sphere of mass M and radius R is rigidly attached to a thin rod of radius r
The sphere of mass M and radius R is rigidly attached to a thin rod of radius r that passes through the sphere at distance ½R from the center. A string wrapped around the rod pulls with tension T. (Figure 1) Part A Find an expression for the sphere's angular acceleration. The rod's moment of Inertia is negligible
The top edge of a thin rectangular metal plate with a mass of 2.80 kg is...
The top edge of a thin rectangular metal plate with a mass of 2.80 kg is attached to a horizontal rod parallel to the edge of the plate. The plate hangs from this rod and is free to rotate about it without friction. The vertical height of the plate is 45.0 cm. The plate is pulled to the right until it makes an angle of 28.0° from vertical and then released from rest. At the same time, a piece of...
A thin, SQUARE plate of mass M, side length D is rigidly and centrally connected to...
A thin, SQUARE plate of mass M, side length D is rigidly and
centrally connected to a small rigid rod on its top edge. The
plate-rod assembly is hung in a stream of air which blows
horizontally at a constant speed V, and the assembly pivots about a
hinge at the rod’s upper end, as shown. The plate-rod assembly is
well balanced, such that the plate’s top edge is always horizontal.
The whole arrangement is at sea level in standard...
044-10 Find the coordinates of the center of mass of the following uniform rectangular thin plate...
044-10 Find the coordinates of the center of mass of the following uniform rectangular thin plate which has a rectangular hole as shown in the figure. Use the lower left corner of the rectangle as the origin.
A thin disk of mass M and radius R has a hole of radius r removed....
A thin disk of mass M and radius R has a hole of radius r removed. If the center of the hole is at a distance r from the center of the disk. What is the New center of mass position?
(2) Consider a thin plate with constant density 8 covering the region below the...
(2) Consider a thin plate with constant density 8 covering the region below the curve y = above the z-axis, and left of the line r = 9. r, Set up integrals that will give the mass of the plate, the moment about the z-axis, and the moment about the y-axis. Calculate the center of mass of the plate.
A thin disk (radius R and mass M) attached to the top of a hollow cylinder (height & radius R and mass M) is wobbling while spinning. ←R-height-radius Derive an expression for the angular momentu...
A thin disk (radius R and mass M) attached to the top of a hollow cylinder (height & radius R and mass M) is wobbling while spinning. ←R-height-radius Derive an expression for the angular momentum L of the object lif its initial rotation vector ω ω|êut ω3ез. Assume that ω3 is large and nonzero, that ω! İs nonzero but small, and that ω2 is initially zero
A thin disk (radius R and mass M) attached to the top of a...
Problem 10.108 Part A consists of two slender rods AB and OC The which have a mass of 6 kg/m. The thin plate has a mass of 15 kg/m Suppose that a o0.5 m b"1.6 m,and r 0.1 m.(Figure 1) Determi...
Problem 10.108 Part A consists of two slender rods AB and OC The which have a mass of 6 kg/m. The thin plate has a mass of 15 kg/m Suppose that a o0.5 m b"1.6 m,and r 0.1 m.(Figure 1) Determine the location of the center of mass G of the pendulum. Express your answer to three significant figures and include the appropriate units Figure fj- 10.82? 1 of 1 You have already submited this answer Enter a new answer...
6. A rigid sculpture consists of a thin hoop of mass m and radius R and...
6. A rigid sculpture consists of a thin hoop of mass m and radius R and two thin rods each of mass m and length L = 2R. The sculpture can pivot around a horizontal axis in the plane of the hoop passing through its center. What is the sculpture's rotational inertia I about the rotation axis in terms of m and R. rotation axis Answer | 1 = 58mR2
Determine the mass moment of inertia of the thin plate about the axis perpendicular to the...
Determine the mass moment of inertia of the thin plate about the axis perpendicular to the page and passing through point O assuming the material has a mass per unit area of 20 kg/m2.
The top edge of a thin rectangular metal plate with a mass of 2.80 kg is attached to a horizontal rod parallel to the edge of the plate. The plate hangs from this rod and is free to rotate about it without friction. The vertical height of the plate is 45.0 cm. The plate is pulled to the right until it makes an angle of 28.0° from vertical and then released from rest. At the same time, a piece of...
A thin, SQUARE plate of mass M, side length D is rigidly and
centrally connected to a small rigid rod on its top edge. The
plate-rod assembly is hung in a stream of air which blows
horizontally at a constant speed V, and the assembly pivots about a
hinge at the rod’s upper end, as shown. The plate-rod assembly is
well balanced, such that the plate’s top edge is always horizontal.
The whole arrangement is at sea level in standard...
044-10 Find the coordinates of the center of mass of the following uniform rectangular thin plate which has a rectangular hole as shown in the figure. Use the lower left corner of the rectangle as the origin.
(2) Consider a thin plate with constant density 8 covering the region below the curve y = above the z-axis, and left of the line r = 9. r, Set up integrals that will give the mass of the plate, the moment about the z-axis, and the moment about the y-axis. Calculate the center of mass of the plate.
A thin disk (radius R and mass M) attached to the top of a hollow cylinder (height & radius R and mass M) is wobbling while spinning. ←R-height-radius Derive an expression for the angular momentum L of the object lif its initial rotation vector ω ω|êut ω3ез. Assume that ω3 is large and nonzero, that ω! İs nonzero but small, and that ω2 is initially zero
A thin disk (radius R and mass M) attached to the top of a...
Problem 10.108 Part A consists of two slender rods AB and OC The which have a mass of 6 kg/m. The thin plate has a mass of 15 kg/m Suppose that a o0.5 m b"1.6 m,and r 0.1 m.(Figure 1) Determine the location of the center of mass G of the pendulum. Express your answer to three significant figures and include the appropriate units Figure fj- 10.82? 1 of 1 You have already submited this answer Enter a new answer...
6. A rigid sculpture consists of a thin hoop of mass m and radius R and two thin rods each of mass m and length L = 2R. The sculpture can pivot around a horizontal axis in the plane of the hoop passing through its center. What is the sculpture's rotational inertia I about the rotation axis in terms of m and R. rotation axis Answer | 1 = 58mR2
Determine the mass moment of inertia of the thin plate about the axis perpendicular to the page and passing through point O assuming the material has a mass per unit area of 20 kg/m2.
